Product details

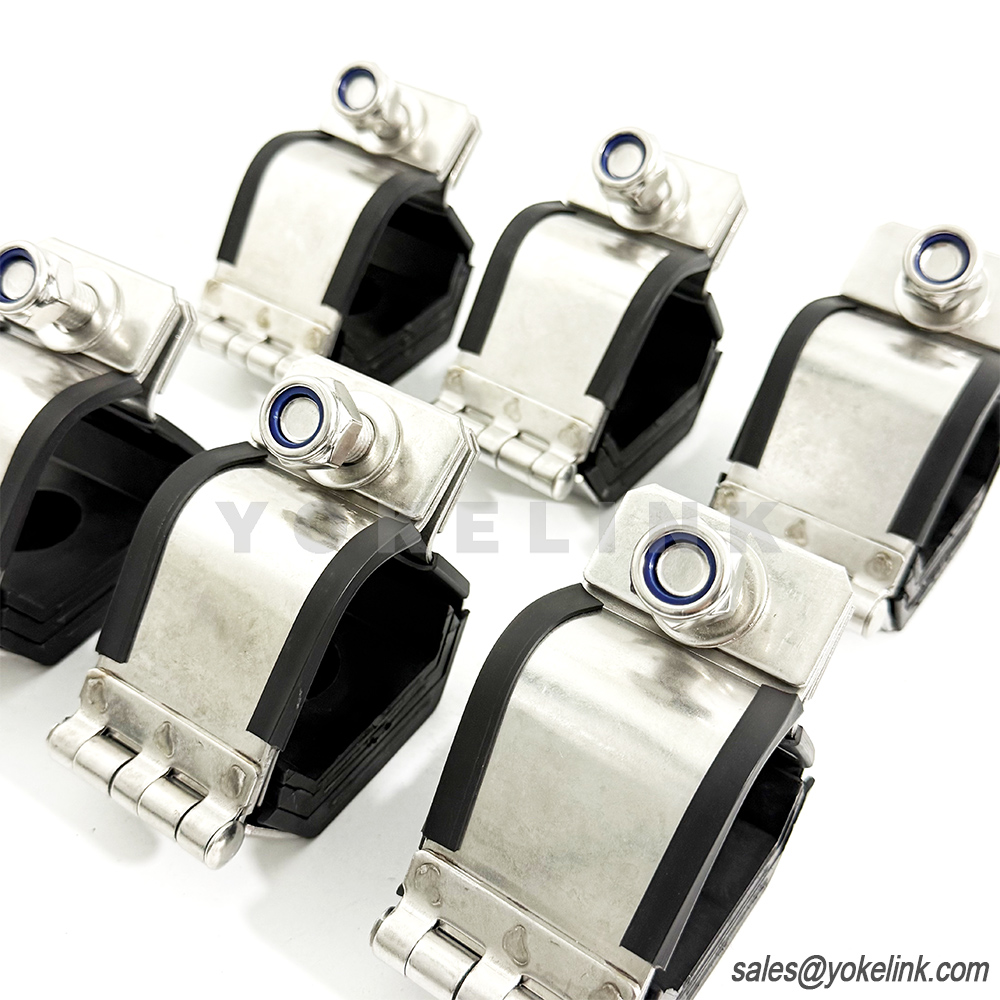

40-46mm Cable Electrical Fittings Trefoil Cable Cleats Stainless Steel IEC 61914 Certificated

Power Distribution Cable Cleats are designed to support and retain your cables within your cable tray system in every conditions. More importantly, Cable Cleats prevent the damage in short circuit condition. Unfortunately, short circuit always happens, and when it do, it's destructive and dangerous to the cables and cable system.

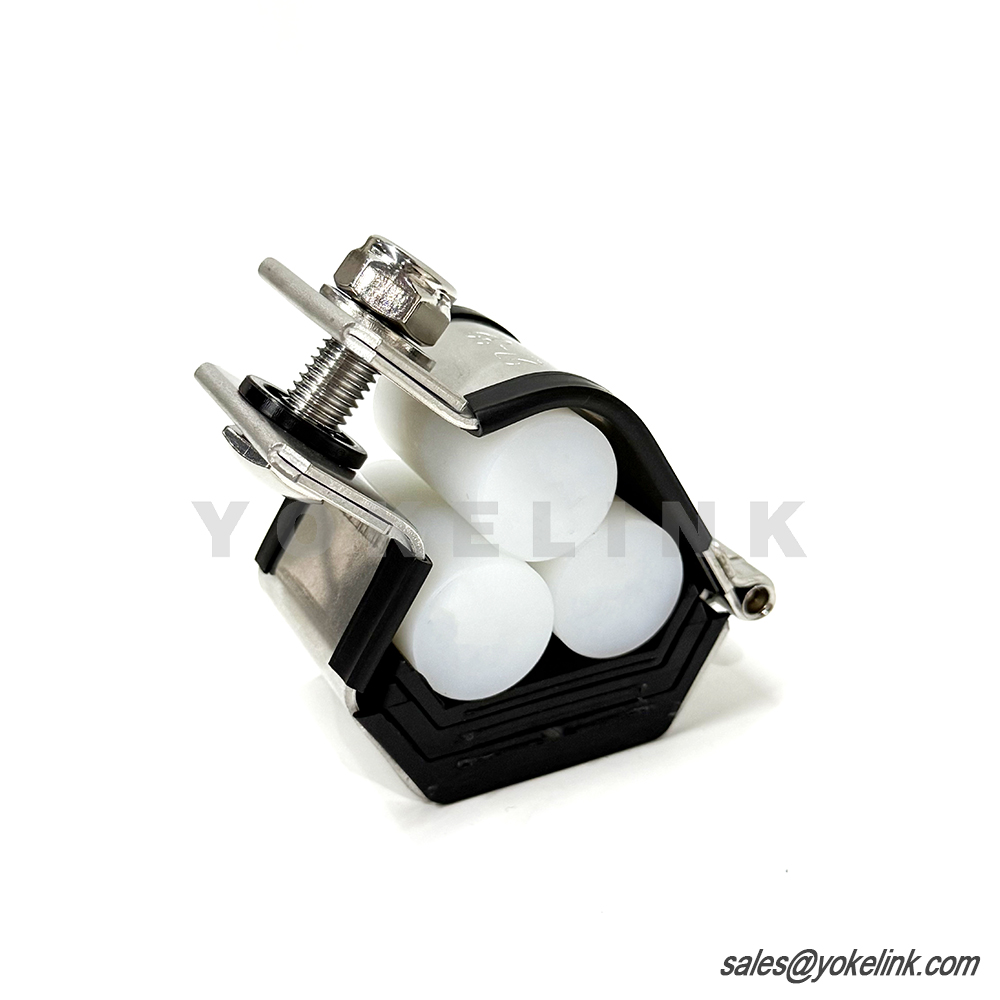

Trefoil Cable Cleat Features：

Mining cable clamp Tunnel cable cleats (13)

Cleat Material	Composite
Metallic Frame	50mm*2.1mm, marine grade, Non-magnetic 316L
Closure hardware	316L SS M8, M10 or M12 bolt and Nylon Lock nut
Integral Pad	Low Smoke, Low Fume, Halogen Free
Tools Required	Wrench
Mounting Bolt	Provided with the Cable Cleat

Stainless Steel Cable Cleats Specifications：

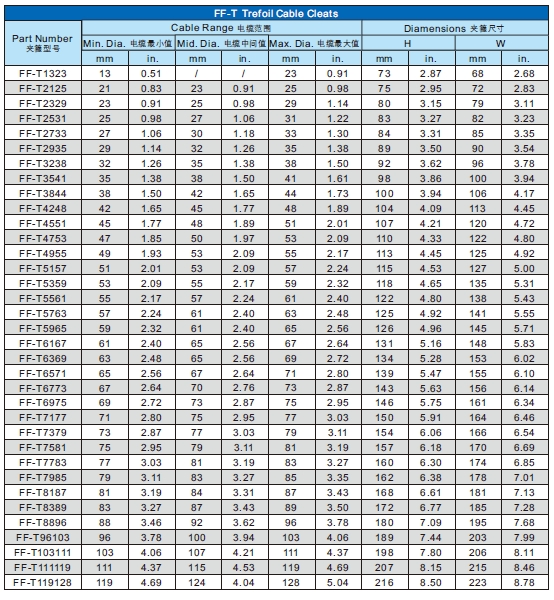

Trefoil cable cleat specification:

Single cable cleat specifications:

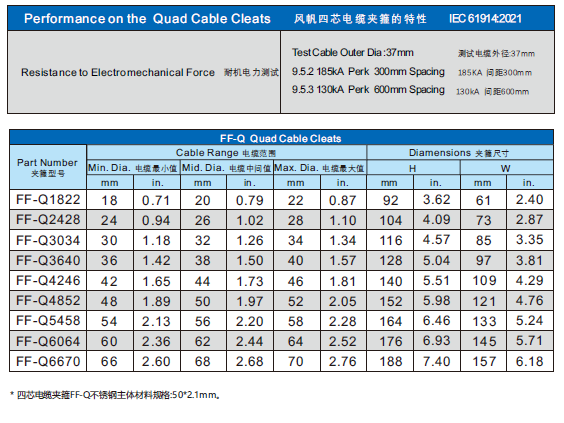

Quad Cable Cleat Specification:

Cleat Selection and How to Specify Cable Cleats?

Cable Arrangement – The cable arrangement/configuration will primarily dictate the type of cleat required. Cable arrangements for 3 phase installations utilizing single conductor cables are typically flat spaced, flat touching or trefoil. A parallel or flat arrangement of single core cables can be completed with a range of single or two-part cleats. Whereas a trefoil would require a trefoil type cleat.

Cable Type – The type of cable being used, Single or Multi-core, as well as its Voltage Levels and Construction Low Voltage (LV), Medium Voltage (MV) or High Voltage (HV) should be considered.

Cable Diameter – Knowing the overall diameter of the cable (measurement across the entire cross-section) is essential in ensuring the correct size of cleat is selected. It is also required to calculate the short circuit forces that the cleat may be subjected to; this can be used to determine correct cleat spacing.

Buy Cable Cleat from Yokelink

Yokelink cable cleats ensuring durability in harsh environments. Designed to secure and organize cables, they prevent movement and damage, making them ideal for industrial, commercial, and residential use. Available in sizes ranging from 10mm to 50mm and more, they accommodate various cable diameters. Easy to install and suitable for both indoor and outdoor applications, Yokelink cleats provide reliable, long-lasting cable management. Buy cable cleats from Yokelink for a secure, efficient solution!
