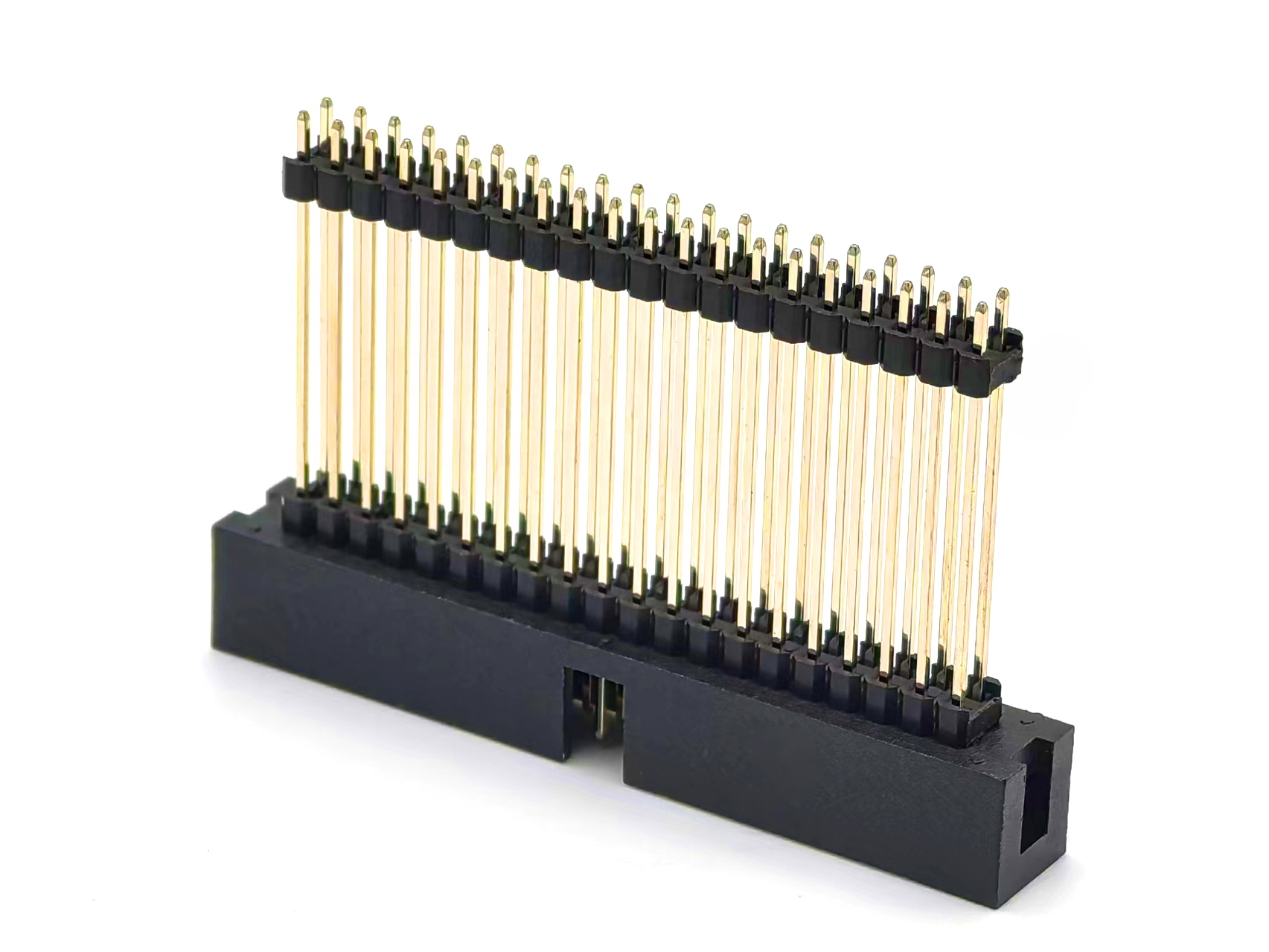

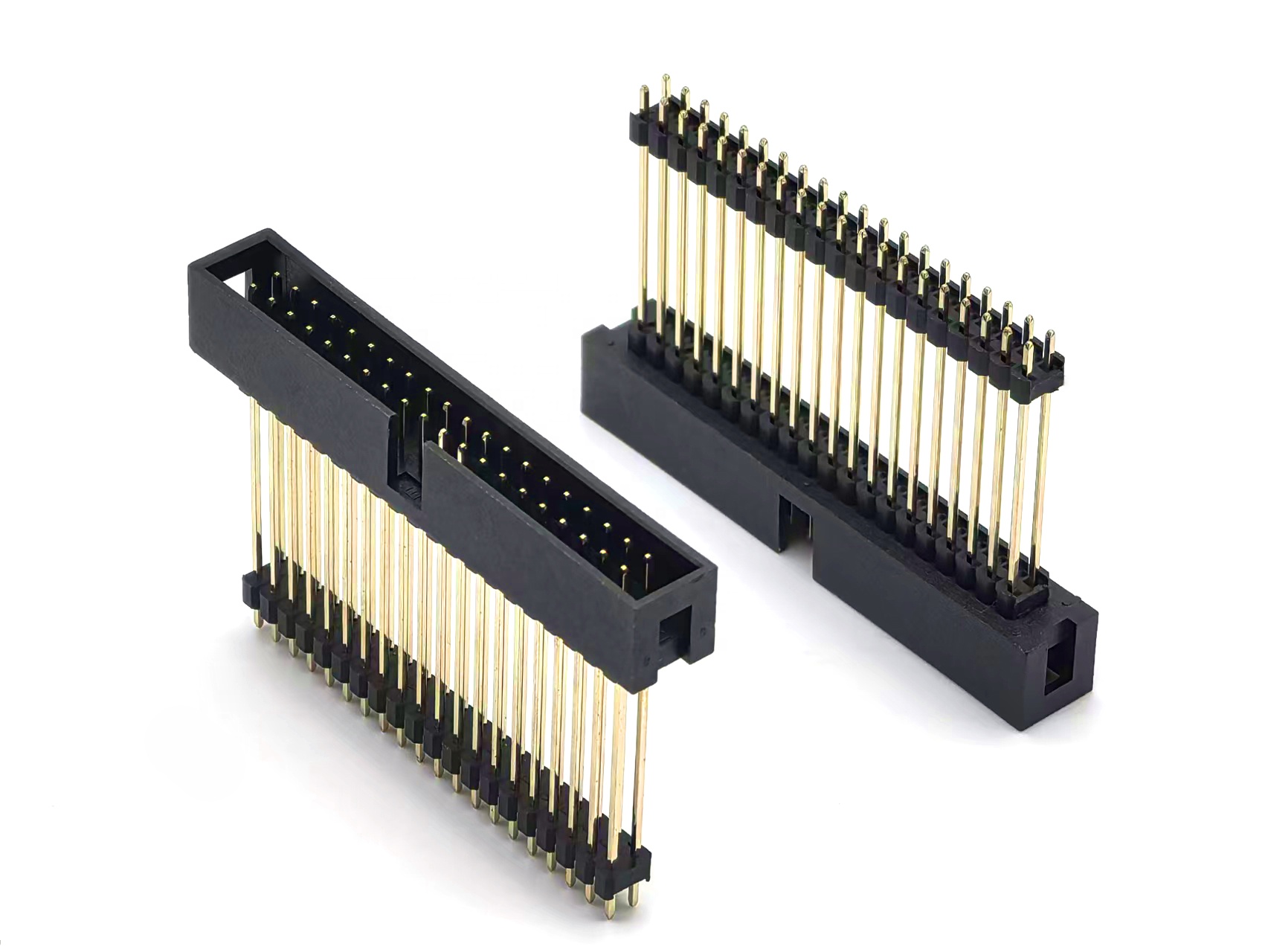

2.54mm Pitch Box Header Connector Straight Add Pin Header Plastic H13.8mm 2*20P

2 month ago

0 0

Shenzhen Yangzhan Electronics Co., Ltd.

 7 month year

Product details

Engineered for precision PCB integration,YZTECH’s 40-pin dual-row straight male box header delivers uncompromised performance in compact circuit designs.Featuring a DIN-standard 2.54mm pitch,this header connector ensures reliable electrical connections with its gold-plated brass contacts and robust PBT colloidal material.The straight-plug installation method optimizes space efficiency on crowded PCBs while maintaining a low-profile footprint.Rated for 3A current and 600V voltage,it operates flawlessly from -40°C to +105°C, catering to industrial automation,automotive systems,and consumer electronics.UL-certified for safety,this connector guarantees compliance with global regulatory standards, enhancing its suitability for international markets.Its rectangular,male-gendered design supports effortless mating with female headers,ensuring secure connections in high-vibration environments.Box packaging protects components during transportation and storage,aligning with automated assembly line requirements.

Constructed with high-grade PBT colloidal material,this 2.54mm box header connector exhibits superior heat resistance and mechanical durability, withstanding maximum soldering temperatures of 260°C for 10 seconds without deformation—critical for reflow soldering processes.Gold-plated brass contacts ensure low contact resistance and stable signal transmission,minimizing signal loss in high-speed data applications.The dual-row configuration with 20 pins per row enhances electrical isolation,reducing short-circuit risks in dense PCB layouts.PBT’s inherent flame-retardant properties align with UL94 V-0 standards,providing an added layer of safety in fire-sensitive applications.

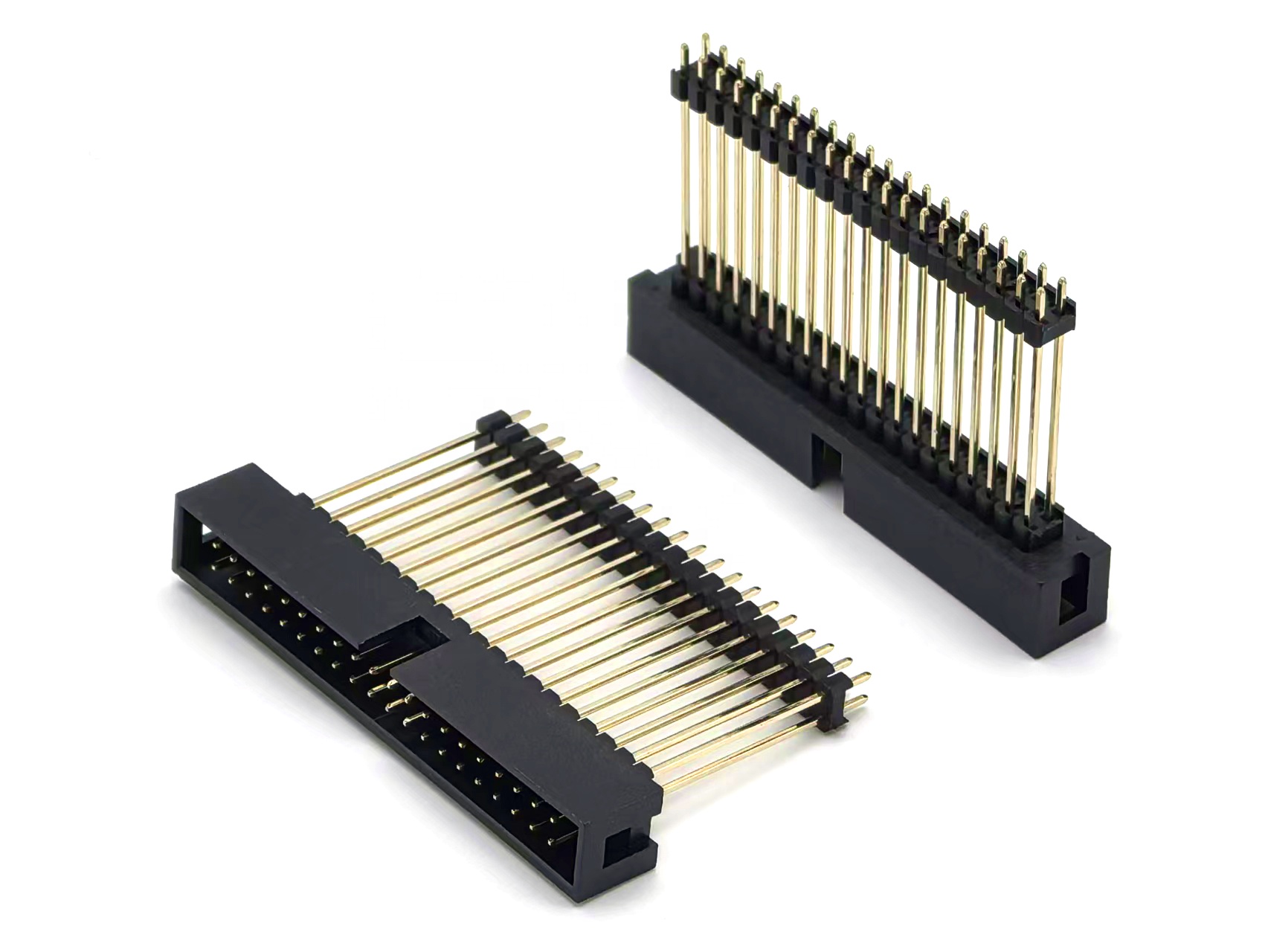

2.54mm Pitch Box Header Connector Straight Add Pin Header Plastic H13.8mm 2*20P
