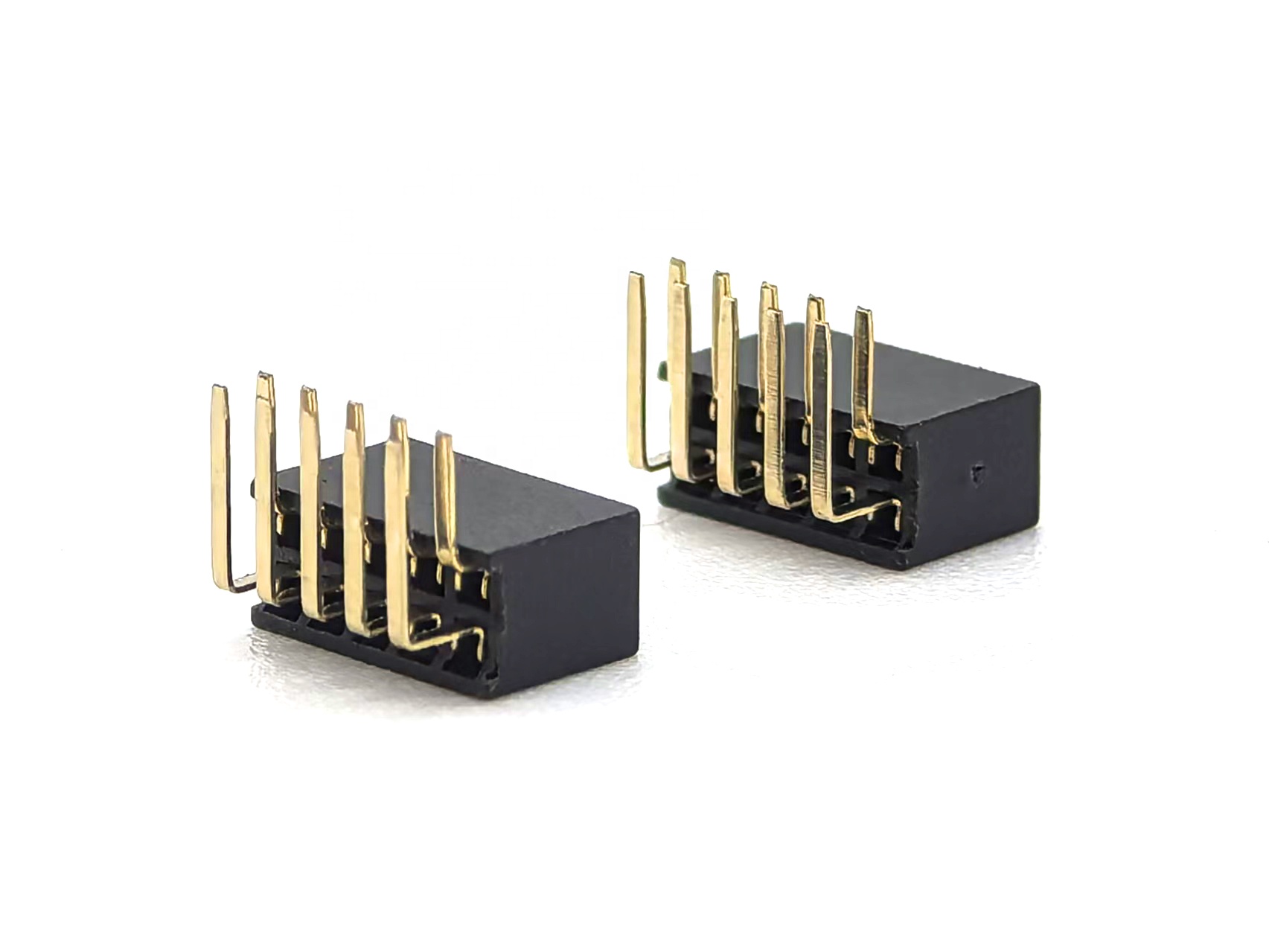

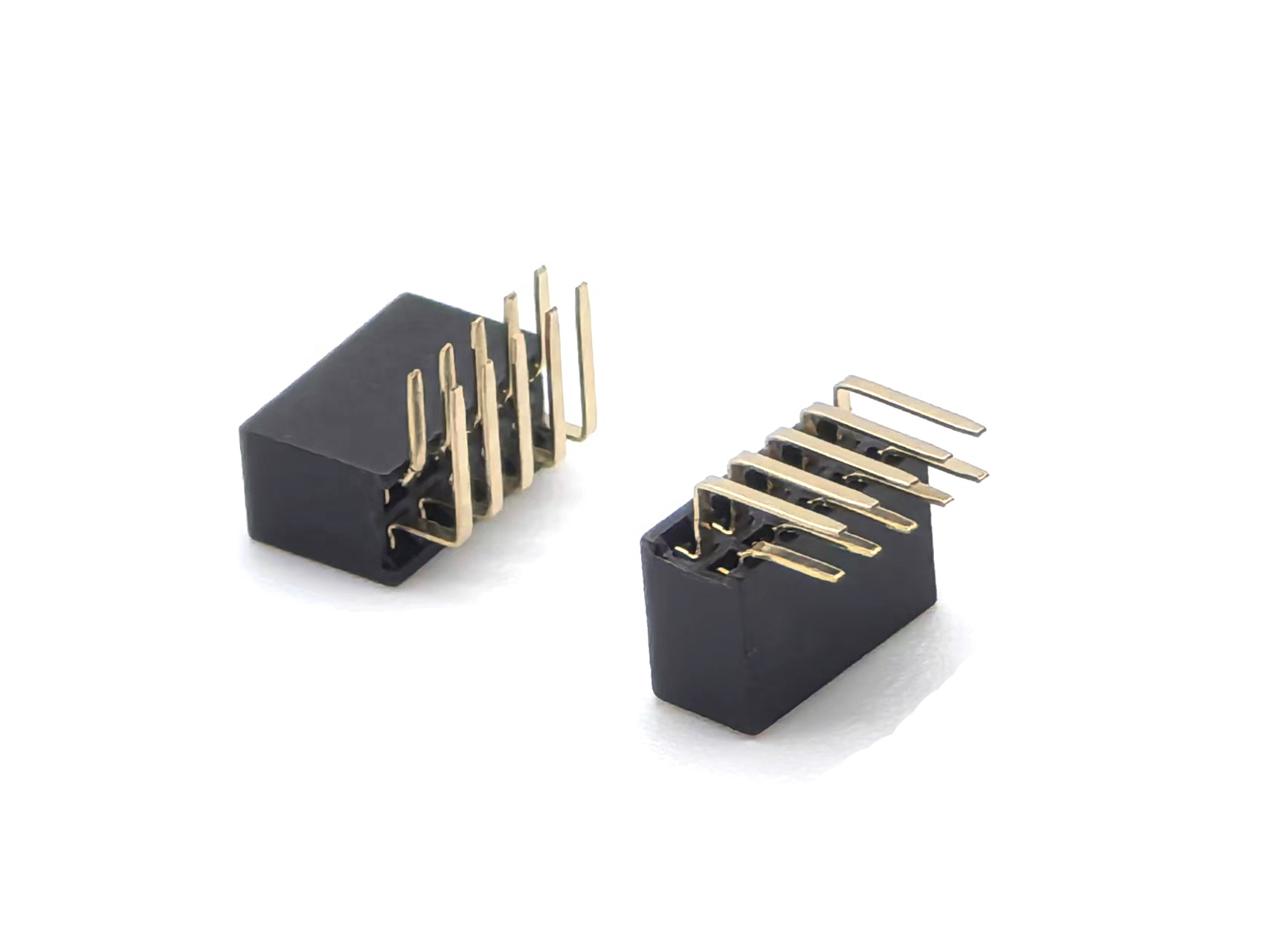

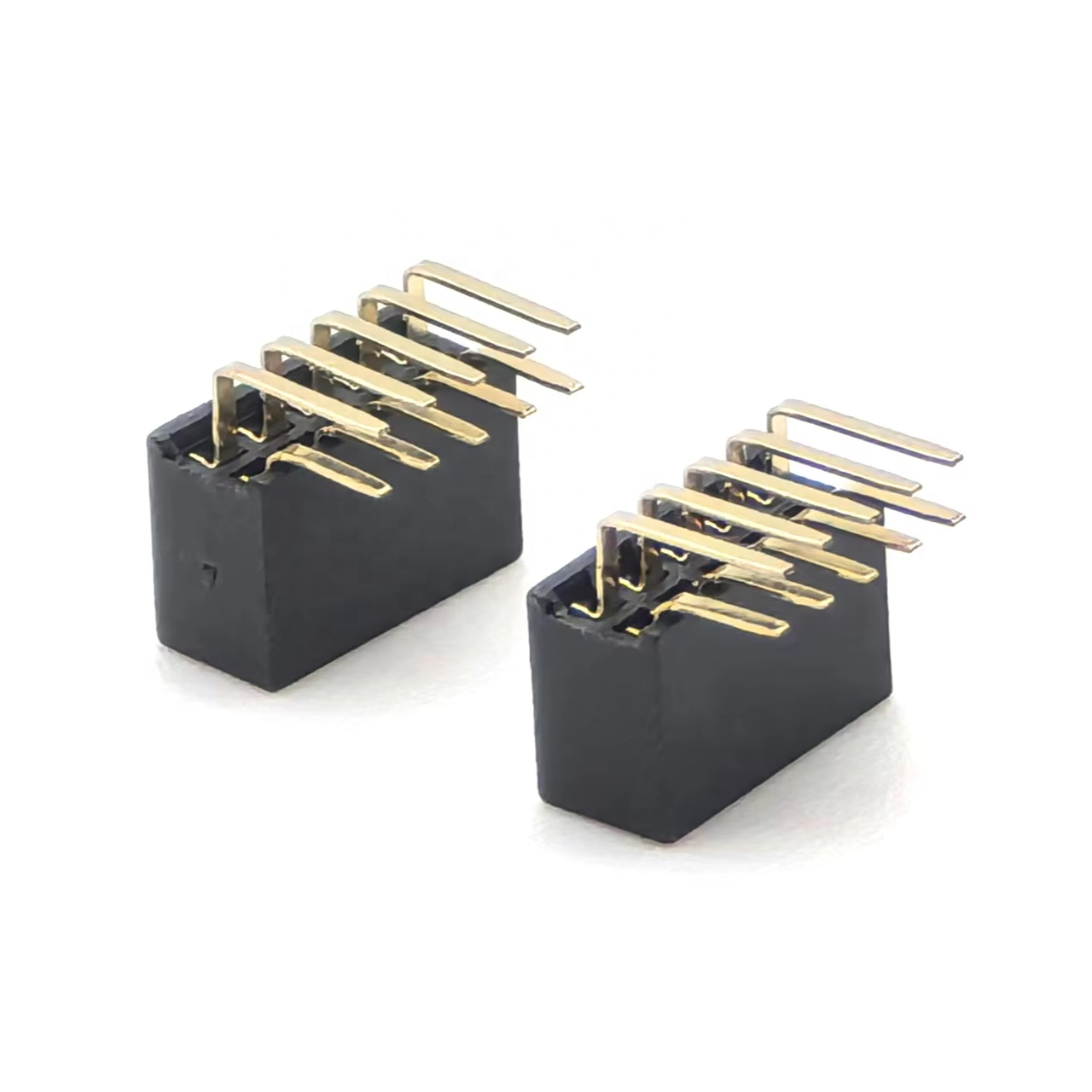

1.27mm Pitch Female Header Connector Dual Row Right Angle U-Type H4.3mm 2*5P

2 month ago

0 0

Shenzhen Yangzhan Electronics Co., Ltd.

 7 month year

Product details

YZTECH introduces a specialized 1.27mm Dual Row Female Header featuring a unique U-type contact design,engineered for high-density PCB applications requiring exceptional voltage performance.This 5-pin-per-row header connector utilizes a "bending plug" installation style, creating a secure,low-profile interface ideal for parallel board-to-board connections.Its sophisticated U-shaped socket geometry provides enhanced contact stability and insertion reliability.With a remarkable 1000V rated voltage and 1A current capacity,this component is perfectly suited for high-potential applications in telecommunications infrastructure, medical equipment,and industrial control systems where signal integrity and voltage isolation are critical.

The connector's advanced construction ensures superior electrical and mechanical performance.The U-type contacts are precision-formed from brass and finished with a durable gold plating,delivering low contact resistance,excellent corrosion resistance, and reliable mating performance through extensive connection cycles.The housing is manufactured from high-temperature PA6T thermoplastic,offering outstanding mechanical strength,dimensional stability, and thermal resistance capable of withstanding reflow soldering temperatures up to 260°C for 10 seconds.This robust material combination ensures consistent operation across the broad temperature spectrum from -40°C to 105°C.

Packaged in protective tubes that maintain precise pin alignment and prevent mechanical damage,this 1.27mm female header supports both automated assembly and manual installation processes.Its combination of fine-pitch design, specialized contact geometry,and high-voltage capability makes it particularly valuable for advanced applications in network servers, automotive control units, and precision measurement instruments.

1.27mm Pitch Female Header Connector Dual Row Right Angle U-Type H4.3mm 2*5P
