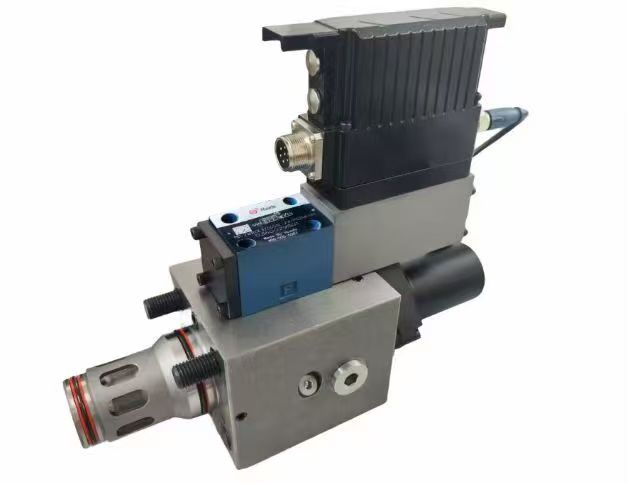

Huade HD-2WRCE32-50S-2X Cartridge Valve: Core Information & Technical Analysis
I. Product Positioning & Core Advantages
1. High-Frequency Response Characteristics
• Designed for hydraulic systems requiring rapid dynamic response, such as injection molding machines, die-casting machines, and hydraulic presses.
• Minimizes delay between signal input and valve core movement through optimized flow path design and solenoid response speed.
2. Two-Port Cartridge Structure
• Adopts standardized cartridge design for direct integration into valve blocks, saving installation space and simplifying hydraulic circuit layouts.
• Supports logic control functions (e.g., directional control, pressure holding) to replace complex traditional valve assemblies.
3. Pressure & Flow Parameters
• Rated Pressure: Typically up to 35 MPa (refer to product manual for specifics), suitable for medium-to-high-pressure systems.
• Flow Range: Matches valve port size (e.g., 32-port diameter), supporting high-flow applications (hundreds of L/min).
II. Technical Features & Performance Metrics
1. Solenoid Drive Technology
• Utilizes wet-type solenoids to enhance response speed and reduce power consumption.
• Supports PWM (Pulse Width Modulation) signal control for precise valve core positioning.
2. Sealing & Reliability
• Precision gap matching between valve core and sleeve minimizes internal leakage and extends service life.
• Seal materials compatible with various hydraulic oils, operating in temperatures from -20°C to +80°C.
3. Electrical Interface
• Features DIN 43650 standard electrical connectors for quick assembly and error-proof design.
• Compatible with 12VDC/24VDC control voltages, adaptable to PLC or dedicated controllers.
III. Typical Application Scenarios
1. Injection Molding Equipment
• Controls rapid cylinder reversal for synchronized mold opening/closing and injection actions.
• Reduces hydraulic shock via high-frequency response, improving product surface quality.
2. Die-Casting Machine Systems
• Enables fast pressure switching during clamping, injection, and ejection cycles, shortening cycle times.
• High-pressure design withstands aluminum/magnesium die-casting environments.
3. Hydraulic Presses & Test Benches
• Facilitates closed-loop pressure control for precise force/displacement loading.
• Cartridge structure simplifies integration into multi-channel control systems.
IV. Selection & Usage Recommendations
1. Parameter Matching
• Select valve port size (e.g., 32-port for HD-2WRCE32) based on system maximum pressure and flow.
• Verify compatibility of control voltage and signal type (PWM or analog) with the controller.
2. Installation & Maintenance
• Clean valve block bores before cartridge insertion to prevent contaminants from entering valve core gaps.
• Regularly check hydraulic oil cleanliness (recommended NAS 6 or better) to avoid valve core sticking.
3. Troubleshooting
• No Action: Inspect power supply, signal wiring, and solenoid coil resistance.
• Slow Response: Confirm hydraulic oil viscosity is not excessive or valve core worn.
• Leakage: Replace seals or inspect valve body for surface scratches.
V. Competitive Comparison & Selection Guide
【表格】
Comparison Dimension HD-2WRCE32-50S-2X Traditional Spool Valves Servo Valves
Response Speed Fast (high-frequency) Slow Extremely fast (but costly)
Contamination Resistance Strong (gap design) Weak Weak (requires high oil cleanliness)
Integration Level High (cartridge) Low (requires valve block assembly) Medium (separate installation)
Cost Medium Low High
Typical Applications Industrial automation, die-casting General hydraulic systems Precision machinery, aerospace
Selection Recommendations:
• Prioritize HD-2WRCE32-50S-2X forhigh-frequency reversal, space-constrained, or circuit-simplificationneeds.
• Consider servo valves only for systems demandingnanometer-level precisionand accept higher costs/maintenance complexity.
