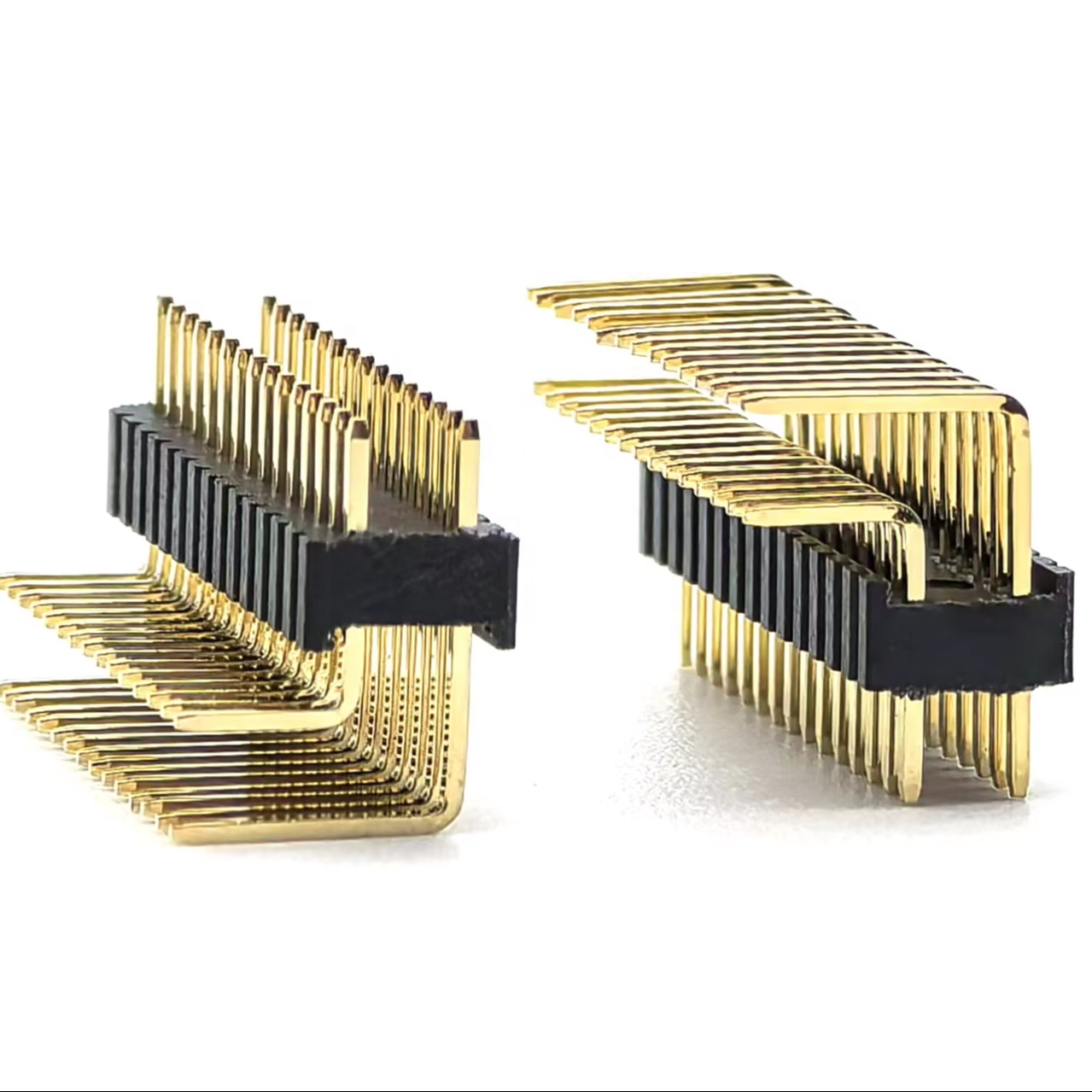

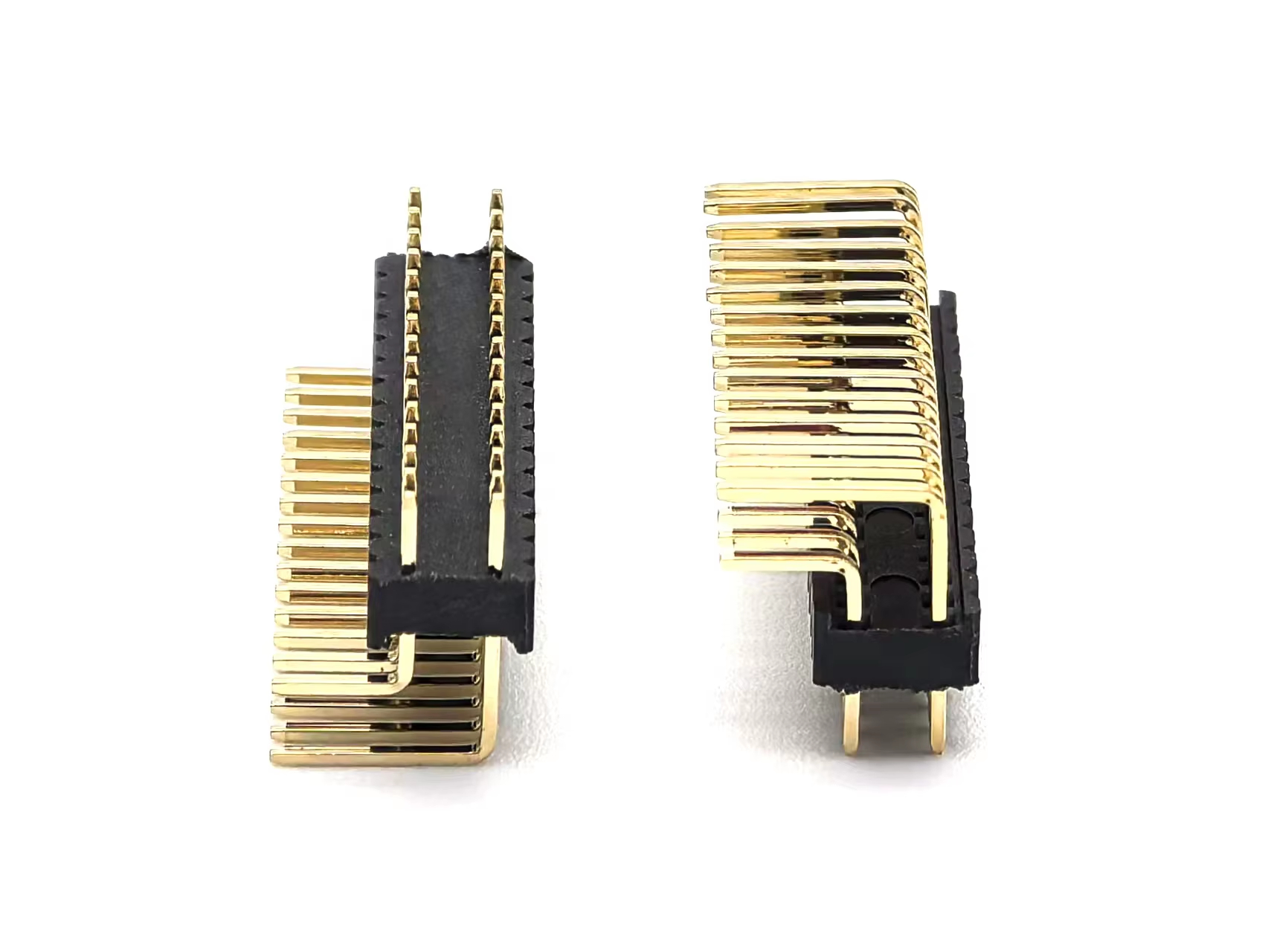

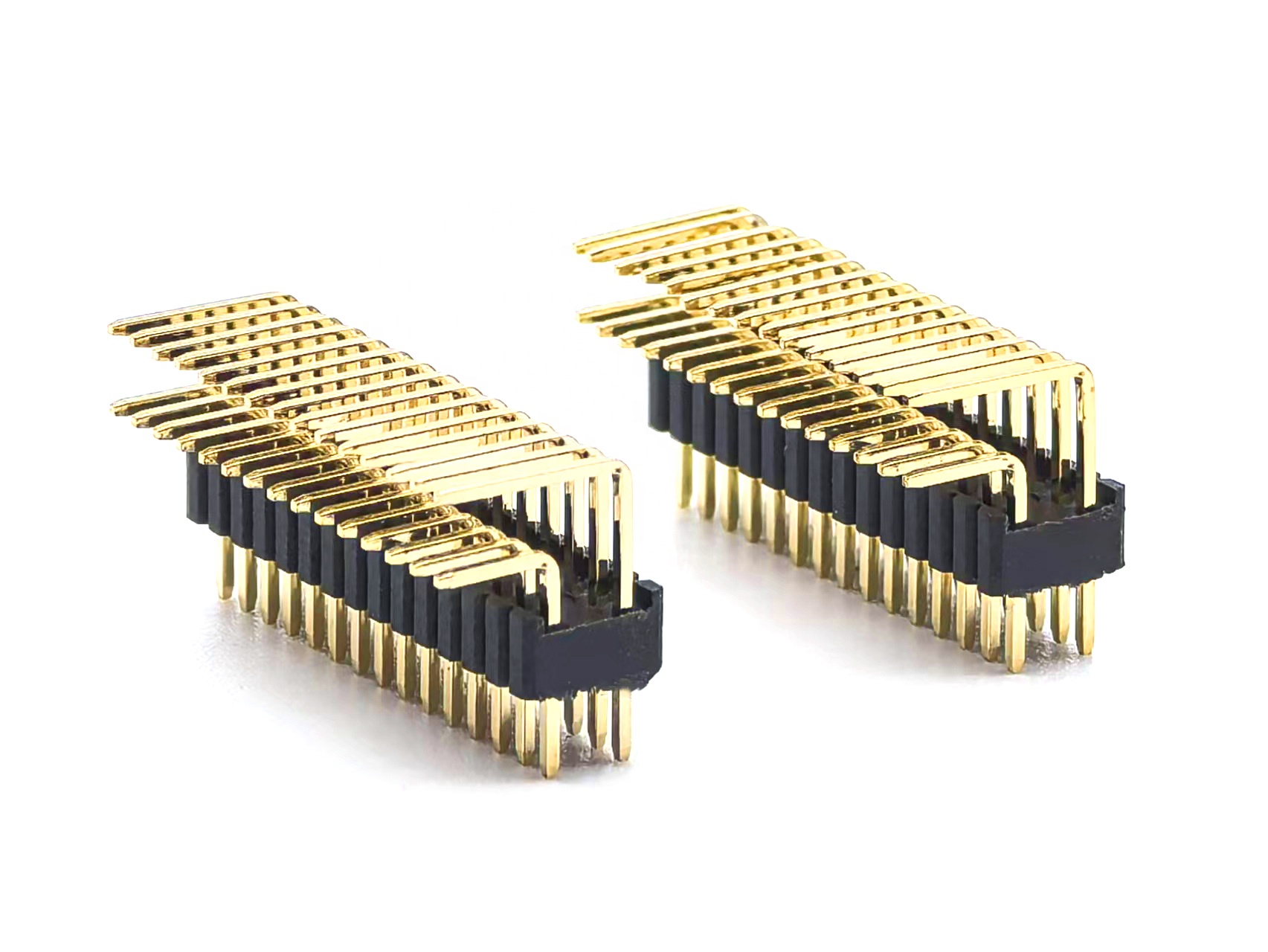

1.27mm Pitch Pin Header Connector Dual Row Right Angle SQ0.46mm H2.54mm 2*15P

5 week ago

0 0

Shenzhen Yangzhan Electronics Co., Ltd.

 7 month year

Product details

Introducing YZTECH’s high-precision 1.27mm dual-row pin header,reengineered with a 90-degree bending plug to maximize vertical PCB space efficiency.This 30-position male header connector enables streamlined parallel board stacking while maintaining a low-profile footprint—ideal for miniaturized electronic assemblies.Gold-plated brass contacts deliver robust 1A/300V performance,ensuring reliable signal integrity in high-density applications.The PA6T high-temperature insulation material guarantees mechanical stability and thermal resilience,making it a prime choice for space-constrained environments demanding durable board-to-board interconnection.

Operating flawlessly from -45°C to 105°C,this connector conquers extreme thermal environments with ease.Its PA6T thermoplastic housing resists warping under thermal stress,while gold-plated contacts ensure low insertion force and consistent conductivity through repeated mating cycles.Certified to withstand 220°C reflow soldering for 10 seconds,it maintains structural integrity during high-temperature manufacturing.Secure box packaging protects the precision-formed right-angle pins during transit,ensuring flawless deployment in production lines.

Perfect for vertical space optimization,this 1.27mm pin header shines in stackable board designs for consumer electronics,data communication hubs,industrial controllers,and portable medical devices.Its right-angle configuration and compact form factor enable innovative PCB layouts without sacrificing reliability.Compliant with global safety standards,it integrates seamlessly into high-volume production workflows.For engineers designing next-gen compact systems,YZTECH’s solution merges precision engineering with rugged durability—redefining possibilities for space-efficient electronics worldwide.

1.27mm Pitch Pin Header Connector Dual Row Right Angle SQ0.46mm H2.54mm 2*15P
