A. Customizable single/double station design, flexible selection of models, greatly improve the cost-effectiveness;
B. Special high-temperature vacuum film design ensures the transfer effect
C. Multi-protection device: vacuum over-voltage protection, vacuum constant voltage control;
D. With a mature touch-screen human-machine interface, parameters are more convenient and intuitive

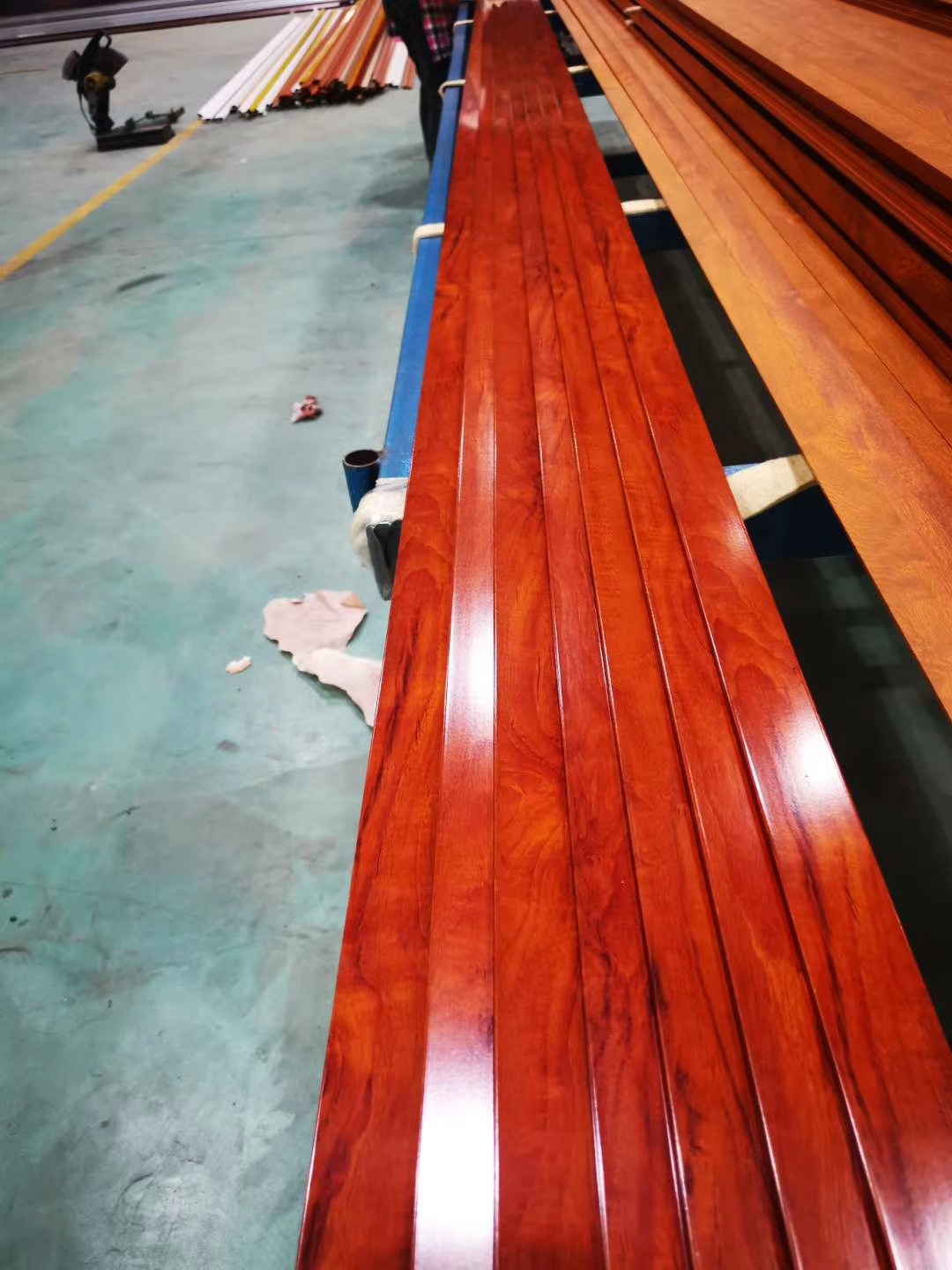

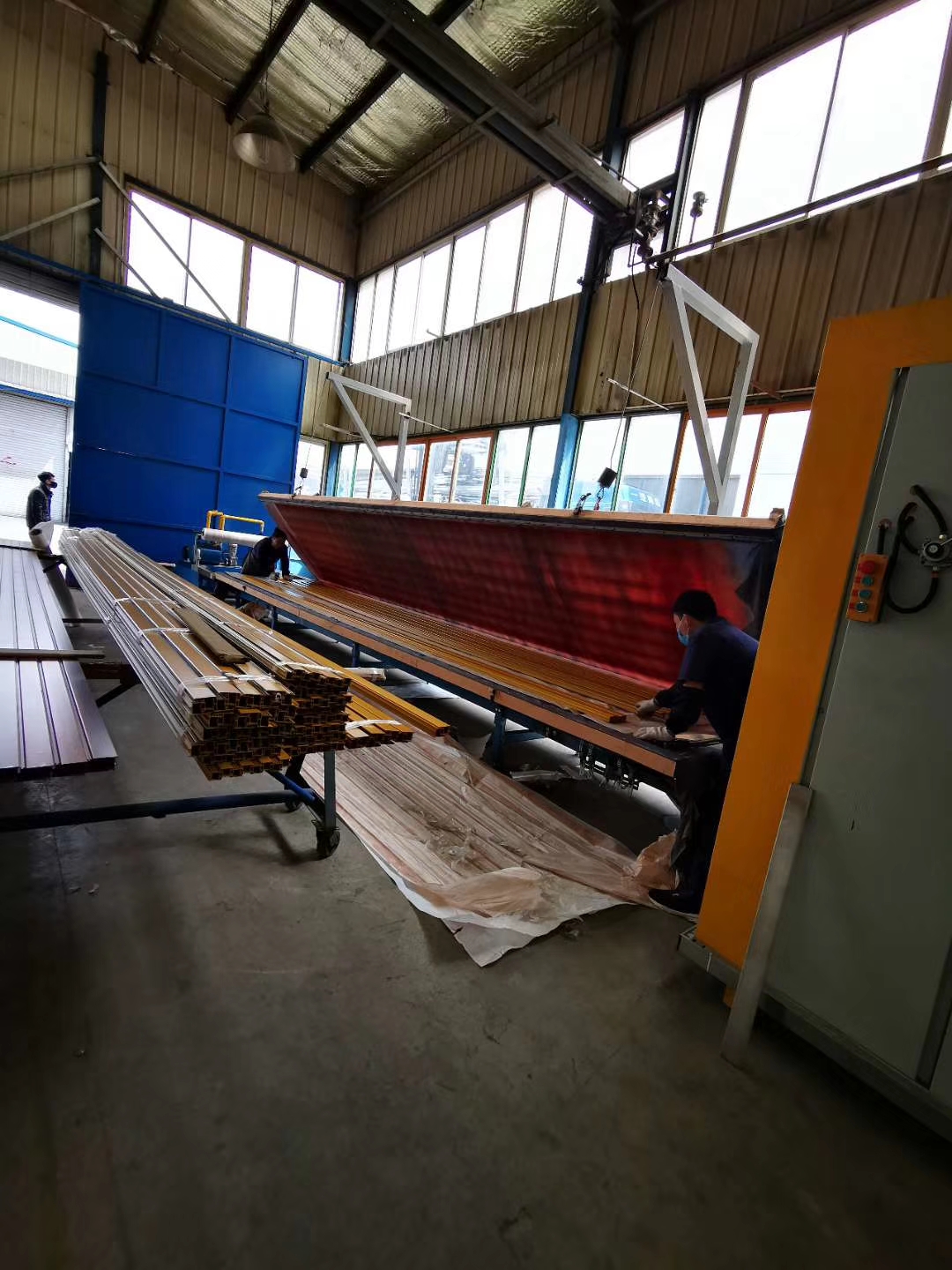

This aluminum wood grain transfer furnace employs bag extraction vacuum wood grain transfer printing, producing highly realistic wood grain, marble, and other finishes on the surface of transferred products. It is primarily designed for thermal transfer printing on metal surfaces treated via spraying, baking, electrophoresis, etc.
1. Furnace Body
Serves as the foundational component for assembling other parts and providing thermal insulation. Consists of an outer shell, insulation material, and frame.
2. Heating and Temperature Control System
The electrical control system comprises an electrical cabinet containing PLC, touchscreen, solenoid valves, switches, etc. Power requirements: Three-phase four-wire AC380V, 16KW (gas-fired), 130KW (electric-fired). All drag chain cables use high-flex, anti-break cables from major brands.
3. Vacuum Adhesion Device
Comprising a water ring vacuum pump, piping, vacuum suction heads, frame, and walking feed mechanism to achieve suction and adhesion of wood/stone pattern films.
4. Film Reverse-Blow Device
Interconnects a medium-pressure blower with vacuum suction heads. Performs reverse film blowing after profiles exit the furnace for rapid film removal and enhanced production efficiency.

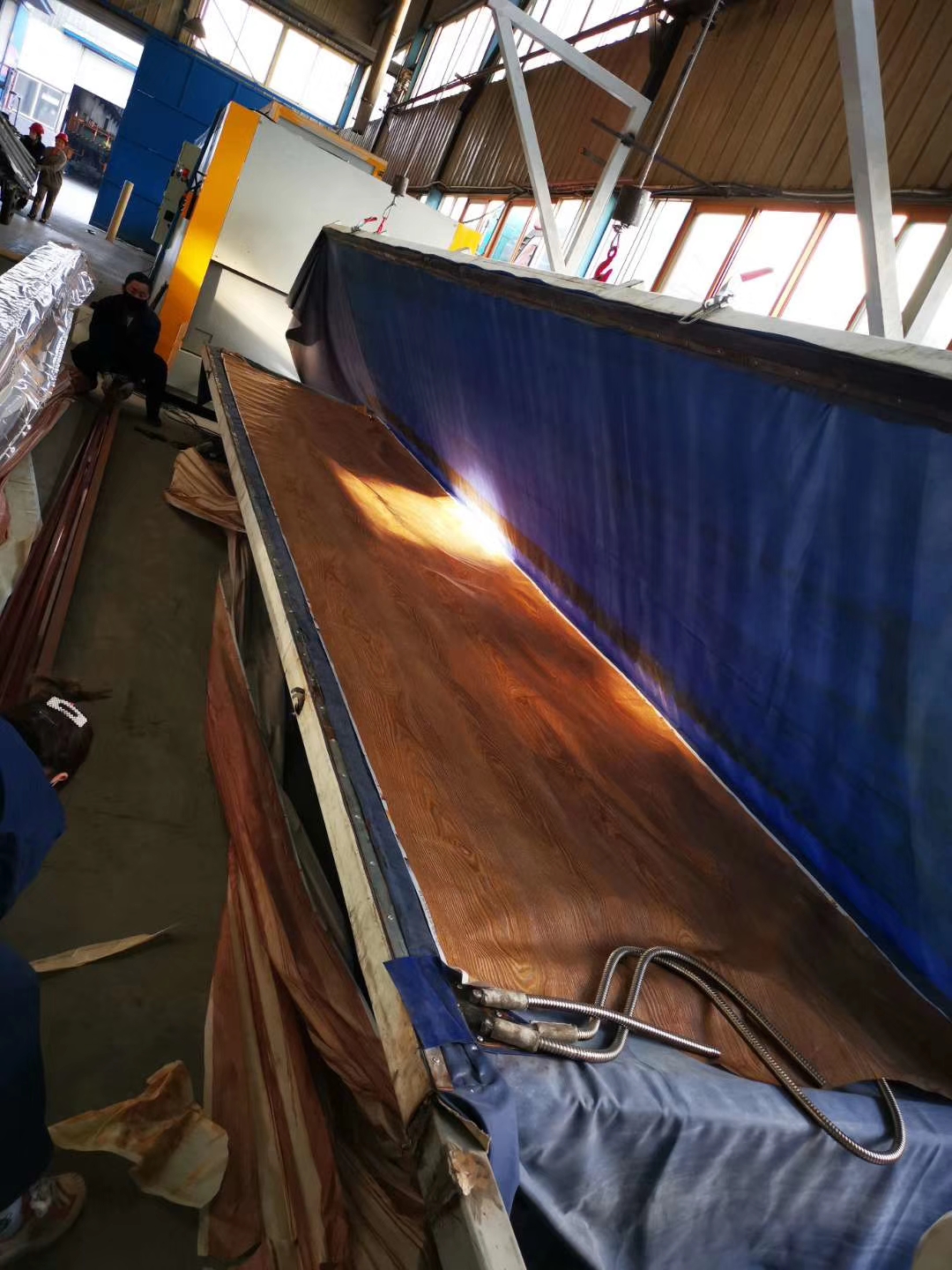

5. Vacuum Auxiliary Frame
Comprising a fixed support, movable vacuum frame, and water tank. Serves as the working platform for profile loading and unloading.MAIN COMPOSITION
1. Thermosetting transfer furnace (including burner and heat circulation system) 2 sets
2. Vacuum and drive device 2 sets (Cover-style)
3. Fully automatic electric control system 1 set
