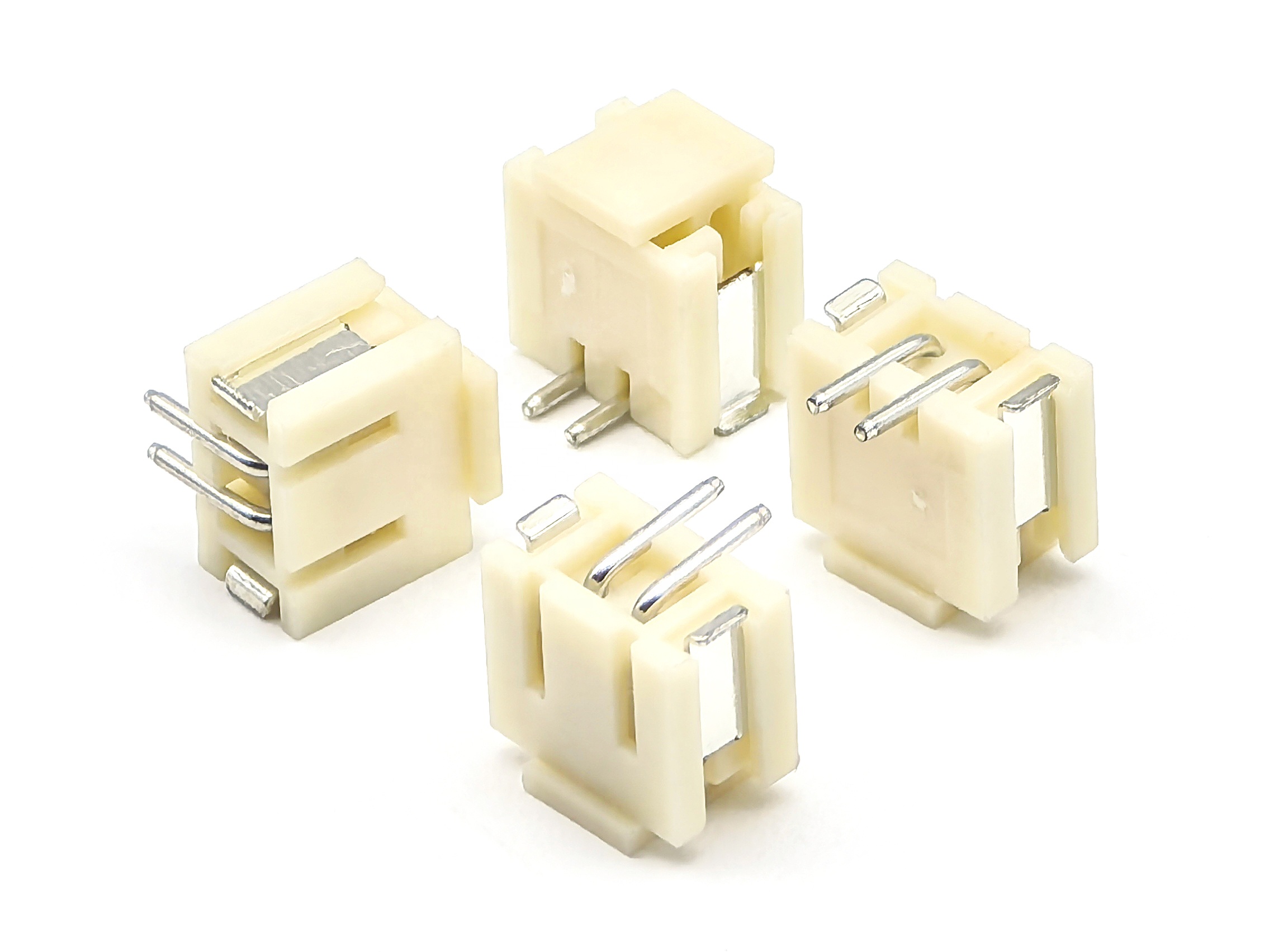

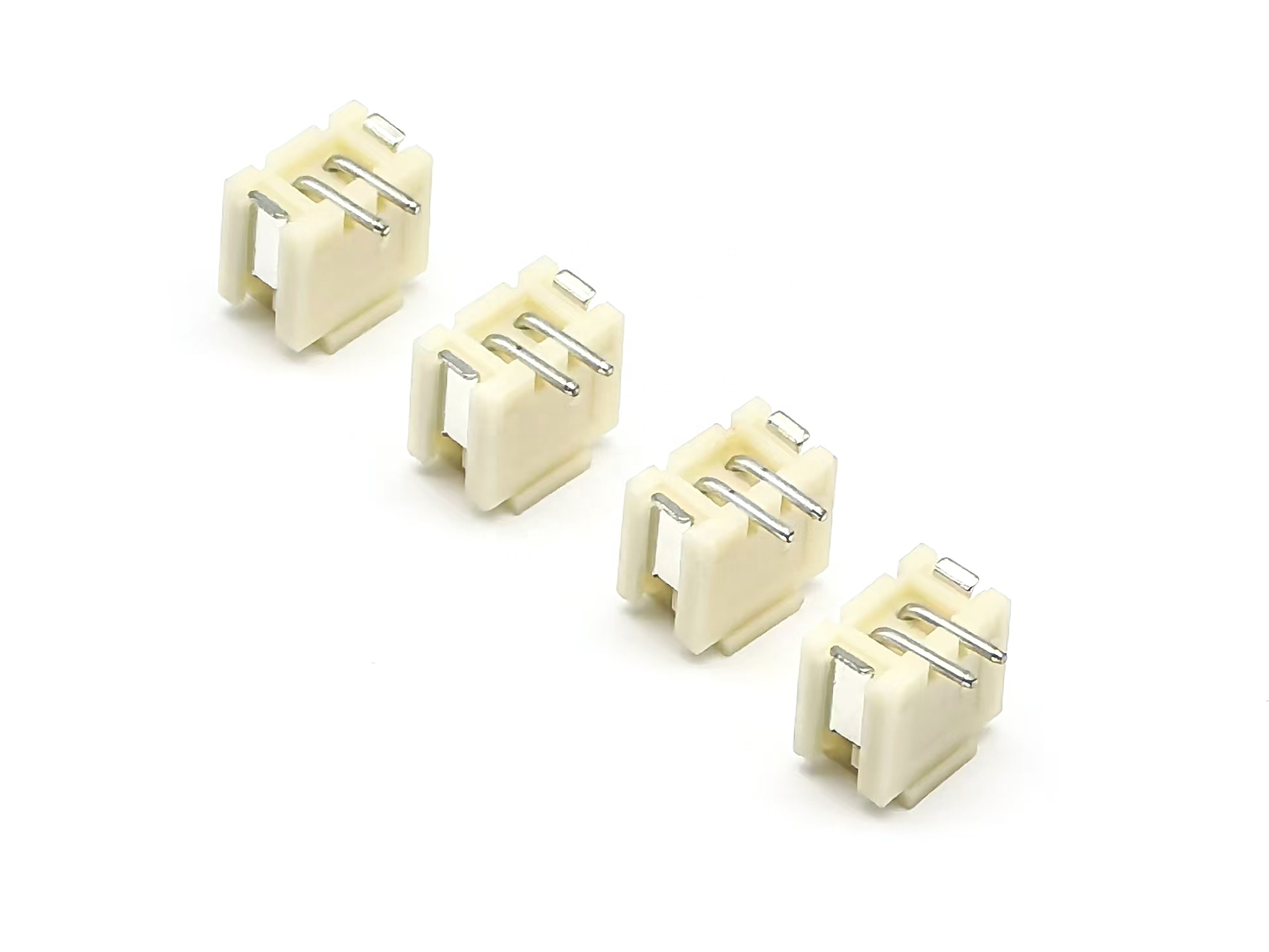

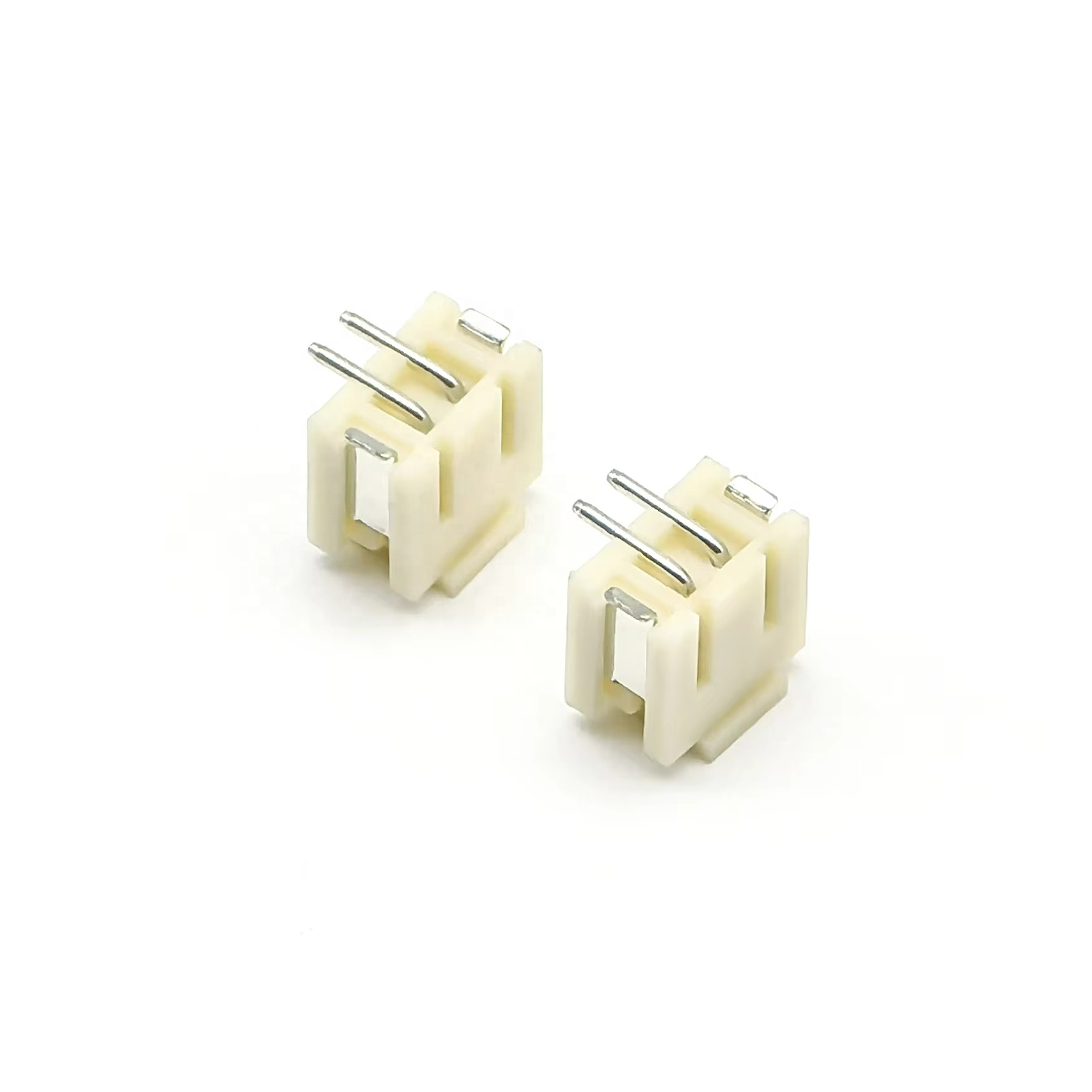

ZH1.5mm Pitch Wafer Vertical SMT Pin header Connector 2P

4 week ago

1 0

Shenzhen Yangzhan Electronics Co., Ltd.

 7 month year

Product details

The YZTECH ZH1.5mm vertical SMT wafer pin header delivers precision and space efficiency for modern electronics.Designed as a 2-position,single-row male header connector,it adopts a vertical surface-mount configuration that minimizes PCB footprint while preserving signal stability and electrical performance.

Constructed with laser-stamped brass contacts and uniform tin plating, the header supports reliable operation at 1A/100V,offering consistent solderability and durable conductivity. The housing utilizes PA6T—a high-temperature,thermally resistant polymer—that provides exceptional dielectric strength and mechanical integrity throughout reflow processes, making it suited for densely arranged PCB layouts.

Rated for commercial temperature ranges from -25°C to 85°C,this wafer housing terminal maintains structural and dimensional stability under thermal stress. The tin-plated brass contacts offer an optimal balance of performance and cost-effectiveness, while the vertical orientation facilitates compact board stacking and simplifies testing and rework. Supplied in reel packaging for automated SMT assembly,it ensures manufacturing efficiency and consistency in high-volume applications.

Suitable for consumer electronics, industrial systems,and embedded controls,the 1.5mm pitch allows increased circuit density without compromising connection integrity.The brass-tin interface ensures secure,vibration-resistant mating,and compliance with RoHS and DIN standards streamlines global integration.By combining thermal endurance,automation compatibility,and space-saving design, this vertical header meets the demands of today’s space-constrained and reliability-focused applications.

ZH1.5mm Pitch Wafer Vertical SMT Pin header Connector 2P
