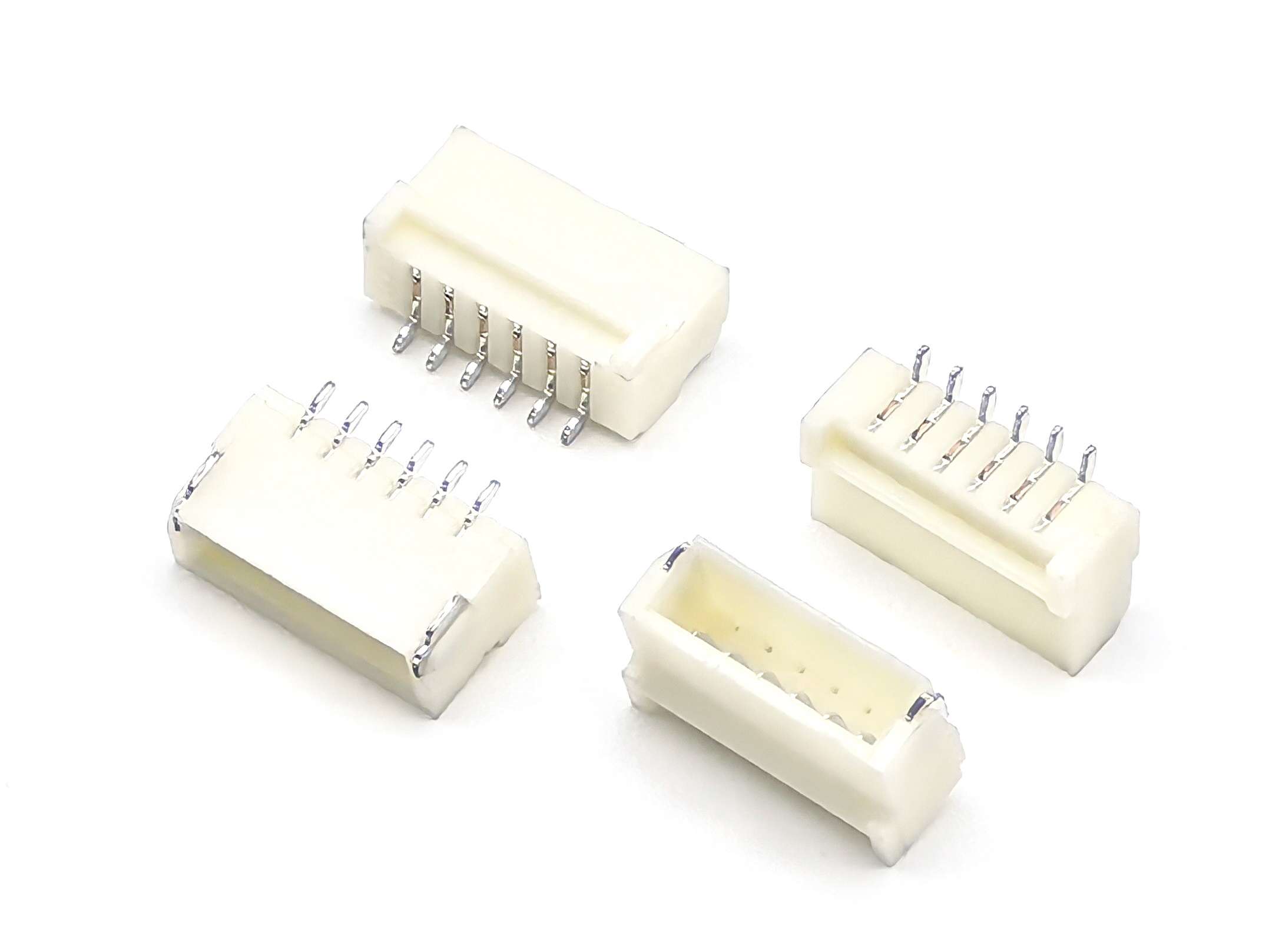

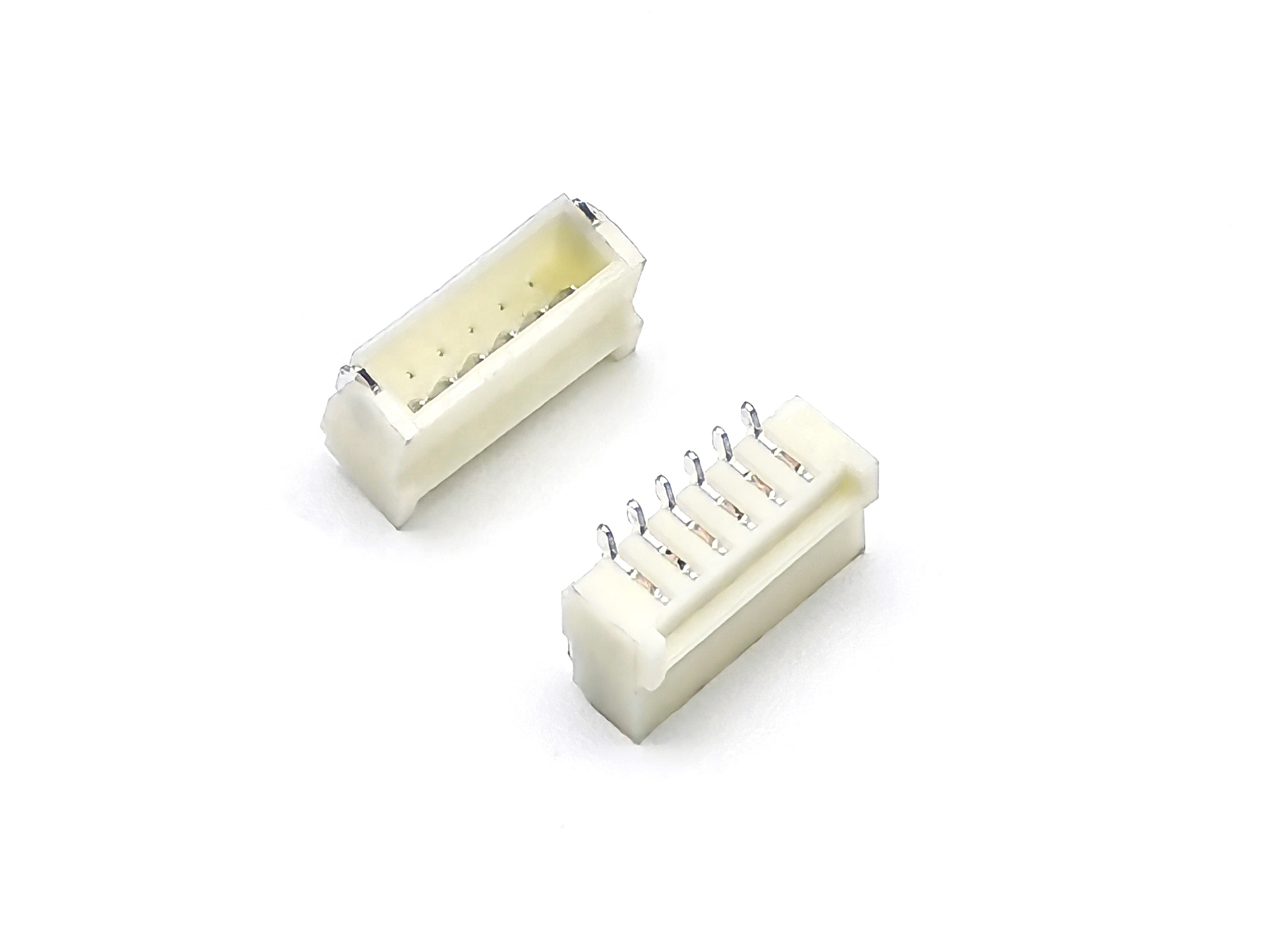

PH1.0mm Ultra-thin Right-angle Wafer SMT Type Pin Header Connector With Long Barbed 6P

4 week ago

3 0

Shenzhen Yangzhan Electronics Co., Ltd.

 7 month year

Product details

Introducing YZTECH’s groundbreaking PH1.0mm pitch wafer pin header, engineered with proprietary long-barbed phosphor bronze contacts for unprecedented PCB retention.This single-row,6-position male header connector utilizes horizontal mounting to deliver rock-solid board-to-board connections in high-vibration environments.The precision-crafted barbed contacts, enhanced by uniform tin plating, provide exceptional mechanical stability while maintaining 1A/125V electrical performance.Constructed with high-temperature PA6T insulation,this connector withstands extreme thermal cycles and mechanical stress, outperforming standard press-fit alternatives.

Operating reliably from -25°C to 85°C,this connector thrives in commercial and industrial settings.The advanced PA6T housing material exhibits superior resistance to thermal shock and mechanical impact,ensuring dimensional stability during soldering and assembly.Tin-plated phosphor bronze contacts combine reliable conductivity with corrosion resistance,while the innovative barbed design forms a permanent mechanical bond with PCBs,eliminating connection failures in dynamic environments.Reel packaging supports automated SMT assembly,reducing production time and enhancing quality consistency for high-volume manufacturing.

Ideal for vibration-prone applications like automotive electronics,industrial control systems,and transportation equipment,this barbed wafer housing terminal redefines reliability.The 1.0mm ultra-fine pitch enables compact multi-layer board designs, while the extended barbs ensure uncompromised retention in stacked configurations.Compliant with global RoHS and DIN standards, it integrates seamlessly into international supply chains.By merging precision engineering with automated-friendly packaging, this connector sets new benchmarks for mechanical stability in demanding electronic applications.

PH1.0mm Ultra-thin Right-angle Wafer SMT Type Pin Header Connector With Long Barbed 6P
