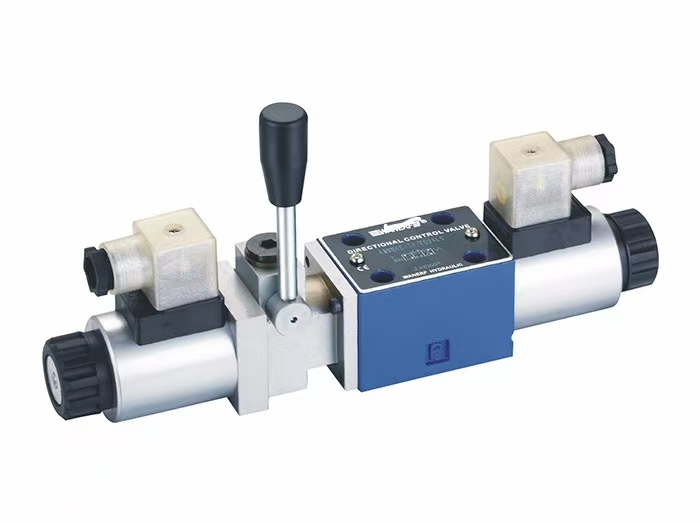

WMME Type Solenoid Directional Valve with Auxiliary Handle

WMME Type Solenoid Directional Valve with Auxiliary Handle

4 week ago

1 0

Ningbo Hengnuo Hydraulic Drive Co.,Ltd

 3 year year

Product details

WMME Type Solenoid Directional Valve with Auxiliary Handle: Detailed Specifications

1. Core Parameters & Structure

• Model Definition: WMME Type, a direct-operated solenoid directional valve equipped with an auxiliary handle (emergency handle) for manual override.

• Technical Specifications:

• Operating Pressure: Max. 31.5 MPa (315 bar), suitable for high-pressure hydraulic systems.

• Port Standards: NG6 (ISO 4401) and CETOP 3, compatible with mainstream hydraulic piping.

• Temperature Range: -40°C to 120°C, adaptable to extreme environments.

• Filtration Requirement: 25μm or finer filter mesh to ensure internal cleanliness.

• Electrical Characteristics: Minimum operating voltage at 90% of rated voltage; supports DC/AC power supply (specific voltages depend on model variants).

• Materials & Processes: Cast valve body with corrosion-resistant surface treatment; internal seals compatible with mineral oil, eco-friendly hydraulic oil, and synthetic fluids.

2. Functional Features

• Solenoid Control: Electromagnetically driven spool shifting for automatic hydraulic circuit switching.

• Auxiliary Handle: Manual operation via emergency handle in case of power failure or malfunction, ensuring system safety.

• Applications: Widely used in industrial hydraulic equipment (e.g., machine tools, construction machinery), automated production lines, and scenarios requiring redundant control.

4. Selection & Customization

• Optional Configurations: Customizable valve body materials (e.g., stainless steel), sealing materials (e.g., NBR, Viton), and electrical interfaces (e.g., DIN EN175301-803).

• Integrated Components: Often integrated with hydraulic manifolds, solenoid coils, and sensors to form complete hydraulic control systems.

5. Installation & Maintenance

• Installation Requirements: Must be installed in a clean, dry environment to prevent contaminants from entering the valve; electrical connections must comply with explosion-proof area regulations.

• Maintenance Recommendations: Regularly inspect seal wear, clean filter screens, and test manual override functionality.
