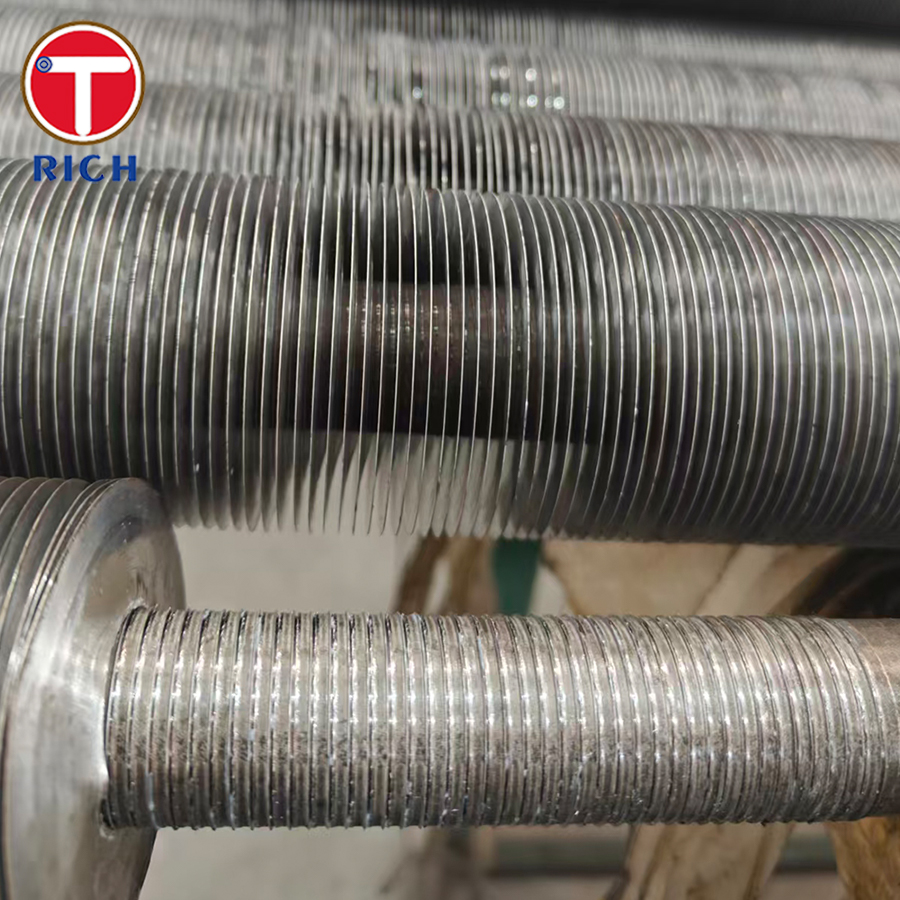

Our SA179 G-Type Finned Tube is manufactured using ASME SA179 seamless low-carbon steel tubing as the base material. G-type (embedded) fins, made from the same carbon steel, are installed on the outer surface of the tube to increase surface area and enhance heat transfer efficiency. Other fin materials, such as aluminum and copper, are available. The G-type fin process ensures a strong mechanical bond between the fins and the tube, ensuring high reliability under high temperature and vibration conditions in air-cooled heat exchangers, condensers, boilers, and other equipment.

Specification

Standard	ASTM A179
Grades	SA179
Tube Type	Seamless Low Carbon Steel Tube
Fin Type	G-Type (Embedded Fin)
Fin Material	Carbon Steel. Aluminum (AA1060 / AA1100), Copper also available
Tube Outer Diameter	19 mm – 63.5 mm
Fin Height	6 mm – 16.5 mm
Fin Thickness	0.3 mm – 2 mm
Fin Pitch	8-12 FPI
Length	Up to 12 meters

Key Features

Excellent heat transfer efficiency: Embedded fins ensure excellent thermal contact between the fins and the base tube.
Securely bonded fins: Fins are mechanically locked into machined grooves, preventing loosening during thermal cycling.
High-temperature resistance: Suitable for continuous operation up to 300°C.
Corrosion and oxidation resistance: Can be treated or coated to extend service life in industrial environments.
Economical and efficient: Mild steel offers excellent thermal properties at a lower material cost.
Reliable performance: No weld heat damage, stable base tube performance, suitable for high-temperature, high-pressure, and vibration-prone applications.

Chemical Composition

Element	C	Mn	P (max)	S (max)
Content (%)	≤ 0.06	0.27–0.63	0.035	0.035

Mechanical Properties

Property	Requirement
Tensile Strength, min (MPa)	325
Yield Strength, min (MPa)	180
Elongation (in 50 mm), min %	35
Hardness (HRB), max	72
Flattening / Flaring Test	Required

Application

Air-cooled heat exchangers
Condensers and economizers
Boilers and process heaters
Petrochemical and refinery heat recovery systems
Power generation cooling systems
Gas cooling and drying units

Possible Alternative Grades

Grade A1: Medium carbon steel for high-temperature service.
Grade B: Carbon steel for high-pressure applications.
T11 / T22: Alloy steel with enhanced oxidation resistance.

Q: Are you trading company or manufacturer ?

A: manufacturer,also can do trading.

Q: How long is your delivery time?

A: Generally speaking,it is 10-15 days if the goods are in stock,or it is 30-40 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples? is it free or extra ?

A: Yes, we could offer the sample for free charge but need pay the cost of freight.

Q: What is your terms of payment ?

A: Payment<=2000USD, 100% in advance. Payment>=2000USD, 30% T/T in advance ,balance before shippment.

If you have another question, pls feel free to contact with me.
