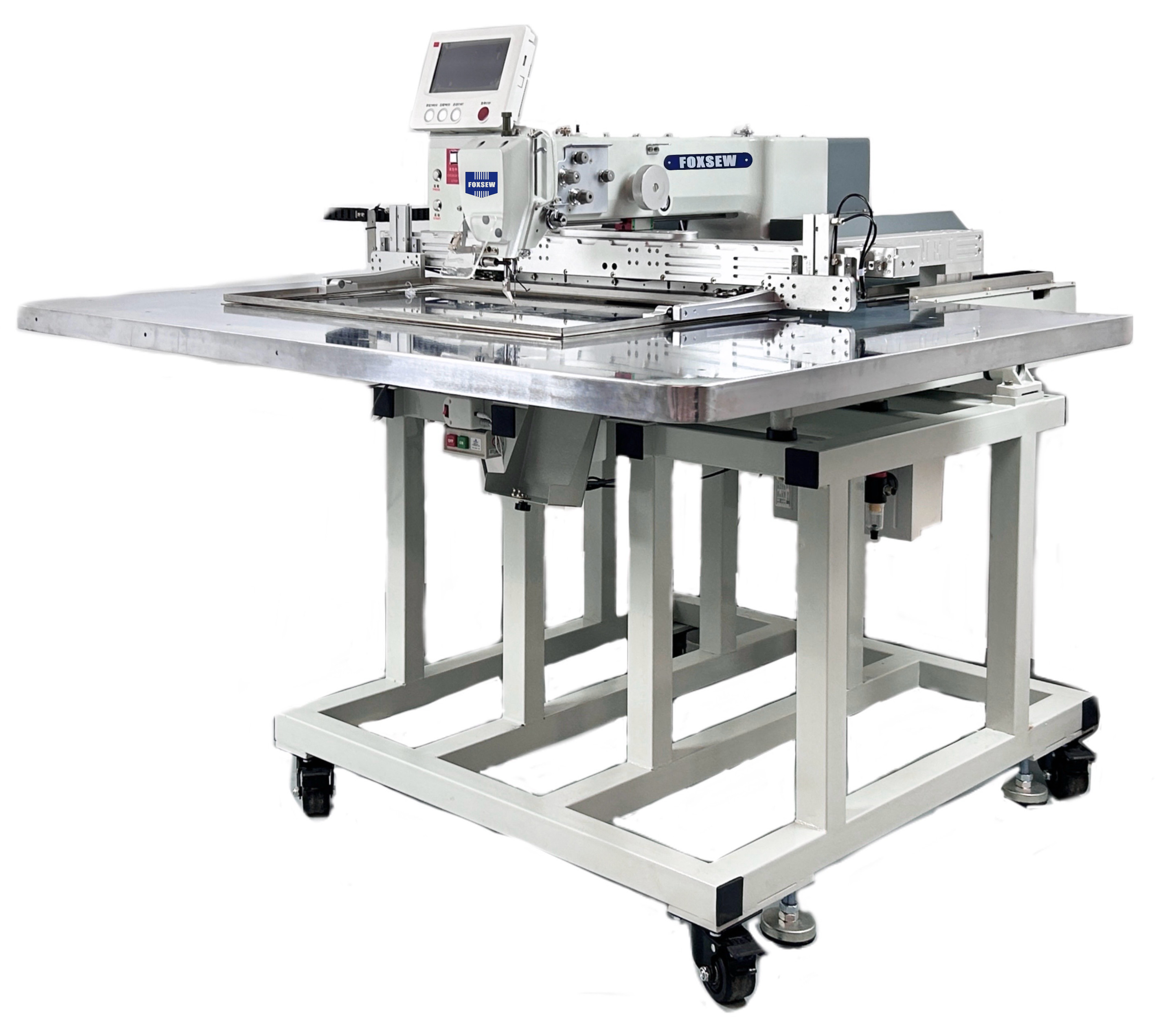

Large Sewing Area Automatic Programmable Heavy Duty Pattern Sewing Machine
FOXSEW Automatic Programmable Heavy Duty Pattern Sewing Machine FX6040HP and FX3020HP
Programmable Automatic Heavy Duty Sewing Machine for Rescue Webbing Slings, Fall Protection Equipment and Safety Harness.
Working Video: www.foxsew.com/company-video/large-size-programmable-automatic-heavy-duty-webbing-pattern-sewing-machine-3356.html
Spread the threading pressure and neatly stitch
Using Germany Durkopp Adler new cylinder-type double-clutching thread tension device effectively disperses the thread tension pressure, and the thread is not easy to knot and twist during the sewing process, the thread is smoother and the stitch are more beautiful. Reduce the frequency of thread breaking by more than 20%.
Stable sewing, avoid thread jamming or thread blocking
From the previous 9mm width guide rail, upgraded to now 15mm width high-precision guide rail. Previously, there were only 2 guide rails in the Y-Axis direction; now upgraded to 4 guide rails, accuracy improved by more than 90%, durability improved by over 50%, and overloading capacity increased by more 80%.
Double Belts Driving, Precise Force Application
The Y-Axis direction transmission part of the old model used one imported-belt for intermediate transmission; now upgraded to two imported belts with an 30cm spacing between each belt, effectively allowing both belts to work simultaneously.
The hook uses a larger six-times hook. Compared to previously needing to replace 20 hooks per day, replacing this model requires only 10 replacements for the same quantity, having the work load instantly. Efficiency increases by 50% immediately, significantly saving time and speeding up work rhythm, improving both efficiency and quality.
Advantage Features of Electric Control System:
This is our brand new sixth-generation specially customized high-ene
rgy modular electrical control system, featuring 6 major upgraded advantge functions:
Specifications:
| Model NO.: | FOXSEW FX6040HP | FOXSEW FX3020HP |
| Sewing Area: | 600x400mm | 300x200mm |
| Stitch Type: | Single Needle, Lockstitch | Single Needle, Lockstitch |
| Maximum Speed: | 3000r.p.m | 3000r.p.m |
| Stitch Length: | 0.1mm-16mm | 0.1mm-16mm |
| Max. Stitches: | 10000 stitches/pattern | 10000 stitches/pattern |
| Max. Patterns: | 1000 patterns saved system | 1000 patterns saved system |
| Hook: | 6-times larger hook | 6-times larger hook |
| Maximum Thickness: | 20mm | 20mm |
| Needle Type: | DYx3 #26, #27 | DYx3 #26, #27 |
| Out Presser Foot Lift: | 30mm | 30mm |
| Inner Presser Foot Lift: | 28mm | 28mm |
| Lubrications: | Automatic | Automatic |
| Needle Cooler: | Yes | Yes |
| Machine Size: | 163x138x125cm | 120x120x125cm |
| Net Weight: | 290KGS | 235KGS |
| Packing Size: | 169x142x145cm | 130x130x145cm |
| G. Weight: | 360KGS | 295KGS |
