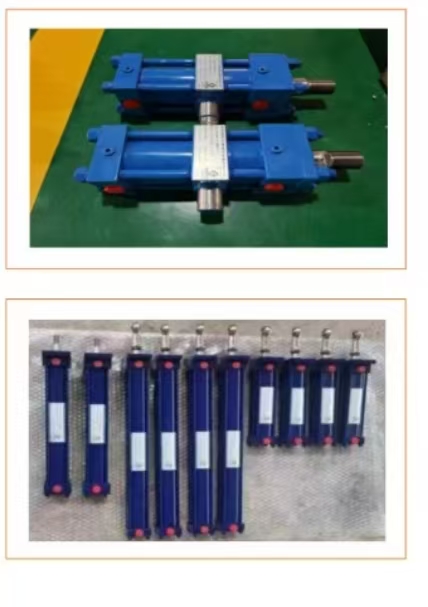

A hydraulic cylinder is a mechanical actuator that is used to provide unidirectional force through a unidirectional stroke. It is a key component in hydraulic systems and is widely used in various industrial applications, construction equipment, and automotive systems. Here are some specific details about hydraulic cylinders:
Structure and Components
1. Cylinder Barrel: The main body of the hydraulic cylinder, which houses the piston and other internal components. It is typically made of high-strength steel or aluminum alloy to withstand high pressures.
2. Piston: A moving part inside the cylinder barrel that separates the cylinder into two chambers: the rod side and the cap side. The piston is connected to the piston rod and moves back and forth as hydraulic fluid is pressurized and depressurized.
3. Piston Rod: A rod that extends from the piston through the end cap of the cylinder. It is the part of the cylinder that applies force to the load. The piston rod is usually made of hardened steel to resist wear and corrosion.
4. End Caps: The caps at each end of the cylinder barrel that seal the cylinder and provide attachment points for the piston rod and other components. They are typically made of steel or aluminum alloy and are designed to withstand high pressures.
5. Seals: Gaskets or rings that prevent hydraulic fluid from leaking out of the cylinder and prevent contaminants from entering. Seals are critical for maintaining the performance and longevity of the hydraulic cylinder.
6. Ports: Inlets and outlets for hydraulic fluid that allow the cylinder to be pressurized and depressurized. The ports are typically located on the end caps or cylinder barrel and are connected to hydraulic hoses or pipes.
Working Principle
Hydraulic cylinders work based on Pascal's law, which states that pressure applied to a confined fluid is transmitted undiminished in all directions. When hydraulic fluid is pressurized and forced into one chamber of the cylinder, it pushes the piston and piston rod in one direction. When the fluid is depressurized and allowed to flow out of the chamber, the piston and piston rod return to their original position, either due to spring force or the weight of the load.
Types of Hydraulic Cylinders
1. Single-Acting Cylinders: These cylinders have hydraulic pressure applied to only one side of the piston, with the return stroke typically accomplished by a spring or the weight of the load.
2. Double-Acting Cylinders: These cylinders have hydraulic pressure applied to both sides of the piston, allowing for force to be applied in both directions. They are more versatile and commonly used in applications where precise control and bidirectional force are required.
3. Telescopic Cylinders: These cylinders consist of multiple nested stages that extend and retract like a telescope. They are used in applications where a long stroke length is required in a compact space, such as in dump trucks and aerial lifts.
4. Differential Cylinders: These cylinders have different cross-sectional areas on the rod side and cap side of the piston, resulting in different forces being applied during extension and retraction. They are used in applications where a specific force ratio is required.
Applications
Hydraulic cylinders are used in a wide range of applications, including:
1. Construction Equipment: Excavators, bulldozers, loaders, and other heavy machinery use hydraulic cylinders for lifting, pushing, and digging operations.
2. Industrial Machinery: Press machines, injection molding machines, and other industrial equipment use hydraulic cylinders for clamping, pressing, and forming operations.
3. Automotive Systems: Brake systems, steering systems, and suspension systems in vehicles use hydraulic cylinders for force transmission and control.
4. Aerospace: Aircraft landing gear, flight control surfaces, and other aerospace components use hydraulic cylinders for actuation and control.
5. Marine: Ship steering systems, hatch covers, and other marine equipment use hydraulic cylinders for operation and control.
