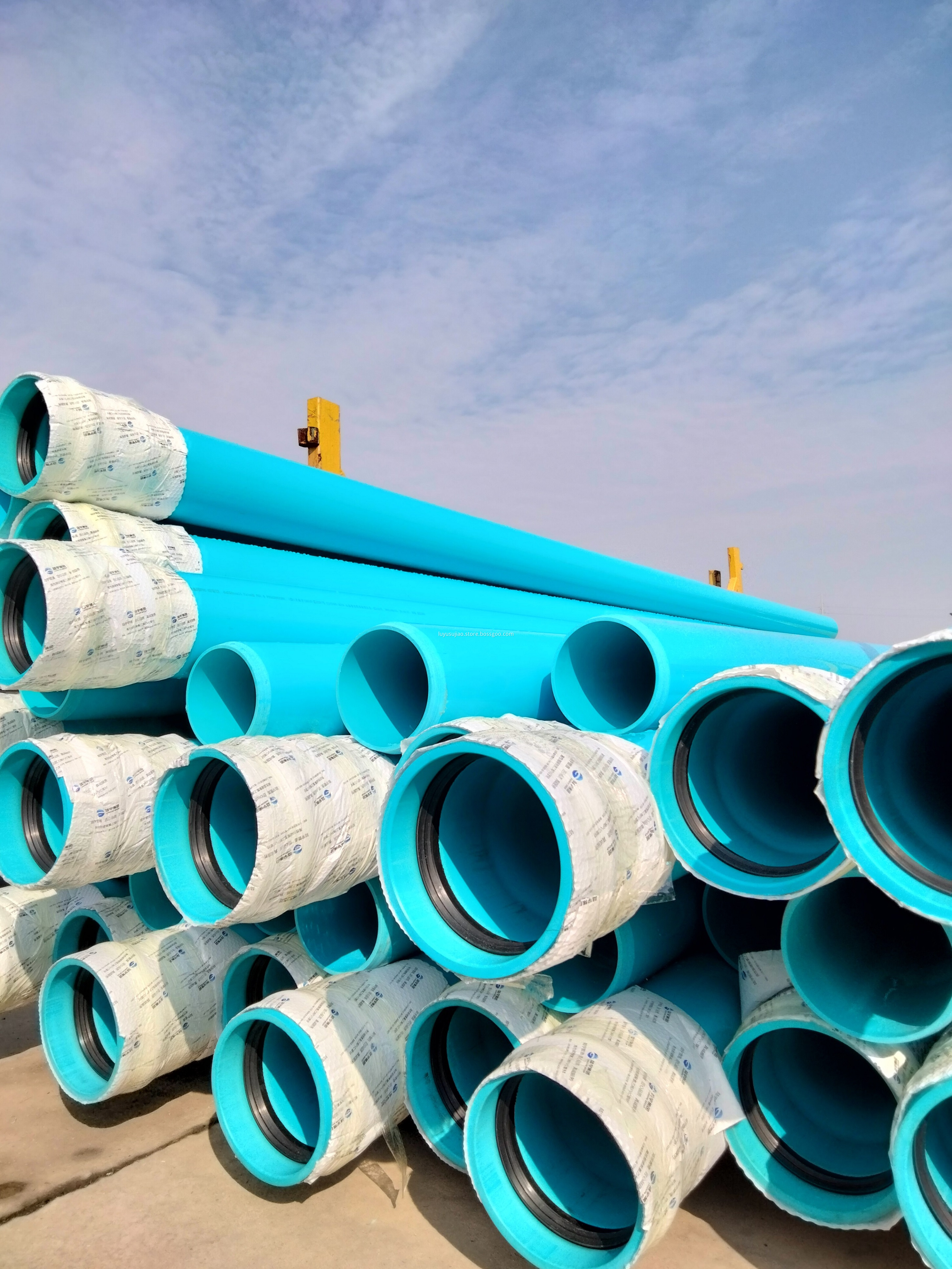

pvc-uh water supply tube

5 week ago

2 0

Shandong Luyu Plastic Co., Ltd.

 2 month year

Product details

PVC-UH Pipe is made by improving the molecular chain structure of PVC, so that the product has high strength, high pressure, ring rigidity, good internal and external pressure, suitable for paving in the pipe gallery, good toughness and high modulus.

It has small shrinkage, more than 45% of ring flexible energy, good impact resistance, suitable for material stress release caused by temperature changes in the pipe gallery; built-in plastic inspection well with high pressure sealing performance to ensure piping system Sealing; easy to install and fast maintenance, low maintenance cost;

pipeline system design life ≥ 50 years, with the advantages of low investment and high cost performance.

PVC-UH Water Supply Pipe product specifications

Outside Diameter(mm)	0.63MPa	0.8MPa	1.0MPa	1.25MPa	1.6MPa	2.0MPa	2.5MPa
Outside Diameter(mm)	Thickness (mm)	Thickness (mm)	Thickness (mm)	Thickness (mm)	Thickness (mm)	Thickness (mm)	Thickness (mm)
50		2.0	2.4	3.0	3.7	4.6	5.6
63	2.0	2.5	3.0	3.8	4.7	5.8	7.1
75	2.3	2.9	3.6	4.5	5.6	6.9	8.4
90	2.8	3.5	4.3	5.4	6.7	8.2	10.1
110	2.7	3.4	4.2	5.3	6.60	8.10	10.0
125	3.1	3.9	4.8	6.0	7.40	9.20	11.4
140	3.5	4.3	5.4	6.7	8.30	10.30	12.7
160	4.0	4.9	6.2	7.7	9.50	11.80	14.6
180	4.4	5.5	6.9	8.6	10.70	13.30	16.4
200	4.9	6.2	7.7	9.6	11.90	14.70	18.2
225	5.5	6.9	8.6	10.8	13.40	16.60	20.5
250	6.2	7.7	9.6	11.9	14.80	18.40	22.7
280	6.9	8.6	10.7	13.4	16.60	20.60	25.4
315	7.7	9.7	12.1	15.0	18.70	23.20	28.6
355	8.7	10.9	13.6	16.9	21.10	26.10	32.2
400	9.8	12.3	15.3	19.1	23.70	29.40	36.3
450	11.0	13.8	17.2	21.5	26.70	33.10	40.9
500	12.3	15.3	19.1	23.9	29.70	36.80	45.4
560	13.7	17.2	21.4	26.7	33.20	41.20
630	15.4	19.3	24.1	30.0	37.40	46.30
710	17.4	21.8	27.2	33.9	42.10	52.20
800	19.6	24.5	30.6	38.1	47.40
900	22.0	27.6	34.4	42.9	53.30
1000	24.5	30.6	38.2	47.7
1200	29.4	36.7	45.9
1400	34.3	42.9	53.5
1600	39.2	49.0

Our factory has multiple PVC pipe and fitting production lines to provide you with timely supply and support convenient specification customization.
