Product details

PE Double Wall Corrugated Pipes are a new type of lightweight pipe made of polyethylene as raw material, which is processed by extrusion and special molding technology.

Hdpe Pipe for Drain Water Applications:

1.Drainage and ventilation pipelines for mines and buildings;

2.Irrigation and drainage of farmland water resources;

3.Drainage and transportation pipes for sewage treatment plants and garbage disposal sites;

HDPE Sewage Pipe product specifications

Inner DiameterDN/ID	Length(m)	Ring Stiffness	Ring Stiffness
200	6M	SN4 4KN/㎡	SN8 8KN/㎡
300	6M	SN4 4KN/㎡	SN8 8KN/㎡
400	6M	SN4 4KN/㎡	SN8 8KN/㎡
500	6M	SN4 4KN/㎡	SN8 8KN/㎡
600	6M	SN4 4KN/㎡	SN8 8KN/㎡
800	6M	SN4 4KN/㎡	SN8 8KN/㎡

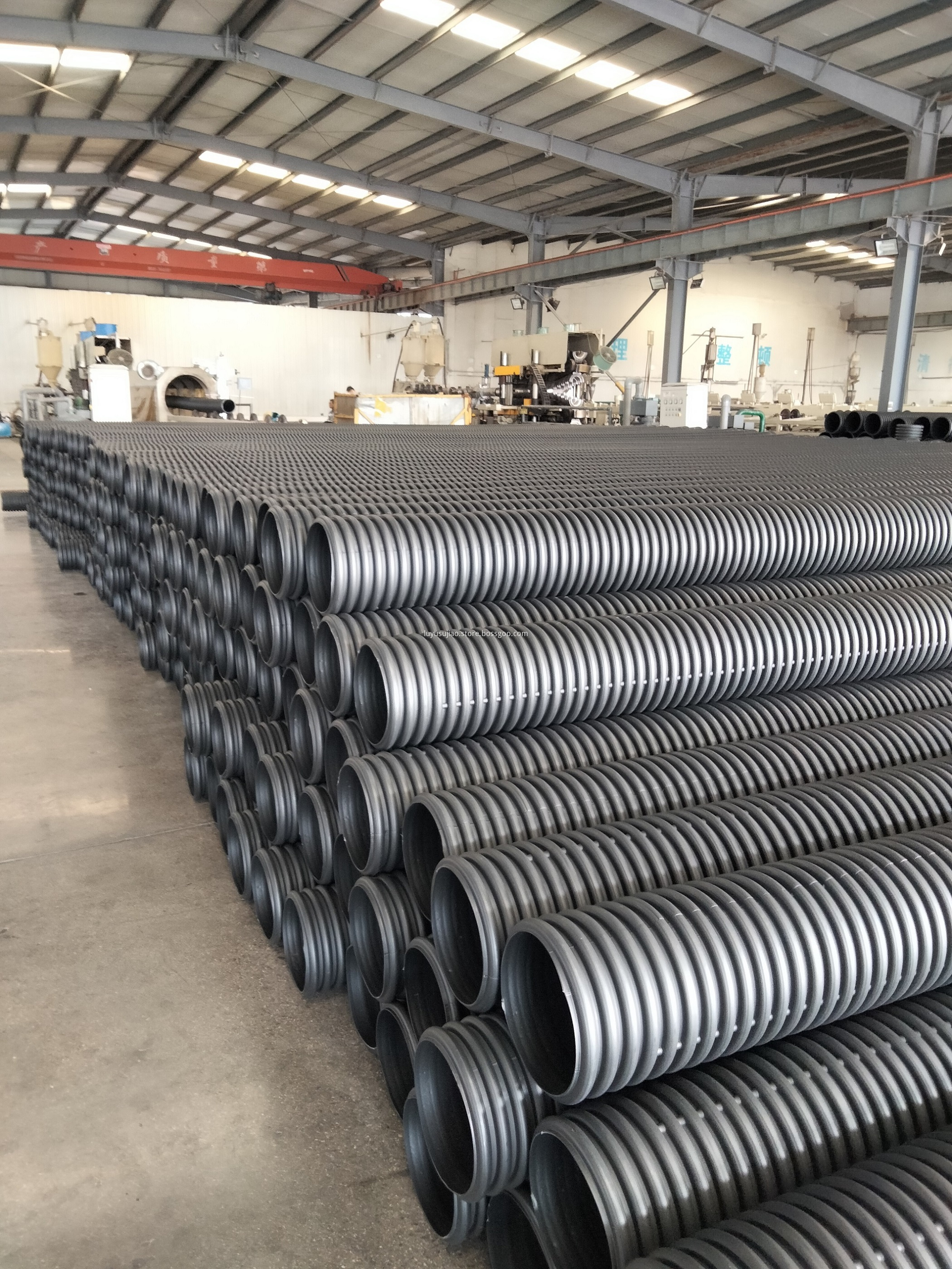

HDPE Corrugated Pipe for Sewerage Buried Drainage

PE drainage pipe for Underground Use

Polyethylene (PE) double-wall corrugated pipes for underground use are made with polyethylene (PE) resin

the main raw material,added with necessary performance-enhancing additives, and formed by

plasticizing alextrusion. The cross-section of the pipe wall is a double-layer structure: the inner wall is smooth and flat, wtthe outer wall is equipped with trapezoidal or arc-shaped hollow structures arranged at equal intervals. With special structure,

attractive appearance, excellent ring stiffness, and large diameter, it also boasts good flexi and low-temperature impact resistance. The joints adopt flexible connection with elastic rubber rings, ensuri

reliable connection and being less prone to leakage. Additionally,

it is convenient for transportation and construction, making it the preferred choice for large-diameter underground plastic drainage and sewage pip.

1. Special structure, attractive appearance, energy-saving and high-efficiency, and low comprehensive proje

cost.

2. Corrosion-resistant, non-toxic and pollution-free, with a long service life.

3. Smooth inner wall, low fluid resistance, non-scaling, wear-resistant, and strong water-passing capacity.

4. Convenient and fast construction, cost-saving, reliable connection, and less prone to leakage.

5. Lightweight, easy to load, unload and transport.

6. Good flexibility and excellent resistance to uneven settlement, suitable for soft soil and quicksand foundat.
