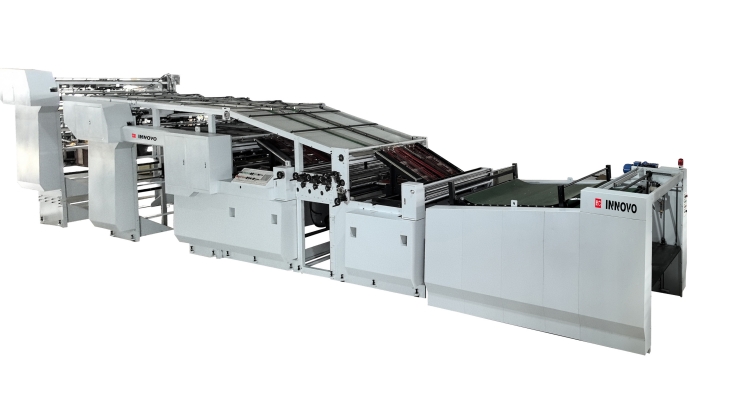

High-speed Three-in-one Cardboard Laminator
Main functions：
SFCB Series Fully-Automatic High-Speed Rear-Suction Laminating Machine is a specialized equipment developed by our company combining the best features of domestic and international counterparts. It is specifically designed for premium wine boxes and high-end color cardboard lamination, this machine offers optional configurations including high-speed automatic paper feeding system, precision glue adjustment rollers, auto-position tracking system, HMI automatic control, and non-stop paper feeding mechanism.
Features
1. Paper Feeding system: It adopt advanced front-suction paper feeder system (Top paper, intermediate layer,bottom paper), paper feeding speed is up to 7500 pieces per hour, the suction nozzle can be stretched, transmission adjusts suction nozzle height and tilt angle, to adjust the curled paper level freely and transmit to coating machine smoothly.
2.Conveying system: By using the speed difference between the conveyor and the paper stop, the paper is caught up with the front paper stopper and synchronized with the side paper stopper for positioning. The two papers (top paper and bottom paper) can accurately align with the side and front paper stoppers during movement.
3.Conveying system: By using the speed difference between the conveyor and the paper stop, the paper is caught up with the front paper stopper and synchronized with the side paper stopper for positioning. The two papers (top paper and bottom paper) can accurately align with the side and front paper stoppers during movement.
4. Pressurized conveying system: The speed and length of the pressurized conveying paper can be electrically adjusted, making it easy to convert the size of the cardboard. The paper can be stacked and pressurized to be conveyed out, or the speed can be increased to press the cardboard separately to be conveyed out; The newly added pressure roller set can re-pressurize and convey the pressurized finished products separately, making the products more flat and exquisite.
5.Delivery System: Shaking-to-loose type delivery system can shake to loose the overlapped
papers to ensure orderly and smooth delivery of papers, it can increase efficiency and save manual operation work time. (Non-stop delivery system is optional)
6.Full machine control system :Control system uses movement control system, computer display, HMI touch screen, it has the real-time monitor display for machine running, pre-warning in time for quick troubleshooting.
7. Full machine control system :Control system uses movement control system, computer display, HMI touch screen, it has the real-time monitor display for machine running, pre-warning in time for quick troubleshooting.
8..Drive System: Drive system uses smooth and even power drive distribution by a complete set of imported timer belts, it has characteristics of free maintenance, low noise and high efficiency.
Main parameters:
|
Model |
SFCB-1150 |
|
Max size |
750*1180mm |
|
Min size |
280*430mm |
|
Top paper weight |
80-800gsm |
|
Bottom paper weight |
250-3600gsm |
|
Working speed |
10000pcs/hour |
|
Lamination precision |
±0.3mm |
|
Power |
13KW |
|
Machine weight |
7500KG |
Mark: 960mm * 1180mm is optional for max. Size
