Frame: 40x60 or 20x40 mm square tube | Size: 1000 to 2400 mm high, 800 to 6000 mm wide | Finish: white, grey, black or green
A galvanized garden gate is a framed leaf that closes an opening in a garden fence. We weld 40x60 mm or 20x40 mm square tube into the frame, fix welded wire mesh, chain link or tubular infill inside it, hot-dip galvanize the steel, then powder coat it in white, grey, black or green, and set the leaf on 60x60, 80x80 or 100x100 mm square posts.

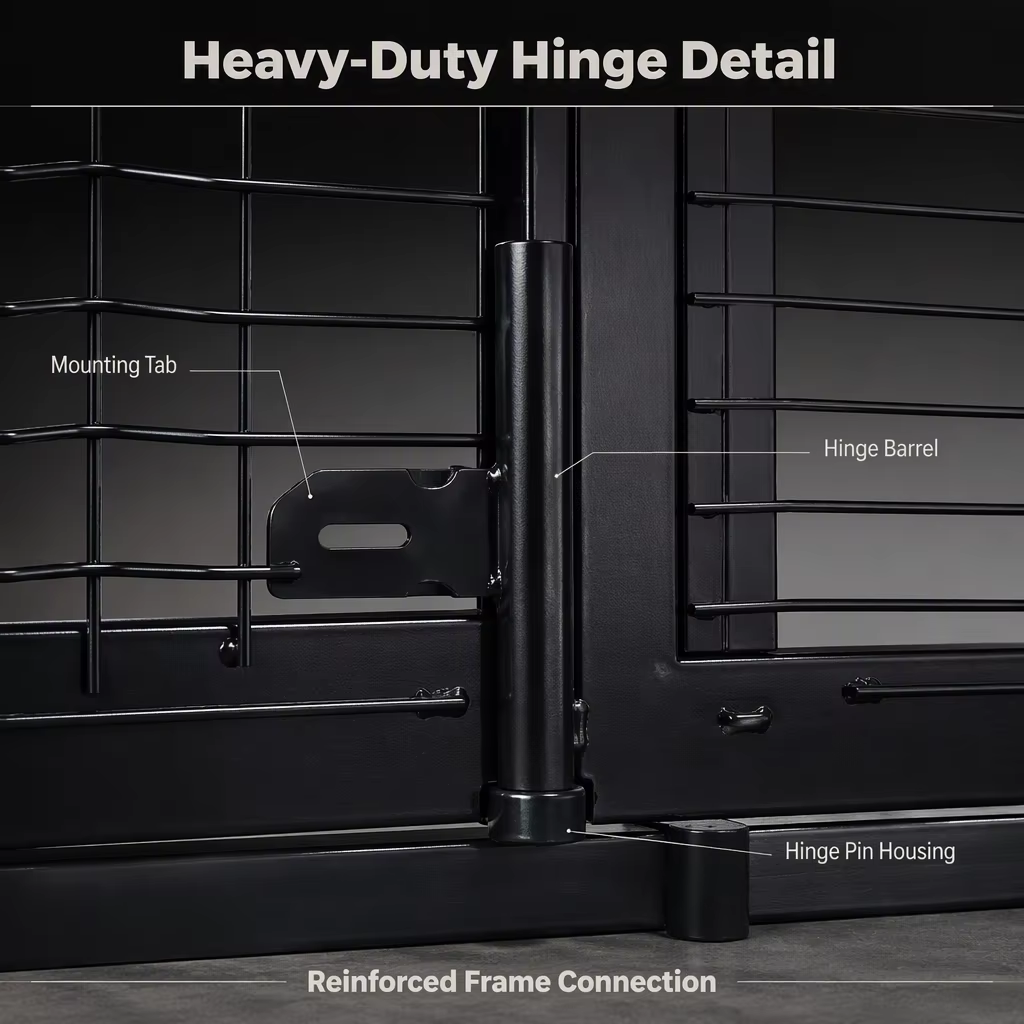

A close view of the hinge on a black powder coated leaf: the mounting tab is welded to the leaf, the barrel carries the pin, and the pin housing sits on the post side.

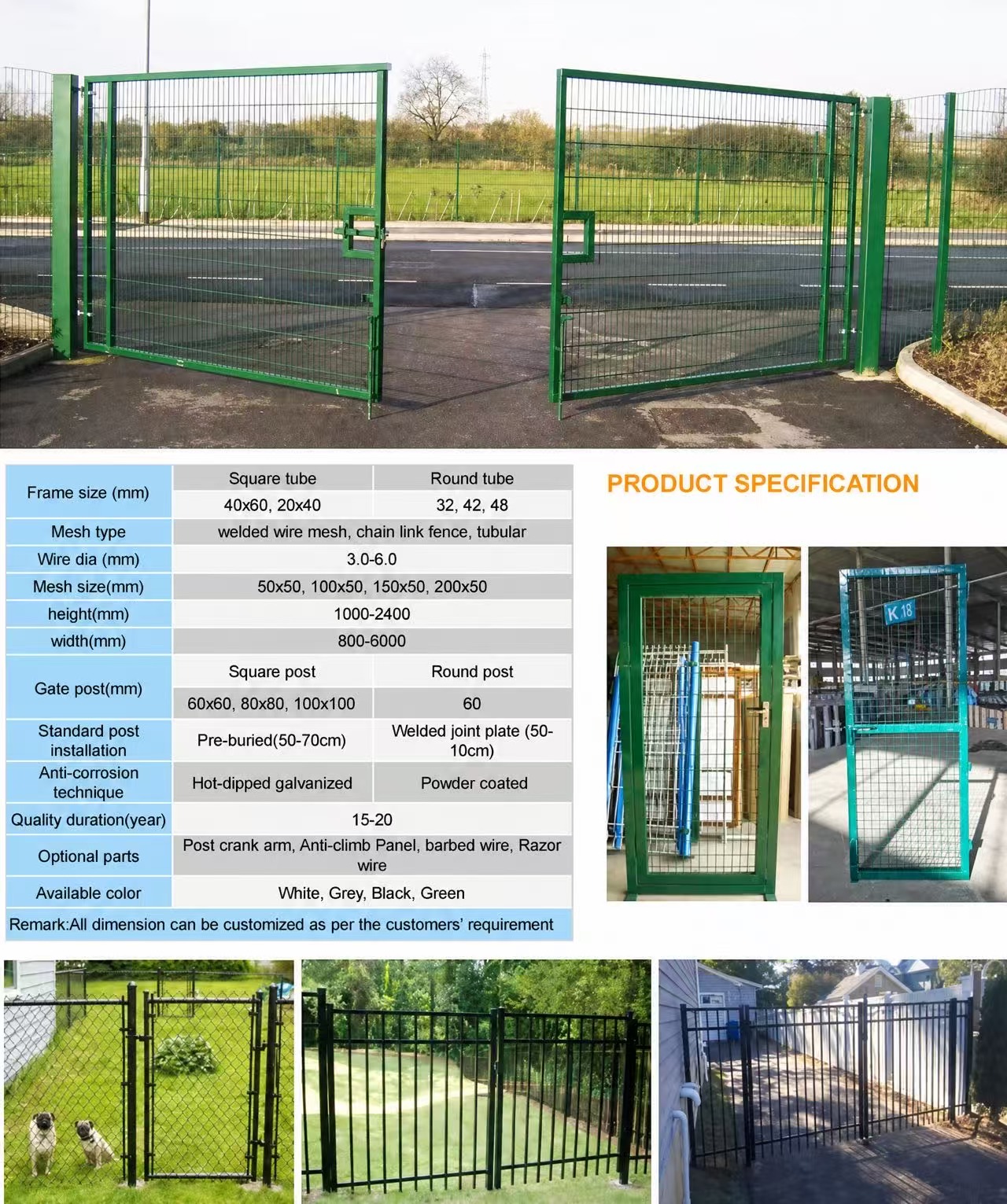

The range on one sheet: green leaves fitted to square posts, a green leaf in the workshop, and black gates on gardens and drives. Every dimension can be made to your opening.

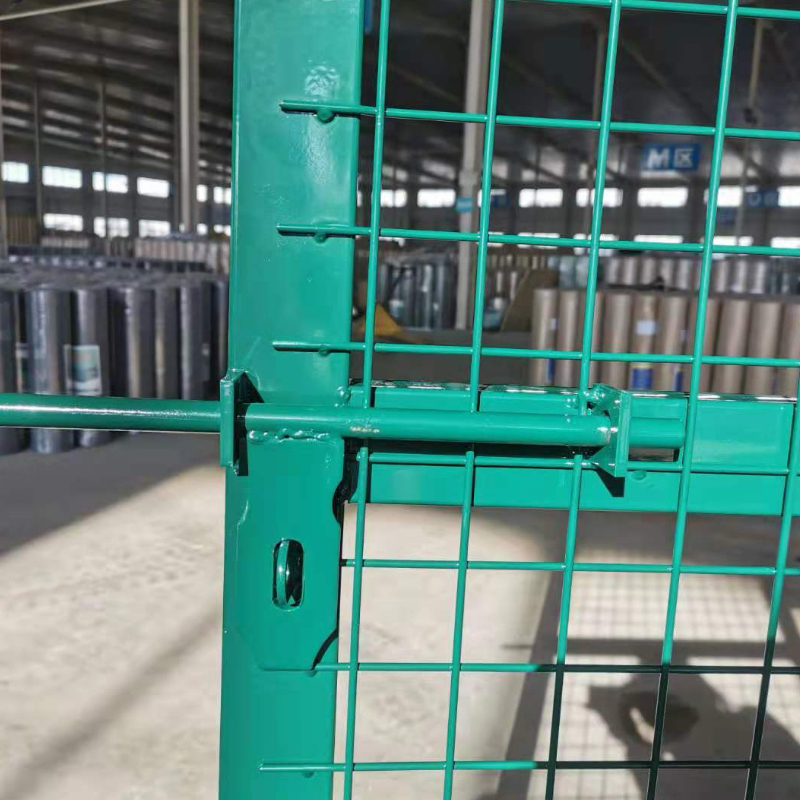

A green leaf in the workshop with welded wire mesh set inside the tube frame. The closing edge carries the bolt and striker, and the hinge bracket is welded on the hanging edge.

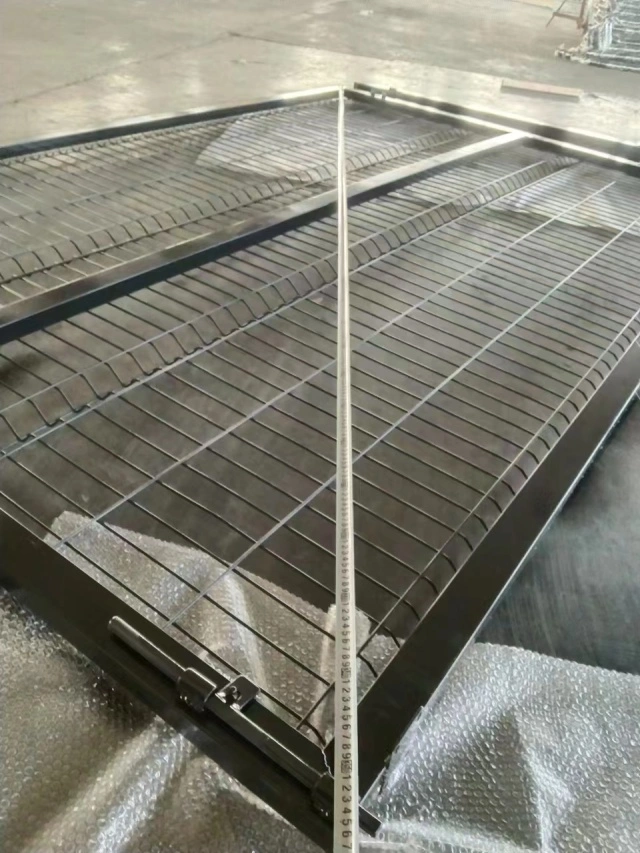

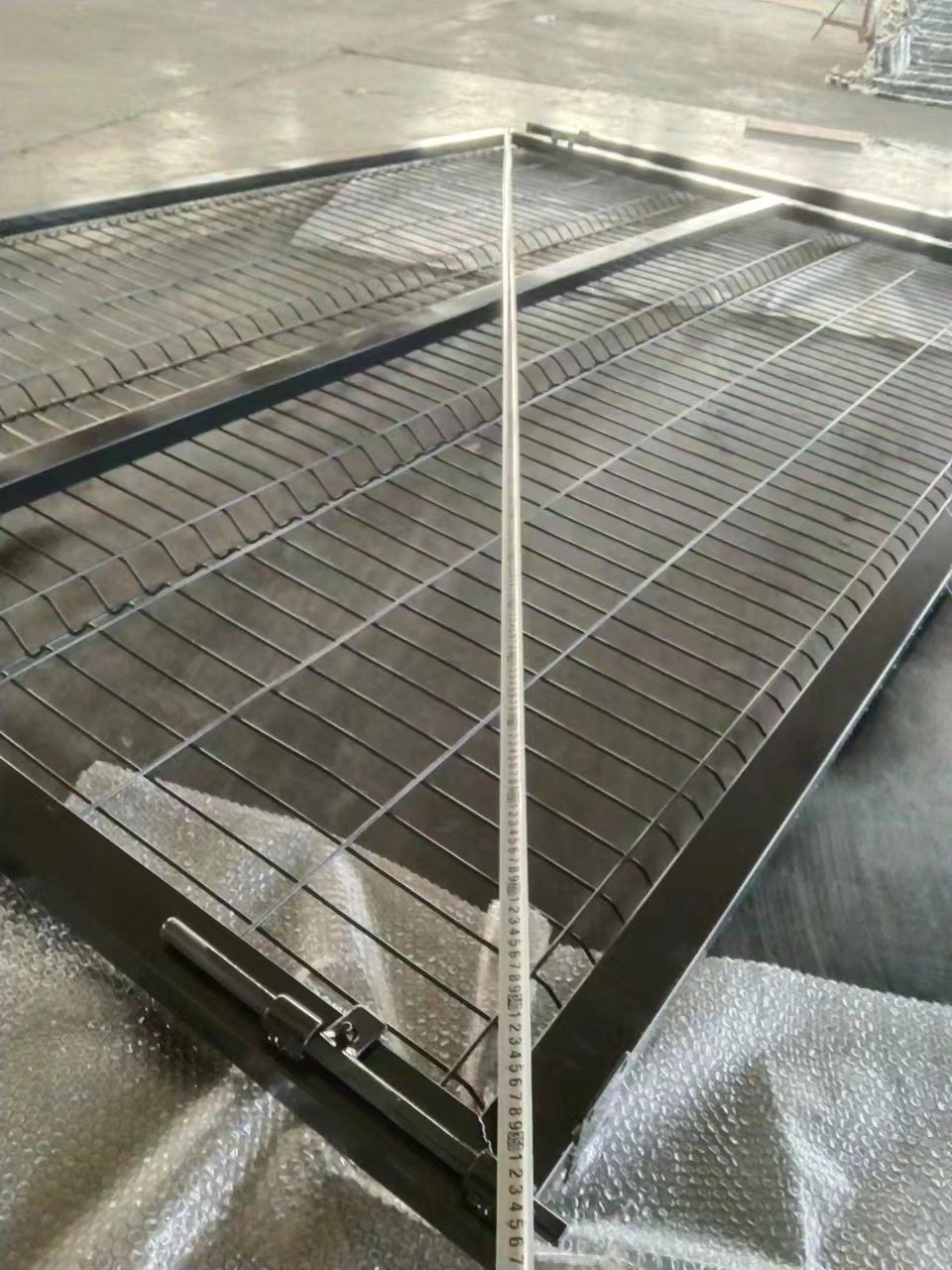

A framed leaf on the assembly floor with a tape run across it, checking frame size before wrapping. The bare silver surface is the hot-dip galvanized tube.
| Parameter | Standard Range | Common Options |
|---|---|---|
| Infill Type | Welded wire mesh | Chain link, tubular |
| Frame Section | Square tube 40x60, 20x40 mm | Round tube 32, 42, 48 mm |
| Wire Diameter | 3.0 to 6.0 mm | Set to the infill |
| Mesh Opening | 50x50, 100x50, 150x50 mm | 200x50 mm |
| Gate Height | 1000 to 2400 mm | Matched to the fence line |
| Gate Width | 800 to 6000 mm | Single or double leaf |
| Gate Post | Square 60x60, 80x80, 100x100 mm | Round 60 mm |
| Post Fixing | Pre-buried 50 to 70 cm | Welded joint plate 50 to 10 cm |
| Corrosion Protection | Hot-dip galvanized | Powder coated |
| Colour | White, grey, black, green | To your sample |
| Optional Parts | Post crank arm, anti-climb panel | Barbed wire, razor wire |
*Customized production are available as per the customer's option.
The leaf is welded into a rectangle from square tube, so it holds its shape while it hangs and swings clear of the ground.
The mounting tab is welded to the leaf, the barrel rides on a pin held in the post housing, and a bolt with a striker closes the leaf against the post.
The frame and mesh are hot-dip galvanized, so the steel is coated inside and out, including the cut tube ends and the mesh crossings.
A powder coat goes over the galvanized steel in white, grey, black or green, giving the gate its colour and a second barrier to the weather.
A single leaf 1000 to 1400 mm high closes a path or a lawn edge without shutting the view out.
Two leaves 1500 to 2400 mm high close a drive and meet at the centre, where they bolt into one striker.
Where salt air or standing water sit against the steel, the galvanized layer is the reason to pick this gate over a painted one.
An anti-climb panel or a post crank arm can be added where the gate has to stay shut at night.
Galvanizing covers the bare steel and the powder coat covers the galvanizing.
Leaves run 1000 to 2400 mm high and 800 to 6000 mm wide, single or paired.
Welded wire mesh, chain link or tubular, at openings of 50x50 to 200x50 mm.
Our own 70,000 sq m factory runs under ISO 9001:2015 and supplies 80+ countries.
Send the opening, the infill and the colour, and we build the leaf to it.
Leaves are wrapped and banded with their posts so the coating does not rub through.
Steel tube is cut and welded into the leaf frame, the infill is fixed inside it, the leaf is hot-dip galvanized, and the powder coat goes on last in your colour.
Checks run against the order and the approved sample: wire diameter, mesh openings, frame size with a tape, coating colour and coverage, and the travel of the hinge and bolt.
Leaves are wrapped so the coating does not rub through, then banded with the posts. Marks are stencilled as instructed.
Galvanized welded wire mesh panel, chain link fence, euro fence, 3D welded mesh fence.
ANJIA Group, trading as HEBEI CONQUER HARDWARE WIRE MESH CO., LTD, has made wire fencing since 1996 in Anping County, Hebei, China. Our 70,000 sq m factory runs under ISO 9001:2015 and ISO 14001:2015 and ships to 80+ countries.
