Product details

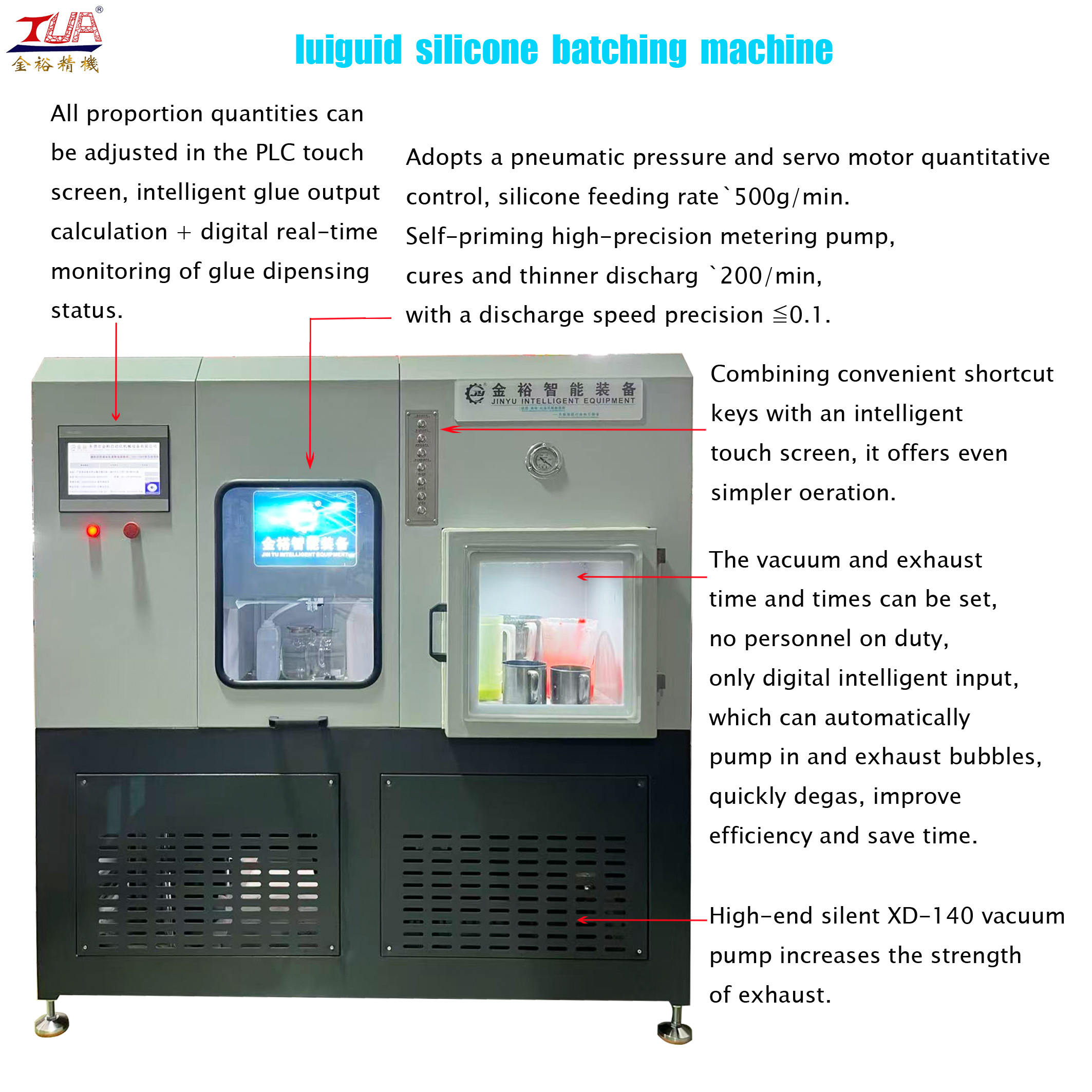

The liquid silicone rubber dosing and batching machine is featured as follows:

1. Machine Structure: The main frame is welded with square steel profiles, ensuring high structural stability and reliability. Sheet metal parts are integrally processed by laser cutting and bending. The surface is finished with paint coating, providing both anti‑rust protection and an attractive appearance.

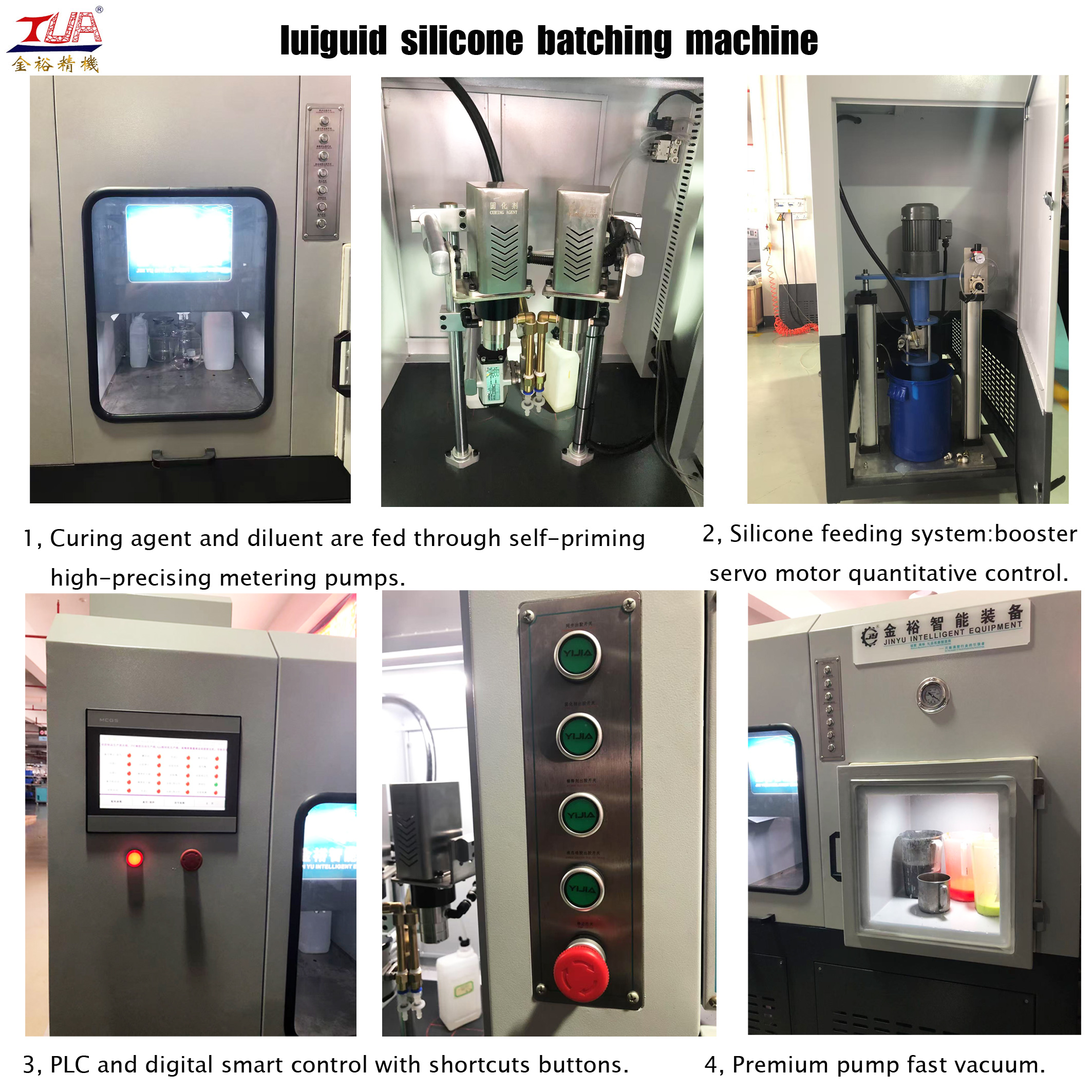

2. Silicone Supply System: Adopts a pneumatic pressure plate feeding structure for stable material supply. Equipped with a servo motor for quantitative control, ensuring high dispensing accuracy and fast response. Dispensing speed: approximately 500 g/min. Curing Agent / Thinner Supply System. Uses self‑priming high‑precision metering pumps. Driven by stepper motors for high metering accuracy. Dispensing accuracy: ±0.01 g. Dispensing speed: approximately 200 g/min.

4. Vacuum System : Equipped with a rotary vane silent vacuum pump (model XD‑400). Drive motor power: 4 kW. Vacuum pumping capacity: up to 200 m³/h, enabling fast vacuuming to effectively remove bubbles from the material.

5. Electrical Control & Intelligent Functions: Control system: PLC + HMI (human‑machine interface) for intuitive and easy operation. Core functions include: Intelligent calculation of dispensing volume; Digital real‑time monitoring of dispensing status; Programmable automatic dispensing, weighing, emptying and degassing cycles.

This Jinyu Machinery's liquid silicone rubber dosing and batching machine effectively solves the batching challenges for multi‑color silicone product manufacturers, making the batching process more accurate, more automated and much more efficient.

It is especially suitable for: Silicone garment label manufacturers, Multi‑color silicone products manufacturers, Silicone children’s products manufacturers, various industries.

The Silicone machine is mainly used in the silicone injection molding process and serves as a key process equipment in a complete silicone molding production line. You can check more silicone machines : silicone dispensing machine, silicone hydrualic machine, silicone embossing machine, LSR silicone injeciton molding machine, etc.
