AHD PVDF Rod Product Details: The "Corrosion-Resistant Special Forces" of the Plastics Industry, 31 Years of Craftsmanship
As a company with 31 years of experience in the plastic sheet and rod industry, AHD has witnessed countless instances of equipment damage and production stoppages caused by material corrosion. Today, we'll discuss PVDF rods (Polyvinylidene Fluoride Rods), considered the "ceiling of corrosion-resistant engineering plastics," capable of withstanding aqua regia erosion and remaining stable at high temperatures. Let's break down PVDF rods in a casual, conversational style—from "what it is" to "how to use it," and finally, "why choose AHD"—all practical information.

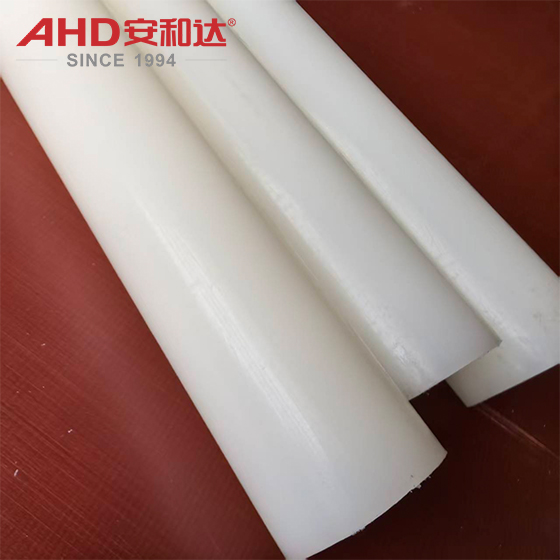

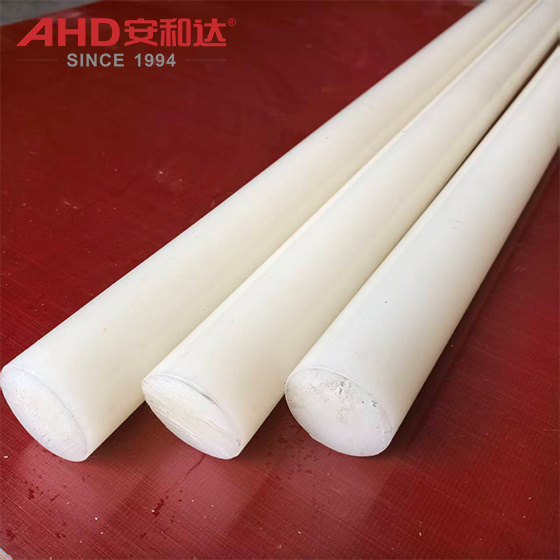

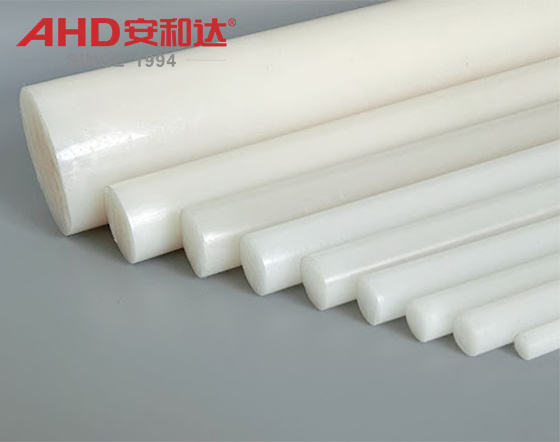

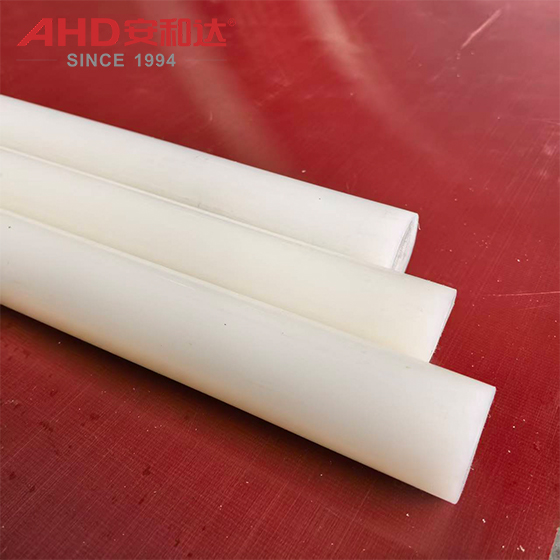

AHD PVDF Plastic Rod, somebody called PVDF Rod as Kynar Rod.
Ⅰ. What is a PVDF Rod?
PVDF rods, short for polyvinylidene fluoride rods, are high-molecular-weight material rods polymerized from vinylidene fluoride monomers (CH₂=CF₂) and formed through an extrusion process. You can think of it as a "hybrid aristocrat in the plastics world": it has the extreme corrosion resistance of fluoroplastics and the mechanical strength of engineering plastics. Even its molecular structure has a "stability compulsion" - the carbon-fluorine bond (C-F) bond energy is as high as 485kJ/mol (more than twice that of the carbon-hydrogen bond), which gives it a natural "durability".
Ⅱ. Core Characteristics and Advantages of PVDF Rods
If ordinary plastics are "ordinary anti-corrosion materials," PVDF rods are "king-level anti-corrosion warriors." Their advantage isn't a single-point breakthrough, but rather all-dimensional resistance.
1. Strongest Chemical Corrosion Resistance:
All-round corrosion resistance: Except for fuming sulfuric acid and strong oxidants (such as a mixture of concentrated nitric acid and hydrogen peroxide), it is almost insoluble in any organic solvent (it can withstand acids, alkalis, oils, and halogenated hydrocarbons). Even the "plastic killer," sodium hydroxide solution (50% concentration), is ineffective against it.
2. Mechanical Properties:
High strength and high toughness: Tensile strength reaches 38MPa, elongation at break 26%, able to withstand impact without brittle fracture (compared to PTFE rods, the latter has higher elongation but half the strength).
Low coefficient of friction: 0.3 (dry friction), reducing wear when used in bearings and seals.
3. Temperature and Weather Resistance:
Wide Temperature Range Adaptability: Long-term operating temperature -40℃ to 120℃ (short-term withstand 145℃), does not crack in the cold winters of the north, and does not deform in the hot summers of the south.
UV and Radiation Resistance: Performance degradation <10% after 5 years of outdoor exposure (even better with the addition of UV stabilizers), commonly used in nuclear power plants and photovoltaic brackets.
4. Electrical Insulation and Flame Retardancy:
High Insulation: Volume resistivity >10¹⁴Ω·cm, breakdown voltage 30kV/mm, a "must-have" in the electronics and electrical appliance industry.
Self-extinguishing Property: Oxygen index >43% (UL94 V-0 rating), automatically extinguishes when removed from a fire source, eliminating fire hazards.
5. Processability
Ease of Processing: Compared to PTFE (requires cold pressing and sintering) and PEEK (processing temperature exceeding 300℃), PVDF rods have a melting point of only 170℃, can be processed using ordinary lathes and milling machines, and can even be hot-bent, saving equipment and money.
Ⅲ. Applications of PVDF Rods
1. Chemical Industry and Environmental Protection
Corrosion-resistant components: stirring shafts, sealing rings, sight glass frames (replaces stainless steel, avoids intergranular corrosion);
Waste gas treatment: spray tower nozzles, packing supports (resistant to acid and alkali waste gas corrosion);
2. Semiconductor and Electronics
Wafer processing: etching equipment seals (resistant to hydrofluoric acid and ammonia);
Cable insulation: high-frequency cable sheaths (low dielectric loss, stable signal transmission);
3. Food and Pharmaceutical
FDA certification: meets standards, can directly contact food (e.g., guide rods in beverage bottling lines);
Pharmaceutical equipment: drug delivery pipelines, sterilizer accessories (resistant to steam sterilization, repeated use at 121℃ without deformation).
4. New Energy
Photovoltaic brackets: PVDF rods are used as fasteners in coastal power plants (resistant to salt spray corrosion, lifespan 25+ years);
Lithium-ion battery separator coating: improves the high-temperature resistance of batteries (indirect application, rods can be processed into coating substrates).
Ⅳ. Storage and Processing Precautions
Storage:
Environment: Dry and well-ventilated (humidity < 60%), away from light and heat sources (> 50℃ may cause deformation);
Stacking: Stand upright with wooden blocks underneath (10cm off the ground), stacking height ≤ 1.5m (to prevent bending);
Processing:
Do not use chlorine-containing cutting fluid: PVDF is prone to stress cracking when exposed to chloride ions. Pure oil-based coolant is recommended;
Avoid rapid heating and cooling: Allow to cool naturally after processing (do not water cool), otherwise internal stress will lead to cracking later;
Do not over-polish: Surface roughness Ra > 0.8μm is sufficient (too smooth will affect sealing).
Ⅴ. Why Choose AHD PVDF Rods? 31 Years of Dedicated Service: Ensuring Your Peace of Mind
As a leading domestic manufacturer of plastic sheet rods, AHD's rods have three key differences:
Strict Raw Material Selection: Using only high-quality PVDF resin (high purity), rejecting recycled materials;
Process Quality Control: Maintaining constant temperature throughout the extrusion and cooling process, ensuring small rod diameter tolerances;
Comprehensive Service: Providing material performance data sheets, and offering professional analysis for any processing or usage issues.
Your Corrosion Prevention Challenges: AHD's 31 Years of Experience
Whether it's the highly corrosive environment of a chemical plant or the precision requirements of a semiconductor cleanroom, AHD's PVDF rods can become durable components for your equipment.
Welcome to contact us to receive free samples and material recommendations—after all, good materials shouldn't be something you "guess," but something you "try."
