Printing stretch film machine

2 month ago

6 0

RUIAN HENGTUO MACHINERY CO.,LTD.

 12 month year

Product details

introduce

This machine uses LDPE and LLDPE to produce casting stretch film(could produce one-side sticky film and the other side normal), adopting double screws and two hoppers. This co-extrusion stretch film is widely used in packing area for architecture, auto parts, hardware parts,etc.

Characteristics

1. Screw and cylinder are all made of 38 CrMoALA after nitrogen treatment, which has an advantage of corrosion resistance and endurance, etc.

2. The cooling device adopts cycle water cooling which provide the best transparent effect of the stretch film 3. Rewinder adopts with friction-rewinding-type, with cutter device for edge correcting.

Main Technical Parameters：

Model	HT-1000	HT-1500	HT-2000
Screw diameter	55/70	70/90	70/110
L/D	32:1	32:1	32:1
Finished film width	1000mm	1500mm	2000mm
Max. extrusion output	100kg/h	180kg/h	260kg/h
Main motor power	15/22kw	22/37kw	22/75kw

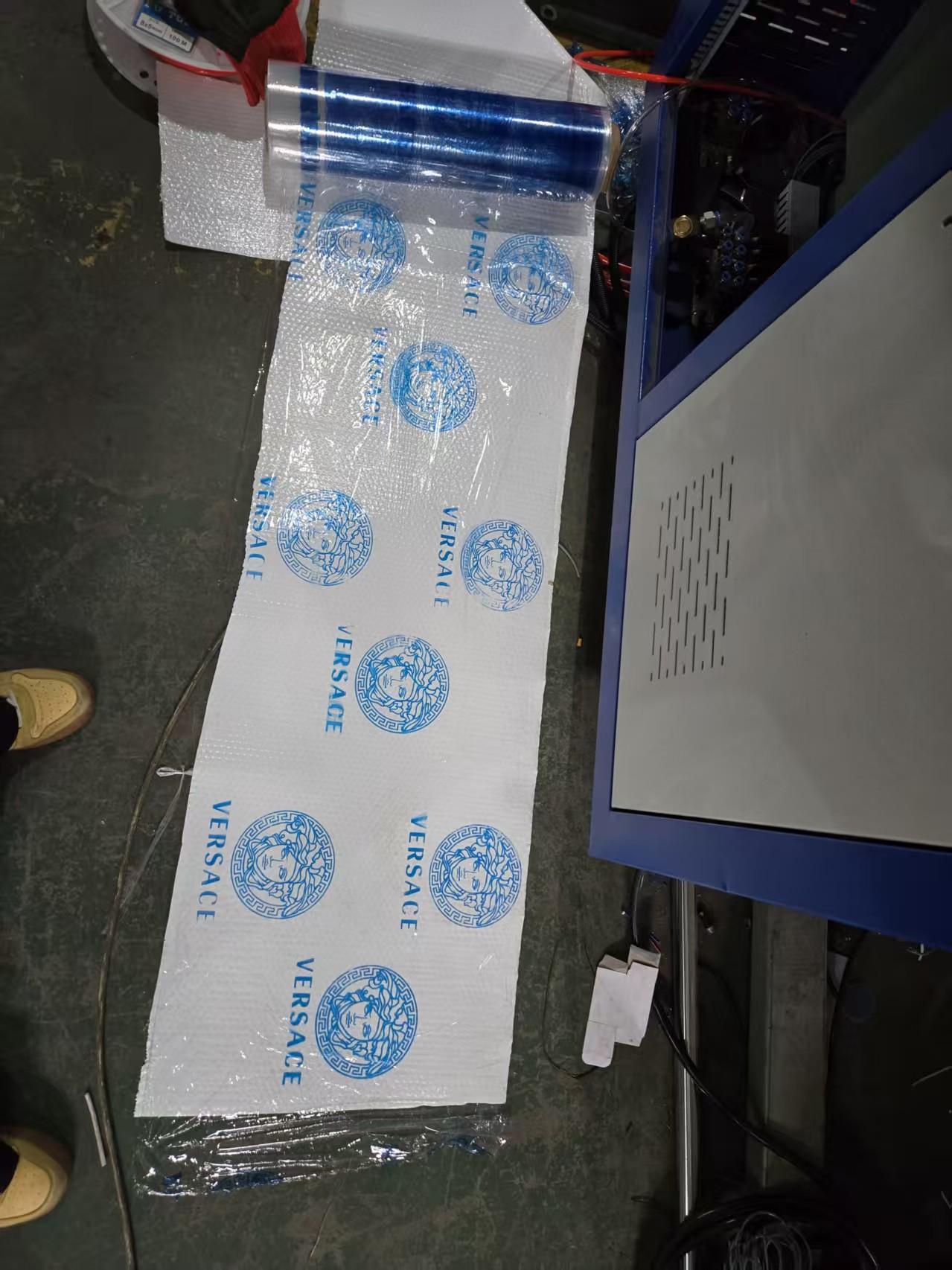

Printing section

We can use flexographic ink for printing. You can customize the printing plate yourself or have it customized by us. A maximum of two colors can be printed. Excessive printing colors will cause the equipment to fail to operate at a normal speed, resulting in slow production. The stretch film equipment with printing function is a semi-automatic device and requires manual loading and unloading of paper tubes.
