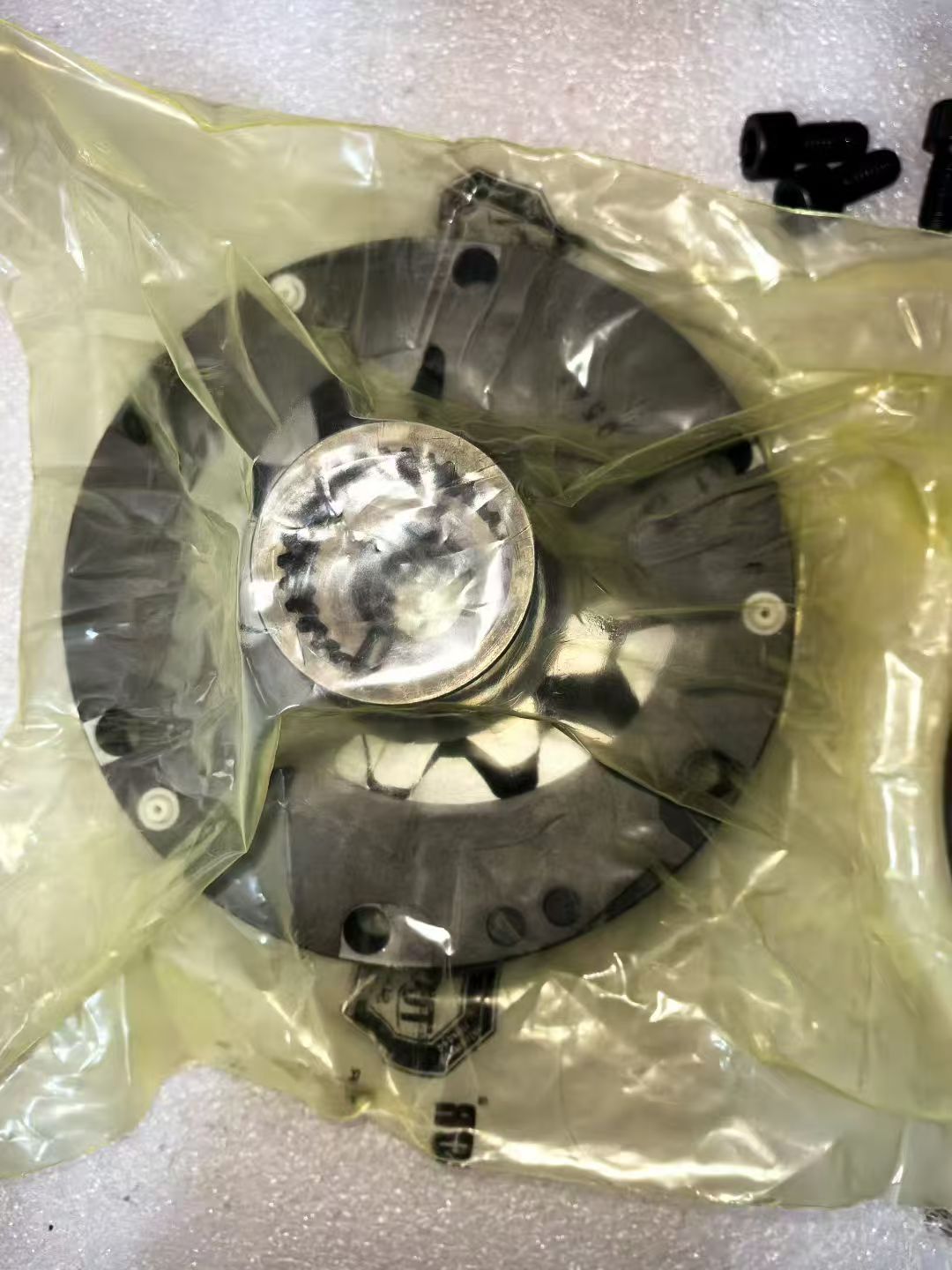

A4VG180 in series with another 180 charge pump

A4VG180 in series with another 180 charge pump

2 month ago

6 0

Ningbo Hengnuo Hydraulic Drive Co.,Ltd

 4 year year

Product details

1. Configuration Structure Analysis

• Main Pump (A4VG180)

• Type: Closed-loop variable displacement axial piston pump.

• Displacement: 180 cm³/rev (adjustable via swashplate mechanism to regulate output flow).

• Core Function: Provides high-pressure hydraulic power to drive actuators (e.g., motors, cylinders).

• Series-Connected Charge Pump (180 Charge Pump)

• Type: Typically a fixed-displacement gear pump or small-displacement piston pump.

• Displacement:Note: If "180" refers to the charge pump's displacement, it is unusually large (charge pumps usually range from 28–50 cm³/rev). Clarification is needed.

• Core Functions:

• Charge Supply: Replenishes hydraulic fluid to the low-pressure side of the closed loop to compensate for internal leakage and maintain system pressure stability.

• Cooling: Circulates oil to dissipate heat and prevent overheating.

• Lubrication: Supplies oil to bearings and friction pairs in the pump/motor.

Clarification Note:

If "180 charge pump" indicates a charge pump with 180 cm³/rev displacement, this would be atypical (charge pumps are generally much smaller than main pumps). More commonly, an A4VG180 main pump is paired with a smaller charge pump (e.g., 28 cm³/rev). Verify model specifications.

------

2. Typical Application Scenarios

• Closed-Loop Hydraulic Systems(e.g., construction machinery, marine propulsion):

• Main Pump: Drives travel motors or slewing motors for equipment movement or steering.

• Charge Pump: Ensures sufficient oil in the closed loop to prevent cavitation or pressure fluctuations.

• Examples: Excavator travel drives, road roller vibration systems, crane slewing mechanisms.

• High-Pressure, High-Flow Demands:

• The main pump (A4VG180) provides high-pressure power, while the charge pump (if large-displacement) may also supply oil to auxiliary circuits (e.g., pilot control lines).

------

3. Technical Advantages

• Efficient Charge Supply: Precisely controls replenishment volume to minimize energy loss.

• System Protection: Prevents pressure drops due to leakage in closed loops, extending main pump lifespan.

• Integrated Design: Saves installation space and reduces piping complexity (charge pumps are often mounted directly on the main pump end cover).

------

4. Key Parameter Comparison (Assuming 28 cm³/rev Charge Pump)

【表格】

Parameter Main Pump (A4VG180) Charge Pump (28 cm³/rev)

Displacement 180 cm³/rev 28 cm³/rev

Rated Pressure 400 bar (max) 20–30 bar (charge pressure)

Speed Range 500–3000 rpm Synchronized with main pump

Drive Method Variable control (swashplate angle adjustment) Fixed output

------

5. Common Issues & Solutions

• Issue 1: Insufficient Charge Pressure

• Causes: Worn charge pump, clogged filter, air leaks in suction lines.

• Solutions: Check charge pump pressure sensor, replace filter, tighten line fittings.

• Issue 2: System Overheating

• Causes: Inadequate charge flow due to blockage or mismatched charge pump displacement.

• Solutions: Adjust charge pump displacement (if variable) or replace with a properly sized unit.

------

6. Selection Recommendations

• Verify Charge Pump Displacement: Choose based on system requirements (typically 5–15% of main pump displacement).

• Match Pressure Ratings: Ensure charge pump’s rated pressure exceeds the closed loop’s charge port pressure (usually 20–30 bar).

• Opt for Integrated Design: Prioritize models with built-in charge pumps (e.g., Rexroth A4VG series) for simplified installation.
