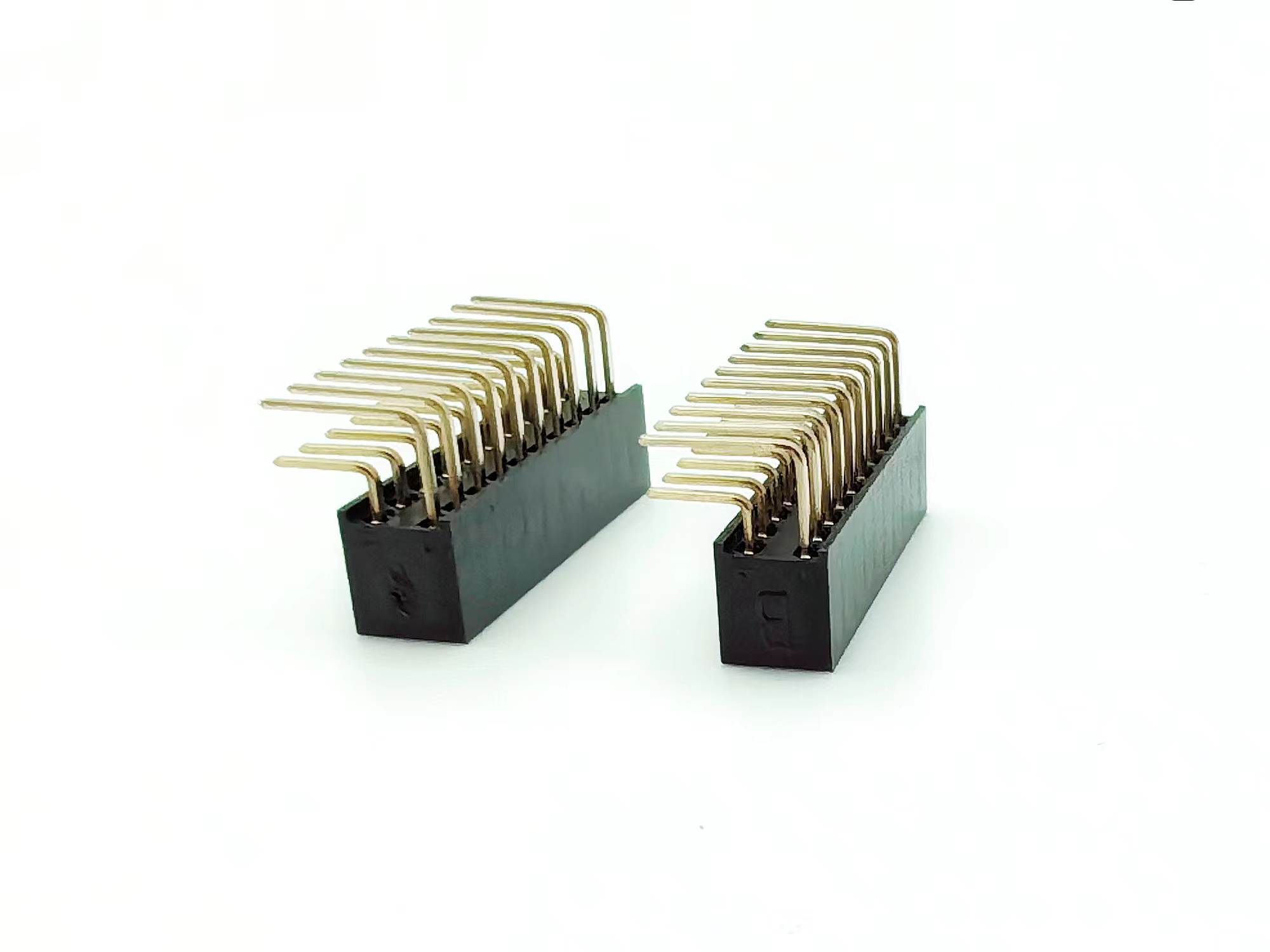

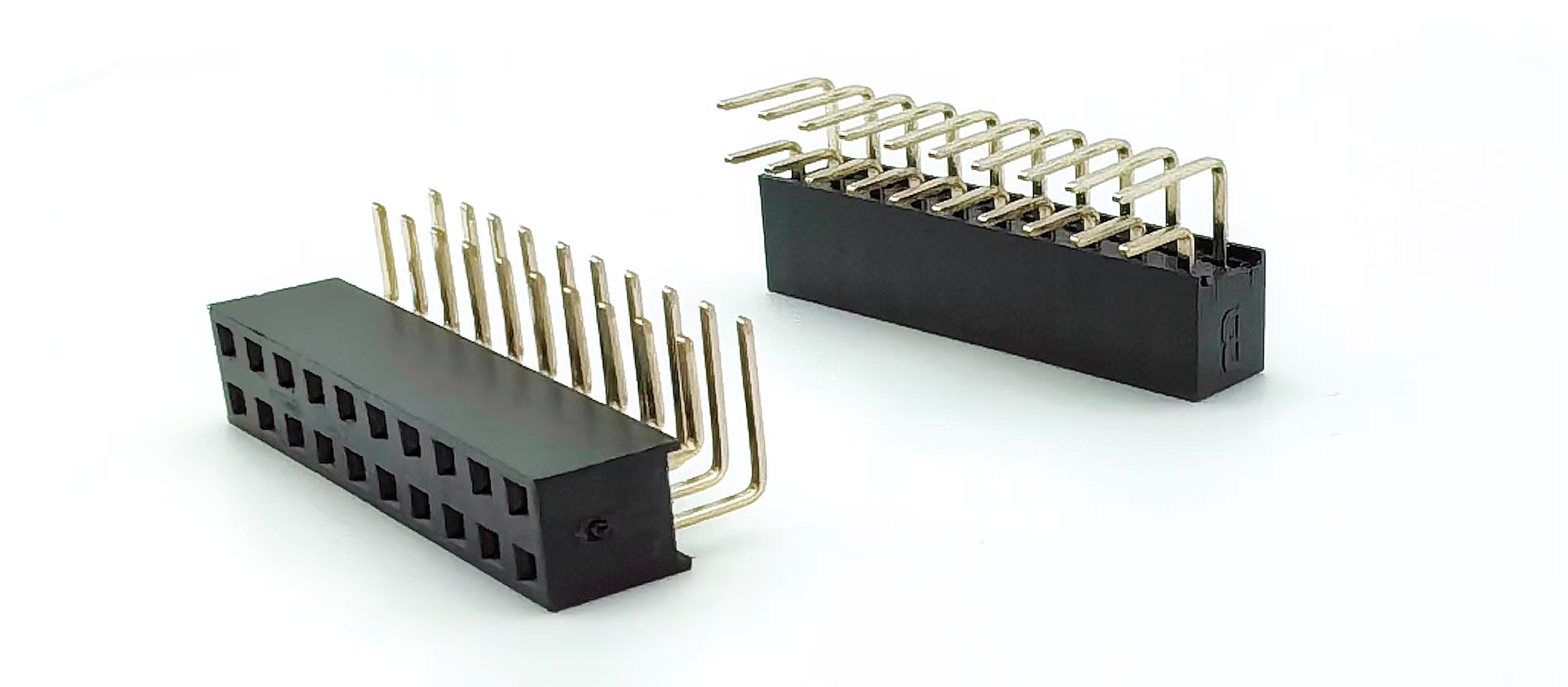

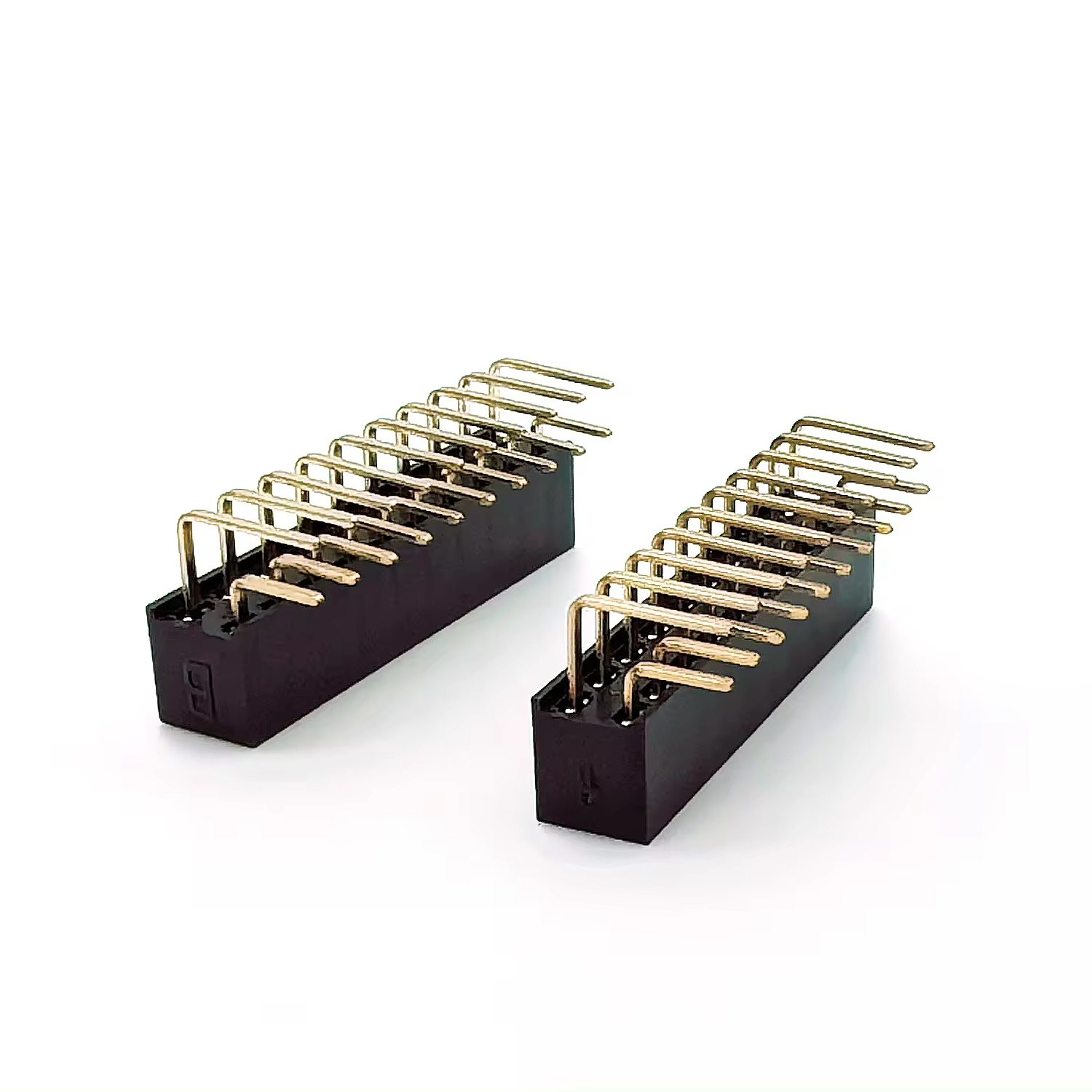

2.54mm Pitch Female Header Connector Dual Row Right Angle H5.7mm Y-type 20P

2 month ago

5 0

Shenzhen Yangzhan Electronics Co., Ltd.

 9 month year

Product details

YZTECH presents a high-performance 2.54mm pitch,dual-row female header engineered for reliability in demanding electronic applications.This right-angle,Y-type 20-pin female header connector facilitates efficient PCB stacking and parallel board-to-board connections,optimizing space in complex layouts.Constructed with a brass base and finished with selective gold plating on the contacts,it ensures excellent electrical conductivity and resistance to wear.The housing,made from high-temperature PBT material,provides superior insulation and mechanical strength,maintaining stable performance across an extensive operating temperature range from-40°C to+105°C.

Designed for seamless integration into modern production lines,this DIN-standard header connector features a bending insertion design for secure mounting and strain relief.Its tray packaging is optimized for automated pick-and-place equipment,significantly boosting assembly efficiency and minimizing handling errors.The electronic component withstands a maximum soldering temperature of 220°C for 10 seconds,ensuring integrity through reflow processes.With a robust rating of 3A current and 600V voltage,it delivers dependable power and signal transmission for industrial controls,automotive electronics,and telecommunications infrastructure,meeting stringent international quality and safety standards.

YZTECH is committed to supporting global partners with a reliable supply of high-quality interconnection components.This 2.54mm female header is part of a certified product line designed for consistent performance and longevity,reducing the total cost of ownership.We offer flexible order quantities and streamlined logistics,ensuring timely delivery for both prototyping and mass production needs.
