| HuiYa PVC fittings series | ||
| DIN | ANSI | JIS |
| PVC PN10 | PVC SCH40 | |
| PVC PN16 | PVC SCH80 | |

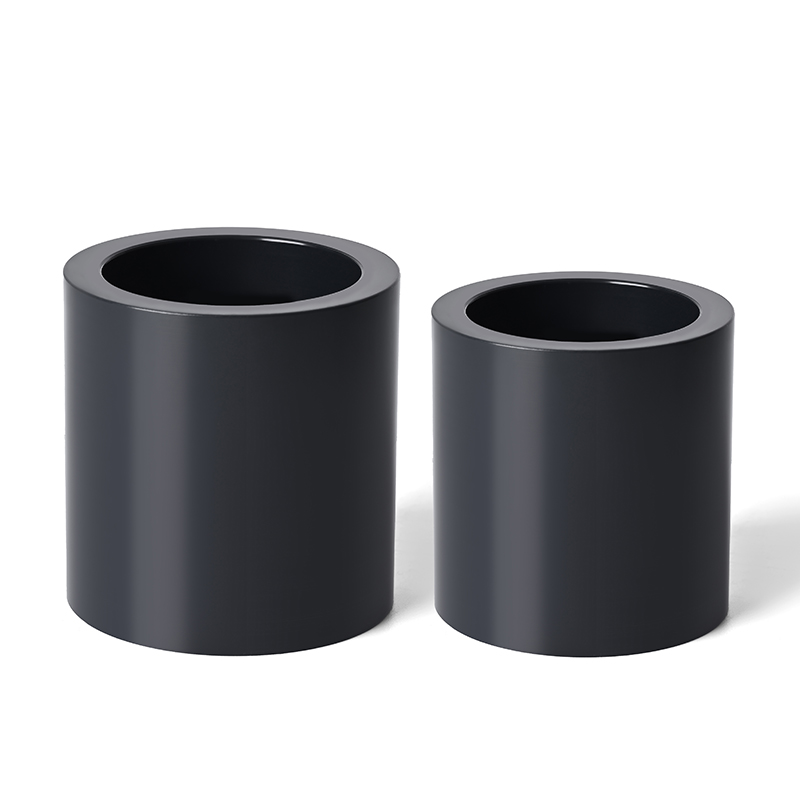

| Key Word: | High Quality UPVC Coupling DIN PN16 | |||
| Connect Type: | Cement-Glue-Socket | |||
| Brand: | HUIYA or OEM | |||
| Material: | PVC(PVC-U) | |||
| Specifications: | Size(dimensions): | DN15-20-25-32-40-50-65-80-100-125-150-200-250-300-350-400 | ||
| 20-25-32-40-50-63-75-90-110-125-140-160-200-225-280-315-355-400mm | ||||
| Color: | Grey | |||
| Standard: | ISO , ISO4422, , DIN8063,GB/T 4219.2 | |||
| Working pressure: | PN16(1.6Mpa) | |||
| Working temperature: | -15 to 55 Degree Celsius | |||
| Production Process: | Mold Injected | |||
| Packing: | Cartons | |||
| Advantage: | 1.100% virgin PVC material | |||
| 2.Environmentally friendly material, 100% no lead, zinc and other metals, water quality unaffected,harmless to the body | ||||
| 3.Strictly produced according to ISO standard | ||||
| 4.Long lifetime | ||||
| 5.The pressure resistance reaches 1.6 MPa, Good chemicals and drugs resistance | ||||
| Application: | Connected with PVC-U pipes for portable water supply，also can be used for corrosive medium transportation in chemical industry and other fields | |||
| HS Code: | 391740 | |||
| Certificate: | SGS | |||
As a leading Custom Logo PVC Fittings PN16 Supplier, we provide high-performance solutions for demanding industrial piping systems. Our flagship UPVC Straight Coupling PN16 is precision-engineered to withstand pressures up to 1.6 MPa, making it an essential component for high-pressure fluid

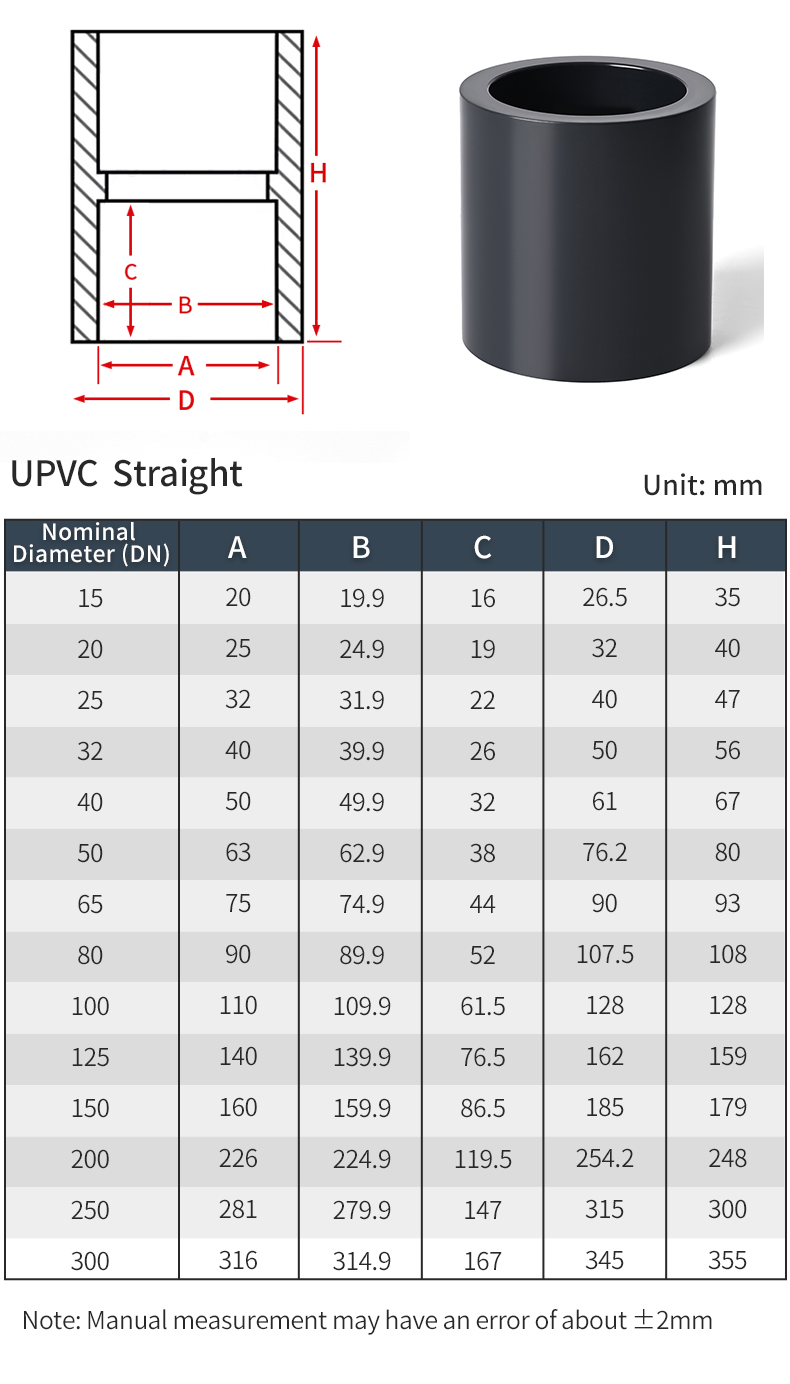

| PN16 PVC coupling dimensions chart (Unit: mm) | |||||||
| Nominal | Socket Type | Structural Diameter | |||||
| SIZE | d1 | d2 | I | D | d | L | |
| DN15 | 20mm PVC coupling | 20.3 | 20.0 | 16.0 | 27.0 | 17.0 | 37.3 |
| DN20 | 25mm PVC coupling | 25.3 | 25.0 | 19.0 | 33.0 | 23.0 | 42.0 |
| DN25 | 32mm PVC coupling | 32.3 | 32.0 | 22.0 | 40.5 | 29.0 | 49.4 |
| DN32 | 40mm PVC coupling | 40.4 | 40.0 | 26.0 | 52.0 | 37.0 | 57.0 |
| DN40 | 50mm PVC coupling | 50.4 | 50.0 | 31.0 | 61.0 | 47.0 | 68.0 |
| DN50 | 63mm PVC coupling | 63.4 | 63.0 | 38.0 | 75.0 | 60.0 | 82.0 |
| DN65 | 75mm PVC coupling | 75.5 | 75.0 | 44.0 | 89.4 | 72.0 | 95.0 |
| DN80 | 90mm PVC coupling | 90.5 | 90.0 | 51.0 | 107.3 | 87.1 | 111.2 |
| DN100 | 110mm PVC coupling | 110.5 | 110.1 | 61.0 | 131.0 | 106.1 | 133.0 |
| DN125 | 140mm PVC coupling | 140.6 | 140.1 | 76.0 | 167.2 | 133.0 | 158.0 |
| DN150 | 160mm PVC coupling | 160.6 | 160.1 | 86.0 | 185.0 | 154.0 | 179.5 |
| DN250 | 225mm PVC coupling | 225.8 | 225.1 | 118.0 | 257.0 | 218.0 | 252.0 |
| DN300 | 280mm PVC coupling | 281.5 | 280.1 | 148.5 | 323.8 | 271.0 | 308.0 |
| DN350 | 315mm PVC coupling | 317.0 | 314.9 | 167.0 | 364.0 | 304.0 | 345.0 |
| Industrial PVC COUPLING DIN PN16: Technical Data, Size Table,Price & Packing Details | |||||
| Size | Carton Size (cm) | Qty/Ctn | Weight (g/pc) | Price/Piece ($) | |
| DN15 | 20mm PVC COUPLING | 41*41*34 | 1440 | 11.65 | 0.05 |
| DN20 | 25mm PVC COUPLING | 52.5*38*37 | 1120 | 17.3 | 0.07 |
| DN25 | 32mm PVC COUPLING | 52.5*38*37 | 600 | 29.3 | 0.11 |
| DN32 | 40mm PVC COUPLING | 55*43*35 | 360 | 53.75 | 0.18 |
| DN40 | 50mm PVC COUPLING | 60*46*33 | 220 | 81.8 | 0.3 |
| DN50 | 63mm PVC COUPLING | 52.5*38*37 | 120 | 151.5 | 0.48 |
| DN65 | 75mm PVC COUPLING | 52.5*38*37 | 88 | 226.5 | 0.71 |
| DN80 | 90mm PVC COUPLING | 52.5*38*37 | 48 | 348 | 1.07 |
| DN100 | 110mm PVC COUPLING | 60*56*27 | 38 | 560 | 1.84 |
| DN125 | 140mm PVC COUPLING | 52.5*38*37 | 12 | 1118 | 3.99 |
| DN150 | 160mm PVC COUPLING | 60*56*27 | 9 | 1687 | 5.75 |
| DN200 | 225mm PVC COUPLING | 52*52*26.5 | 4 | 3324 | 12.76 |
| DN250 | 280mm PVC COUPLING | 58.5*48*36.5 | 2 | 5030 | 45.32 |
| DN300 | 315mm PVC COUPLING | 81*41*35 | 2 | 8541 | 69.72 |
