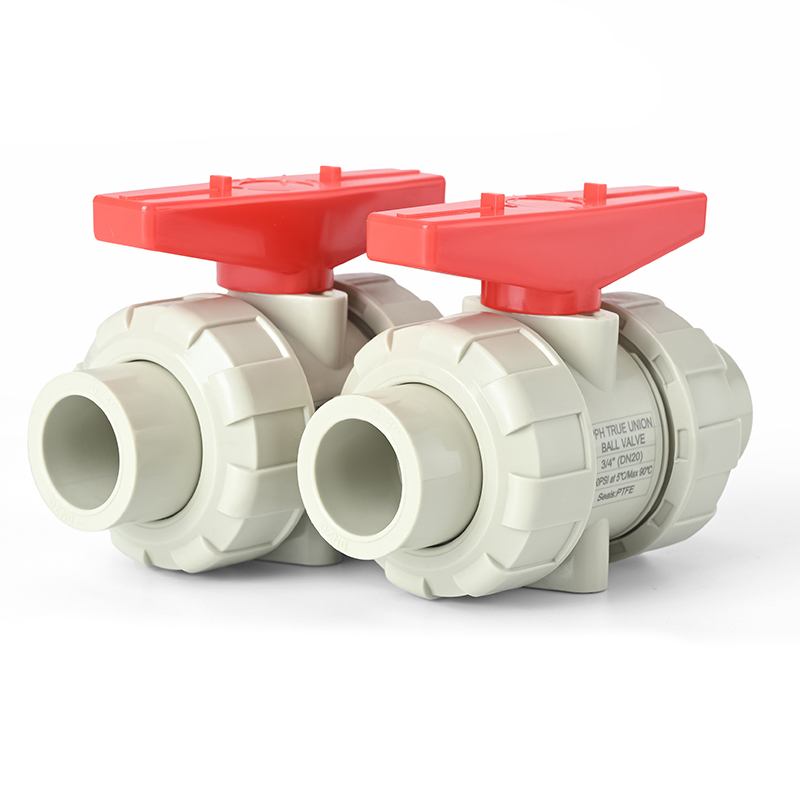

PPH heat fusion Double union ball valve

3 month ago

20 0

Jiaxing Huiya Pipeline Technology Co., Ltd

 5 month year

Product details

Our premium Union Ball Valve PP is a core offering in polypropylene valves, engineered for reliable industrial fluid control with high-grade polypropylene material. As a practical pp ball valve variant, it’s available in the versatile 3 4 pp ball valve size, featuring a union structure for hassle-free in-line maintenance without pipe disassembly, precision sealing for leak-proof operation and smooth actuation for stable flow regulation. Ideal for low-medium pressure industrial, chemical processing and general fluid handling systems.

HuiYa PVC fittings series
DIN	ANSI	JIS
PVC PN10	PVC SCH40
PVC PN16	PVC SCH80

Key Word:	Union Ball Valve PP Butt Welding
Connect Type:	Cement-Glue-Socket
Brand:	HUIYA or OEM
Material:	PPH
Specifications:	Size(dimensions):	DN15-20-25-32-40-50-65-80-100-125-150-200-250-300-350-400
		20-25-32-40-50-63-75-90-110-125-140-160-200-225-280-315-355-400mm

	Standard:	ISO , ISO4422, , DIN8063,GB/T 4219.2
	Working pressure:	PN16(1.6Mpa)
	Working temperature:	-15 to 85 Degree Celsius
	Production Process:	Mold Injected
	Packing:	Cartons
Advantage:	1.100% virgin PVC material
	2.Environmentally friendly material, 100% no lead, zinc and other metals, water quality unaffected,harmless to the body
	3.Strictly produced according to ISO standard
	4.Long lifetime
	5.The pressure resistance reaches 1.6 MPa, Good chemicals and drugs resistance
Application:	Connected with PVC-U pipes for portable water supply，also can be used for corrosive medium transportation in chemical industry and other fields
HS Code:	391740
Certificate:	SGS
Brief Introduction:	HuiYa Plastic Co., Ltd is a professional supplier of UPVC-CPVC-PE-PPR Pipes, pipe fittings, valves,Upvc Pipe Fittings And Valves,Pph Pipe Fittings And Valves. Plastic piping systems such as pipes, fittings and valves is widely used in water supply, chemical industry, water treatment, environmental protection, pharmaceutical area etc.
	We insist in the principal of Quality First, Clients First". Your satisfaction is our eternal pursuit. With high-class raw material, strict quality control in both the workshop and laboratory with various professional testing equipment, HuiYa Plastic ensures that every single product meets the corresponding inspection standard.

As a leading PPH Union Ball Valve Factory in China, we provide high-performance flow control components designed for the most demanding environments. Our PPH True Union Ball Valve series features a double-union design that allows for easy installation and rapid maintenance without piping disassembly.

True Union Ball Valve For Automation Dimensions Table (mm)
DN	d	d	P	L	L1	(Mpa)working pressure			I	J	M	N
	socket end	Thread end				FRPP/PPH	UPVC/CPVC	PVDF
	HG/DIN	HG/DIN				FRPP/PPH	UPVC/CPVC	PVDF
15	20	Rc1/2	18	108	62	1.0	1.6	1.6	36	50	11	14
20	25	Rc3/4	22	125	69	1.0	1.6	1.6	36	50	11	14
25	32	Rc1	27	138	76	1.0	1.6	1.6	36	50	11	14
32	40	Rc1-1/4	30	160	85	1.0	1.6	1.6	50	70	11/14*	14
40	50	Rc1-1/2	35	177	92	1.0	1.6	1.6	50	70	14	17
50	63	Rc2	40	206	113	1.0	1.6	1.6	50	70	14	17
65	75	Rc2-1/2	51	265	135	1.0	1.0	1.0	70	102	17	21
80	90	Rc3	52	295	154	1.0	1.0	1.0	70	102	17/22	21
100	110	Rc4	60	330	175	1.0	1.0	1.0	70	102	17/22	24

True Union Ball Valve For Automation Dimensions Table (mm)
DN	d	d	P	L	L1	(Mpa)working pressure			I	J	M	N
	socket end	Thread end				FRPP/PPH	UPVC/CPVC	PVDF
	JIS	JIS				FRPP/PPH	UPVC/CPVC	PVDF
15	22	PT1/2	18	108	62	1.0	1.6	1.6	36	50	11	14
20	26	PT3/4	22	125	69	1.0	1.6	1.6	36	50	11	14
25	32	PT1	27	138	76	1.0	1.6	1.6	36	50	11	14
32	38	PT1-1/4	30	160	85	1.0	1.6	1.6	50	70	11/14*	14
40	48	PT1-1/2	35	177	92	1.0	1.6	1.6	50	70	14	17
50	60	PT2	40	206	113	1.0	1.6	1.6	50	70	14	17
65	76	PT2-1/2	51	265	135	1.0	1.0	1.0	70	102	17	21
80	89	PT3	52	295	154	1.0	1.0	1.0	70	102	17/22	21
100	114	PT4	60	330	175	1.0	1.0	1.0	70	102	17/22	24

True Union Ball Valve For Automation Dimensions Table (mm)
DN	d	d	P	L	L1	(Mpa)working pressure			I	J	M	N
	socket end	Thread end				FRPP/PPH	UPVC/CPVC	PVDF
	ANSI	ANSI				FRPP/PPH	UPVC/CPVC	PVDF
15	21.3	NPT1/2	18	108	62	1.0	1.6	1.6	36	50	11	14
20	26.7	NPT3/4	22	125	69	1.0	1.6	1.6	36	50	11	14
25	33.4	NPT1	27	138	76	1.0	1.6	1.6	36	50	11	14
32	42.2	NPT1-1/4	30	160	85	1.0	1.6	1.6	50	70	11/14*	14
40	48.3	NPT1-1/2	35	177	92	1.0	1.6	1.6	50	70	14	17
50	60.3	NPT2	40	206	113	1.0	1.6	1.6	50	70	14	17
65	73	NPT2-1/2	51	265	135	1.0	1.0	1.0	70	102	17	21
80	88.9	NPT3	52	295	154	1.0	1.0	1.0	70	102	17/22	21
100	114.3	NPT4	60	330	175	1.0	1.0	1.0	70	102	17/22	24
