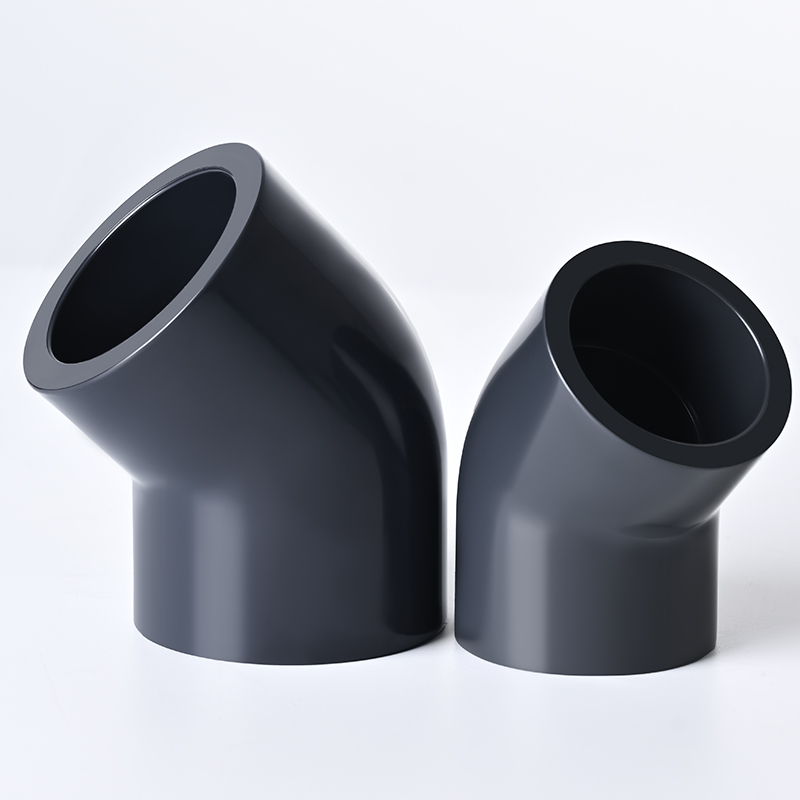

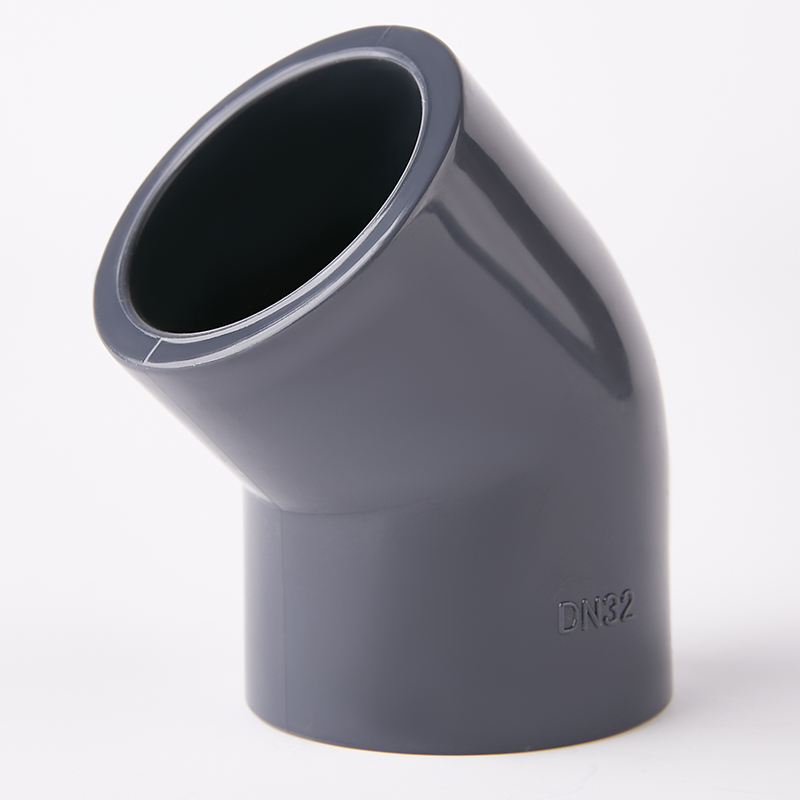

Engineered for smooth fluid redirection and minimal pressure drop, our large diameter UPVC 45 degree elbow PN16 guarantees a 100% leak-proof socket fusion joint. Manufactured directly by Huiya, these premium fittings are injection-molded exclusively from 100% virgin resin. By strictly eliminating recycled additives, we ensure absolute structural integrity, preventing stress-cracking under severe fluid dynamics.
As a highly reliable PVC-U engineering solution, this 45-degree elbow delivers outstanding acid & alkali resistant performance, safeguarding your pipelines from internal degradation when transporting corrosive chemicals. Unlike standard plumbing components, Huiya’s heavy-wall rigid PVC fittings are rigorously designed to safely withstand continuous industrial-grade PN16 high pressure (16 Bar) without deformation or bursting.

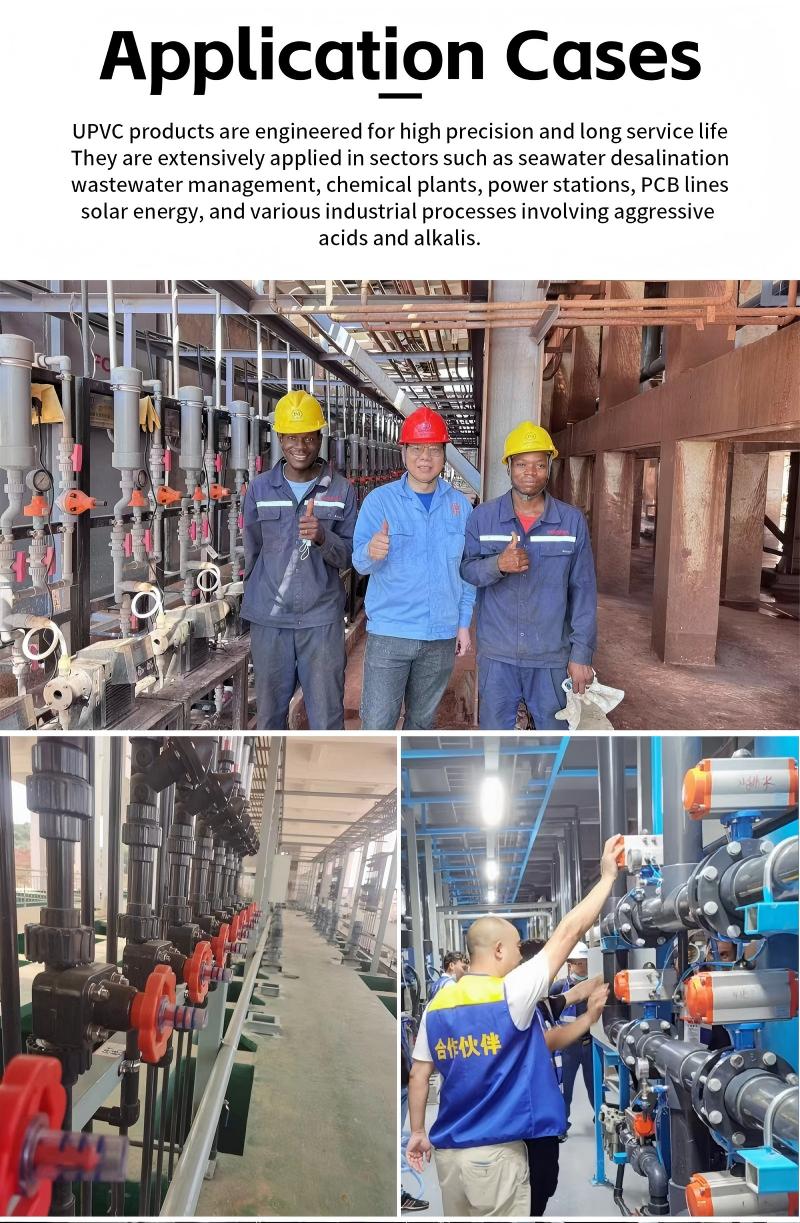

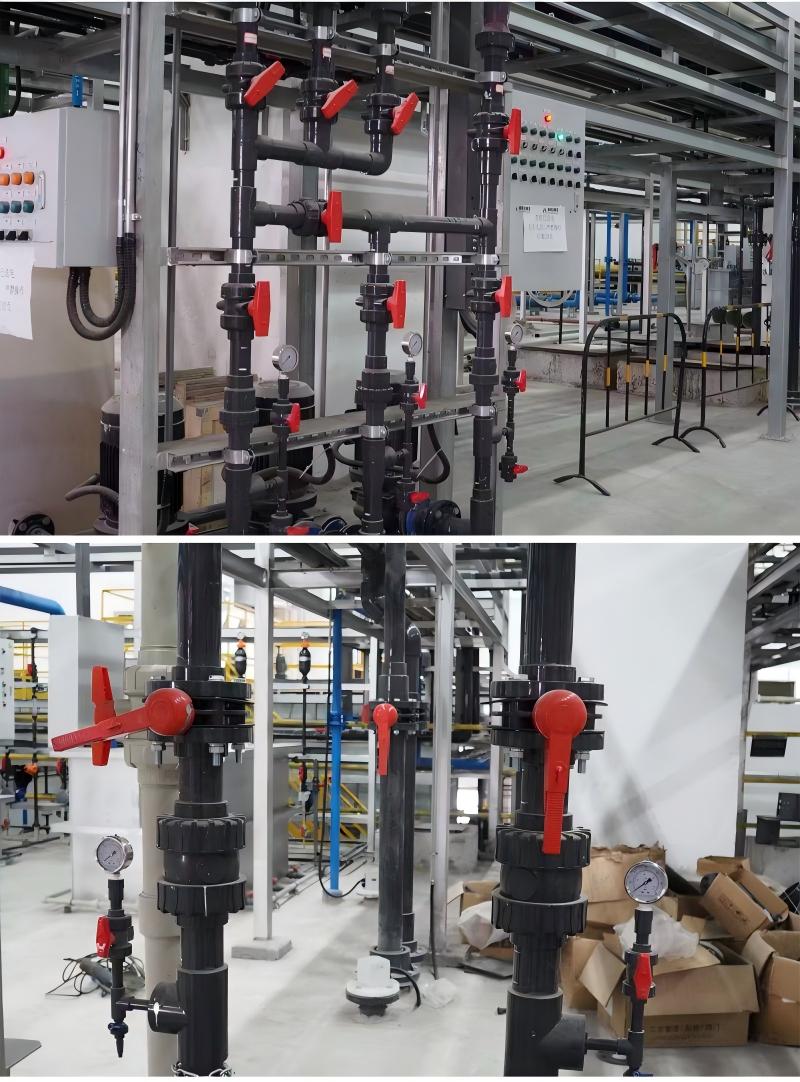

Available in extensive sizes up to DN400, it is the optimal low-resistance fitting for any demanding chemical processing plant and complex industrial water treatment facility. To build a completely integrated and secure fluid control network, explore our full catalog of [UPVC pipe fittings PN16].

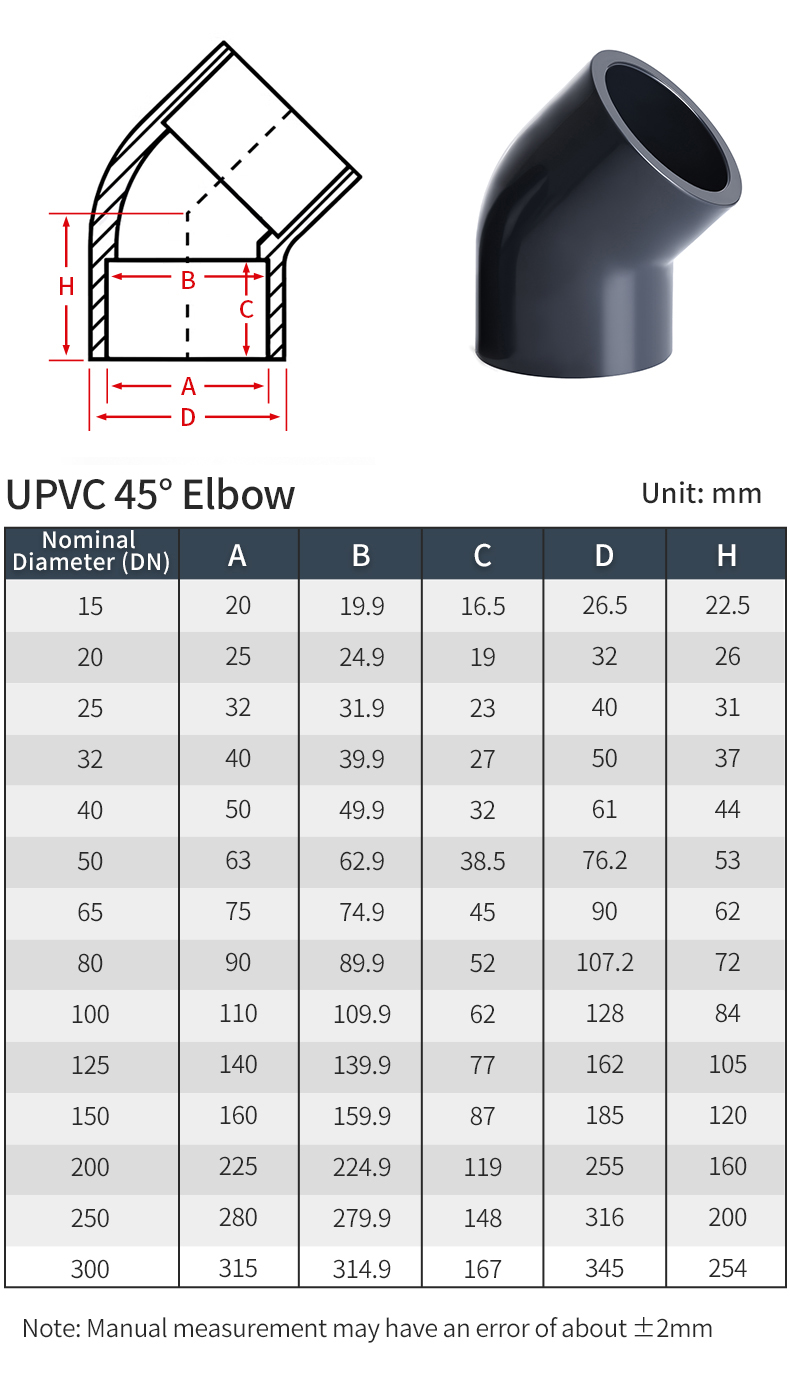

Technical Specifications: Industrial UPVC 45 Degree Elbow PN16
| DIN Standard PVC-U 45 elbow PN16 Carton Dimensions & Packing List | |||||
| Size | Carton Size (cm) | Qty/Ctn | Weight (g/pc) | Price/Piece ($) | |
| DN15 | mm PVC 45 elbow | 41*41*34 | 1200 | 15.5 | 0.07 |
| DN20 | mm PVC 46 elbow | 41*41*34 | 720 | 23.9 | 0.09 |
| DN25 | mm PVC 47 elbow | 41*41*34 | 360 | 42.5 | 0.18 |
| DN32 | mm PVC 48 elbow | 55*43*35 | 300 | 72.7 | 0.27 |
| DN40 | mm PVC 49 elbow | 52.5*38*37 | 128 | 109 | 0.45 |
| DN50 | mm PVC 50 elbow | 58.5*48*36.5 | 108 | 207 | 0.72 |
| DN65 | mm PVC 51 elbow | 53.5*47.5*37 | 67 | 311 | 1.16 |
| DN80 | mm PVC 52 elbow | 55*43*35 | 32 | 473 | 1.74 |
| DN100 | mm PVC 53 elbow | 53.5*47.5*37 | 22 | 769 | 2.89 |
| DN125 | mm PVC 54 elbow | 58.5*48*36.5 | 12 | 1568 | 6.36 |
| DN150 | mm PVC 55 elbow | 53.5*47.5*37 | 8 | 2314 | 9.2 |
| DN200 | mm PVC 56 elbow | 60*56*27 | 3 | 4683 | 23.46 |
