A 27A/1500V programmable DC power supply is a high-voltage electronic device that can supply a controllable and stable DC voltage output up to 1500V, with a maximum current output of 27A. This type of power supply is commonly used in many industrial fields, including manufacturing, research, and development.
The programmable feature of the DC power supply allows the user to set and control various parameters such as voltage, current, and power limits as well as overvoltage and overcurrent protection. This feature helps ensure the safety of equipment and personnel while being used in various applications.
APM technologies products of our company are: Programmable Power Supplies,DC Power Supplies,AC Power Supplies, DC Electronic load,Three Phase AC Source System,Lab Power Supply. If you are intrested, please contact us.
Full touch flip panel design, simple UI interaction interface, easier and faster operation.
Universal input voltage, single/three-phase input optional.
High power density structure design, 2U/10kW.
Adjustable voltage/current slew rate.
List/ Step mode programming.
Supports SCPI commands, provides web GUI function.
Wide range output design, full power provides a wider range of voltage and current combinations.
Optical fiber parallel communication, strong anti-interference, extremely fast transmission, unchanged performance(Optional).
DDS arbitrary function generator.*
Solar panel I-V curve simulation function*
Smart 3-stage charging algorithm simulation.*
Battery simulator function*
Built-in standard automotive power network voltage curves.*
TTL/Analog control and monitoring(Optional)
Full protection: OVP, OCP, OPP, OTP and SCP.
Standard USB communication interface, optional GPIB/LAN&RS232/RS485/CAN.
Constant voltage (CV), constant current (CC) and constant power (CP) operation mode, CC or CV working priority setting.

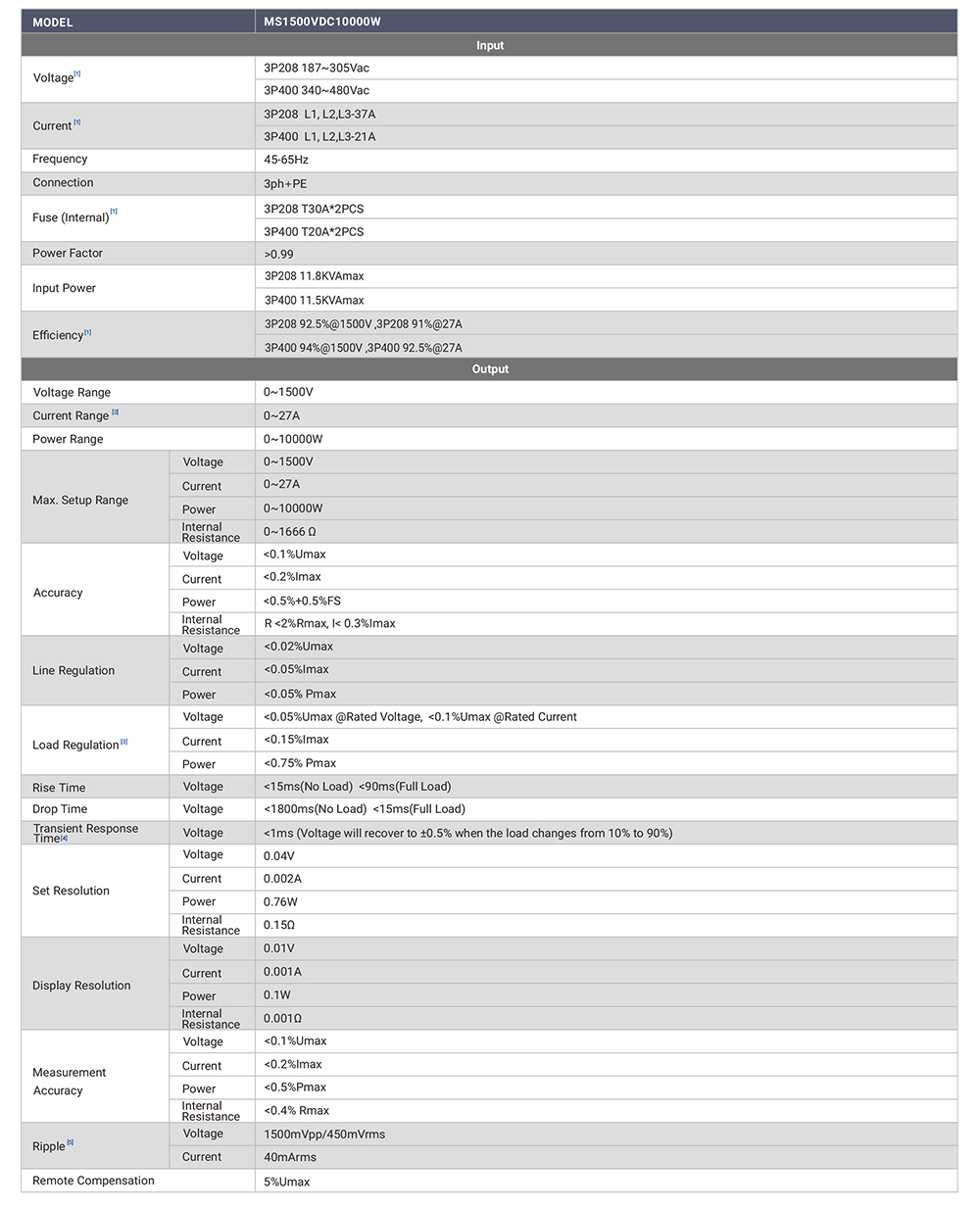

Detailed parameters
