Ⅰ. Definition and Essence of Clear ESD PVC Sheet
ESD is an abbreviation for Electrostatic Discharge. ESD PVC is a type of functionalized modified polyvinyl chloride (PVC) material—a composite material with PVC resin as the matrix, incorporating antistatic agents or undergoing special processing to control the surface resistivity within the antistatic range (10⁶~10⁹ Ω/sq), thereby inhibiting static electricity accumulation and discharge.
Essentially, it's a combination of "base resin + functional modification": PVC provides basic properties such as transparency and ease of processing, while antistatic components endow it with electrostatic protection capabilities, making it a "low-cost, high-performance" antistatic material category.
Transparent rigid PVC sheet is actually UPVC sheet (unplasticized PVC), not CPVC Sheet (Chlorinated PVC).
You might be wondering how to add anti-static properties while still maintaining transparency? Let's see how we can keep it transparent while also preventing static electricity.
Externally Coated Transparent Antistatic Coating
1. Principle: A transparent conductive material is coated onto the surface of a transparent UPVC board, directly forming an electrostatic conductive path. Common coating types:
Conductive polymers: such as polyaniline (PANI) and polythiophene (PTh), which are inherently transparent and conductive;
Nano oxide coatings: such as ITO (indium tin oxide) and AZO (aluminum-doped zinc oxide), where nanoparticles are dispersed in a solvent, forming a transparent conductive film after coating;
Ionic liquid coatings: such as 1-ethyl-3-methylimidazolium tetrafluoroborate, which conducts static electricity through ion migration.
2. Key to Maintaining Transparency
Coating thickness ≤ 1μm: Excessive thickness increases light absorption (e.g., ITO coating thickness > 1.5μm will yellow);
Select low refractive index materials: For example, the refractive index of ITO (≈1.9) is similar to that of PVC (≈1.54), resulting in weak light scattering.
3. Advantages
Repairable (recoated after wear); Resistivity can be adjusted as needed.
Ⅱ. Characteristics and Advantages of Antistatic Transparent PVC Sheets
(I) Core Characteristics

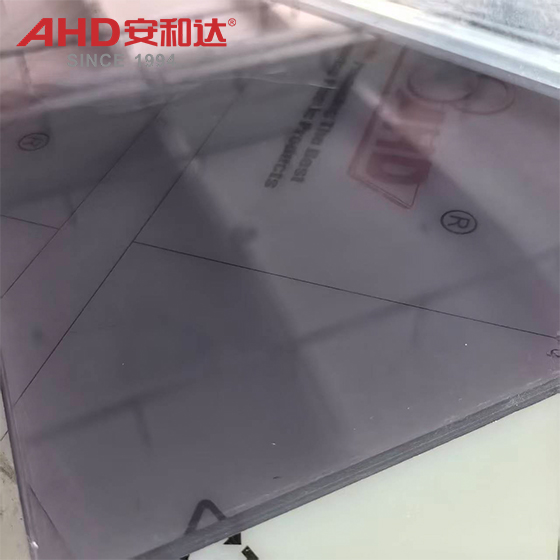

Transparency: Retains the natural high transparency of PVC, with a light transmittance typically >85%, achieving the dual requirements of "visualization + antistatic properties";

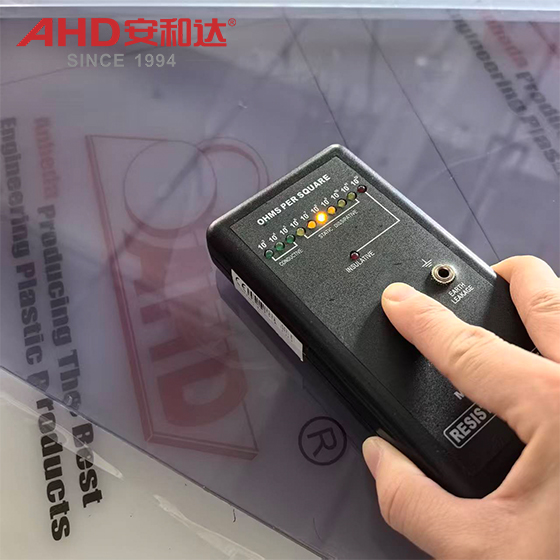

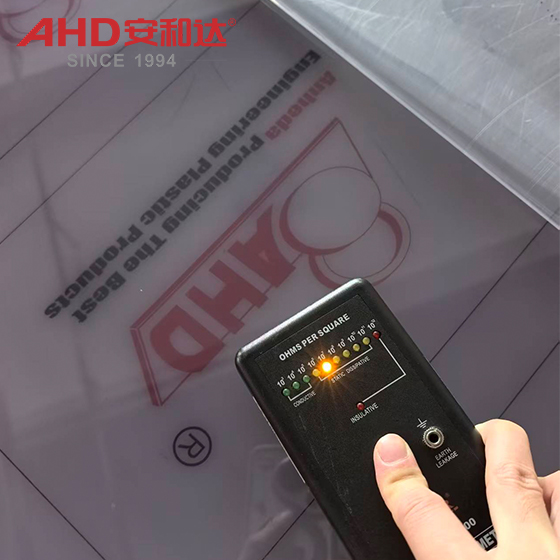

Antistatic Performance: Surface resistivity is stable at 10⁶~10¹¹ Ω/sq, effectively dissipating static electricity without the risk of electric shock due to excessive conductivity;
Physical and Mechanical Properties: Moderate hardness (Shore D 70~80), impact resistance (cantilever beam impact strength 8 kJ/m²), and chemical corrosion resistance (resistant to acids, alkalis, and greases);
Processing Ability: Easy to cut, drill, and hot-bend; weldable (PVC welding rods), suitable for customized needs in electronics factories, medical equipment, and other scenarios;
Environmental Adaptability: Good weather resistance (UV aging resistance), operating temperature range -10℃~60℃, meeting the needs of most indoor and outdoor scenarios.
| |
Antistatic transparent PVC |
Antistatic PMMA (acrylic) |
Antistatic PC (polycarbonate) |
| Cost |
Low (PVC raw materials are cheap, and processing is simple) |
High (PMMA raw materials are expensive and prone to cracking) |
Very high (PC raw materials + modification costs are high) |
| Transparency |
>85% |
>90% (more transparent but easily scratched) |
>88% (impact resistant but slightly yellowish) |
| Applicable Scenarios |
Visualized anti-static protection for electronics, medical, and industrial applications |
High-end optical displays (e.g., museum display cases) |
High-strength industrial protection (e.g., machine tool guards) |
Key highlights: It solves the contradiction between "anti-static" and "transparent observation" at the lowest cost, making it the first choice for scenarios such as electronics and medical care that require "visualization".
Ⅲ. Typical Application Scenarios (by Industry)
The value of anti-static transparent PVC sheets lies in "preventing static electricity where visibility is crucial." Typical applications include:
Electronics Manufacturing: SMT placement line workbenches, semiconductor chip transfer trays, IC/LED component packaging liners (preventing electrostatic discharge from damaging sensitive chips);
Medical Equipment: Operating room instrument trays, transparent packaging for syringes, observation windows for medical instruments (avoiding static electricity attracting dust or interfering with equipment);
Optics and Display: Camera lens protective covers, anti-static panels for LCD/OLED displays, internal partitions for optical instruments (maintaining transparency while preventing static electricity);
Industrial Control: PLC control cabinet observation windows, transparent baffles for anti-static water lines, instrument housings (facilitating internal status monitoring);
