Product details

Performance and characteristics

Our company has recently developed the large spindle plane CAM circular loom (SL-SYB series), it is mainly used to make various sizes of tube fabric with PP, PE and synthetic tape, it can be widely used to make jumbo bags, tarpaulins, geotextiles, etc.

Main performance:

1. With the new plane cam structure, the loom starts smoothly, operates reliably, efficiently, saves energy and consumes less.

2.Shuttle use trolley wheel form, without lubrication and reducing pollution

3. High-precision automatic control of warp yarns tension, it provides good conditions for high-quality fabric

4. PLC with human-machine interface operation, centralized control, and easy to operate.

5. The equipment structure is reasonable and simple, it can operate reliably with less quick-wear parts, the maintenance is convenient, and the maintenance cost is low

Technical Specifications

Type	Shuttle Quantity(PCS)	Prime Motor Rotational(R/min)	Weft Insertion Rate（Max)	Folded Width (56 Warps /min)	Max Warp Number (PCS)	Bobbin size (customized)	Main Motor Power (KW)	Installation Dimension (LWH/mm)	Weight (KG)
SL-SYB1350-65	6	60~90	540PPM	1000~1350	1536	38*230	4	1408031604150	3200
SL-SYB1500-85	8	50~80	640PPM	1100~1500	1920	38*230	5.5	1552033204150	4200
SL-SYB1700-65	6	60~90	540PPM	1300~1700	2112	38*230	5.5	1632034804150	5000
SL-SYB1900-85	8	45~70	560PPM	1500~1900	2592	38*230	5.5	1554035404960	5800
SL-SYB2000-85	8	45~65	520PPM	1600~2000	2880	38*230	5.5	1626036204960	6000
SL-SYB2200-85	8	45~65	520PPM	1750~2200	3168	38*230	5.5	1698037004960	6200
SL-SYB2300-85	8	40~65	520PPM	1850~2300	3168	38*230	5.5	1698037404960	6800
SL-SYB2500-105	10	30~50	500PPM	2000~2500	3456	38*230	7.5	1600040004960	7000

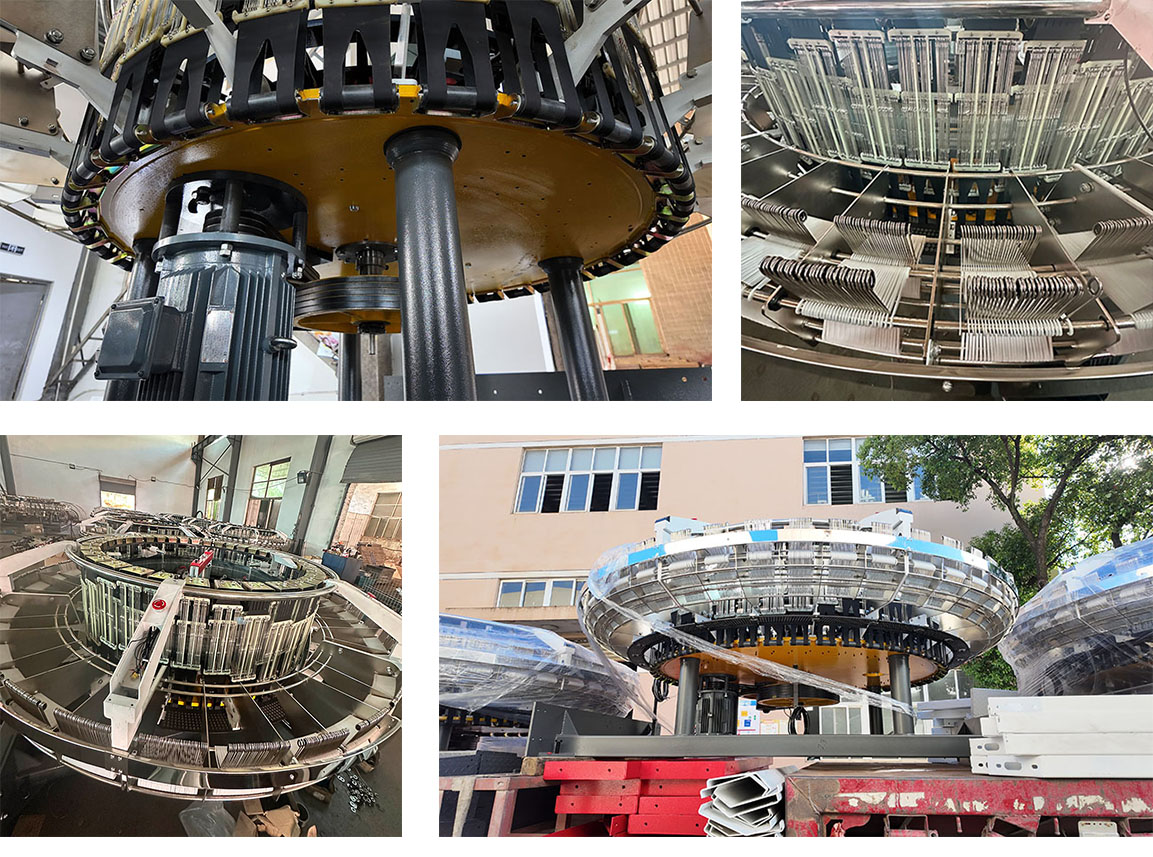

Product Images
