Wipu 6 hole ST1210P6 OBD male connector

8 month ago

53 0

Shenzhen Fubang Wire harness Co.,Ltd

 2 year year

Product details

The Compressor Low-Pressure Control Line, equipped with the Wipu 6-hole ST1210P6-OBD male connector (16P configuration, 1000mm length), is a high-precision automotive component engineered to ensure reliable pressure monitoring and control in vehicle air conditioning (AC) compressor systems. As a critical link between the compressor’s low-pressure sensor and the vehicle’s electronic control unit (ECU), this control line plays a pivotal role in maintaining optimal AC system performance, preventing compressor damage, and enhancing overall energy efficiency. Its tailored design and premium components make it a preferred choice for automotive maintenance and aftermarket upgrades.

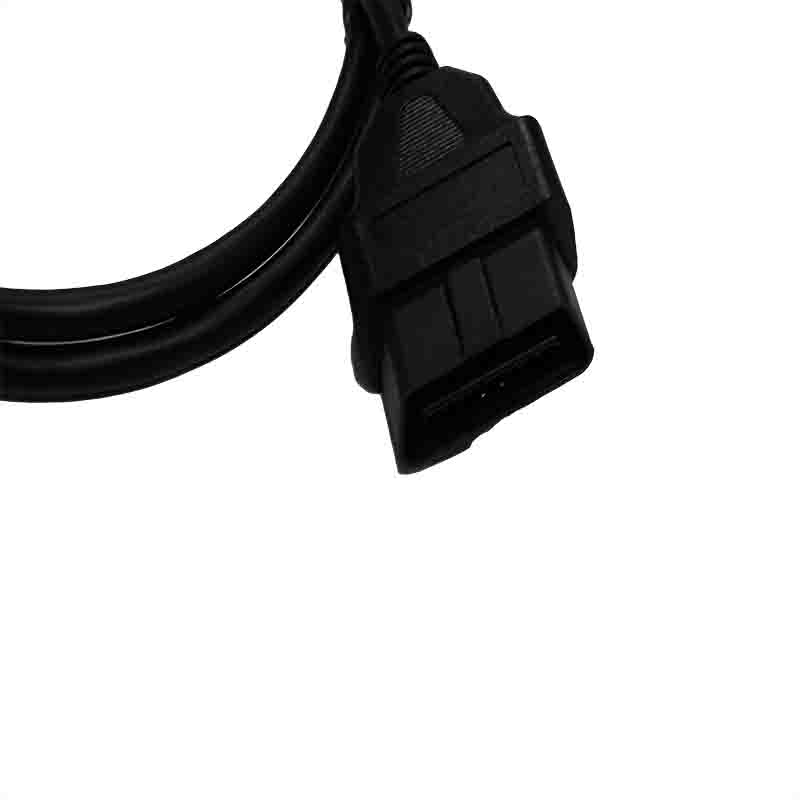

At the core of this product’s reliability is the integrated Wipu 6-hole ST1210P6-OBD male connector, a renowned component in automotive connectivity. Wipu’s ST1210P6-OBD series is celebrated for its robust construction and precise pin alignment, ensuring secure and stable electrical contact even in harsh automotive environments. The 6-hole design, paired with a 16P configuration, enables seamless compatibility with a wide range of vehicle makes and models that adopt OBD (On-Board Diagnostics) standard interfaces, facilitating direct plug-and-play integration without the need for custom adapter modifications. This compatibility not only simplifies installation but also guarantees consistent signal transmission between the low-pressure sensor and the ECU.

Item	Details
Product Name	Wipu 6 hole ST1210P6 OBD male connector
Type	Automotive OBDII Diagnostic & Power Transmission Connector Wiring Harness
Voltage	12V / 24V Automotive System, Customized Available
Length	Customized Length Available
Pins Material	Nickel-Plated Brass Terminals, Gold-Plating Optional
Plug Material	PA66+GF Automotive Grade Wipu ST1210P6 Connector Housing
Minimum Insulation Resistance	≥10MΩ
Maximum Conduction Resistance	≤2Ω
Application Fields	Automotive ECU programming and flashing, vehicle fault code reading and clearing, OBD diagnostic tool interface connection, custom automotive interior modification wiring, vehicle on-board electronic device power supply, automotive repair and maintenance wiring, passenger car & commercial vehicle custom wiring harness, DIY automotive electronic projects, Wipu ST1210P6 connector matching wiring for automotive diagnostic equipment
Working Temperature	-40℃~+105℃ Or Customized
Specific Shipping Cost	Please Contact Us

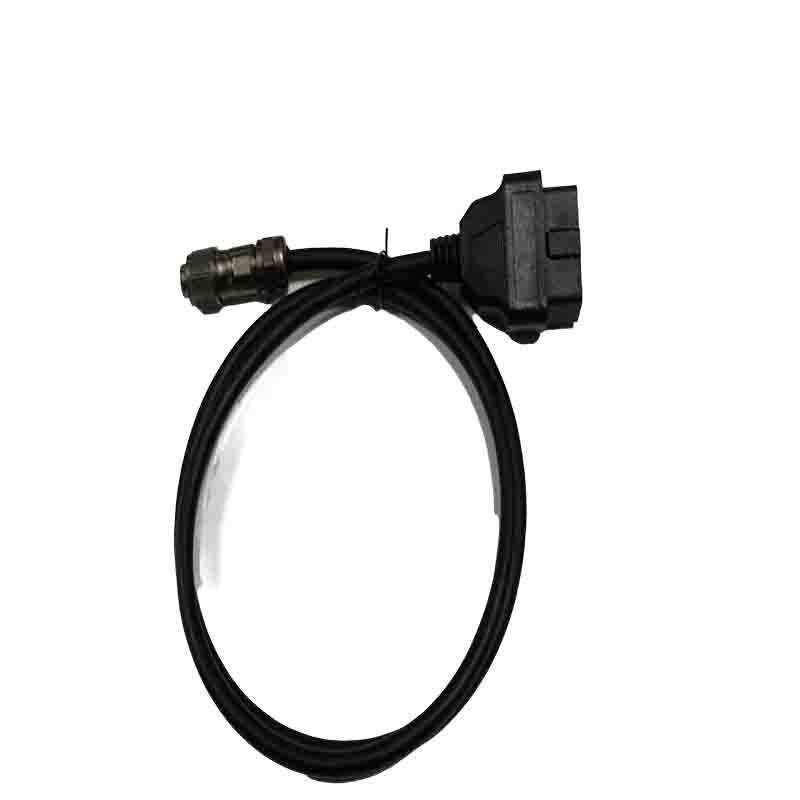

The 1000mm (L1000mm) length of the control line is thoughtfully designed to accommodate the spatial layout of most vehicle AC systems, providing sufficient flexibility for routing without excessive tension or slack. The line itself is constructed with high-quality copper conductors, which offer excellent electrical conductivity to ensure accurate transmission of pressure signals. The conductors are insulated with a wear-resistant, heat-resistant, and moisture-proof sheath, capable of withstanding extreme temperatures (ranging from -40°C to 125°C), vibration, and chemical exposure commonly encountered in automotive engine bays. This robust insulation effectively extends the service life of the control line and prevents signal interference or short circuits.

Installation of the Compressor Low-Pressure Control Line is streamlined by its plug-and-play design. Users simply need to disconnect the old control line (if replacing) and connect the Wipu ST1210P6-OBD male connector to the corresponding OBD interface on the vehicle, then attach the other end to the compressor’s low-pressure sensor. No specialized tools or wiring modifications are required, making it accessible to both professional technicians and skilled DIY users. Importantly, proper installation ensures that the ECU can accurately monitor the compressor’s low-pressure levels, triggering protective measures (such as shutting down the compressor) when pressure is too low, thereby preventing damage to the compressor and other AC system components.

In summary, this Compressor Low-Pressure Control Line, featuring the Wipu 6-hole ST1210P6-OBD male connector (16P, L1000mm), combines reliability, compatibility, and ease of installation. It is an essential component for maintaining the performance and longevity of vehicle AC compressor systems, ensuring safe and efficient operation. Whether for routine maintenance, replacement of a faulty line, or aftermarket upgrades, this product delivers consistent performance and peace of mind for automotive users.
