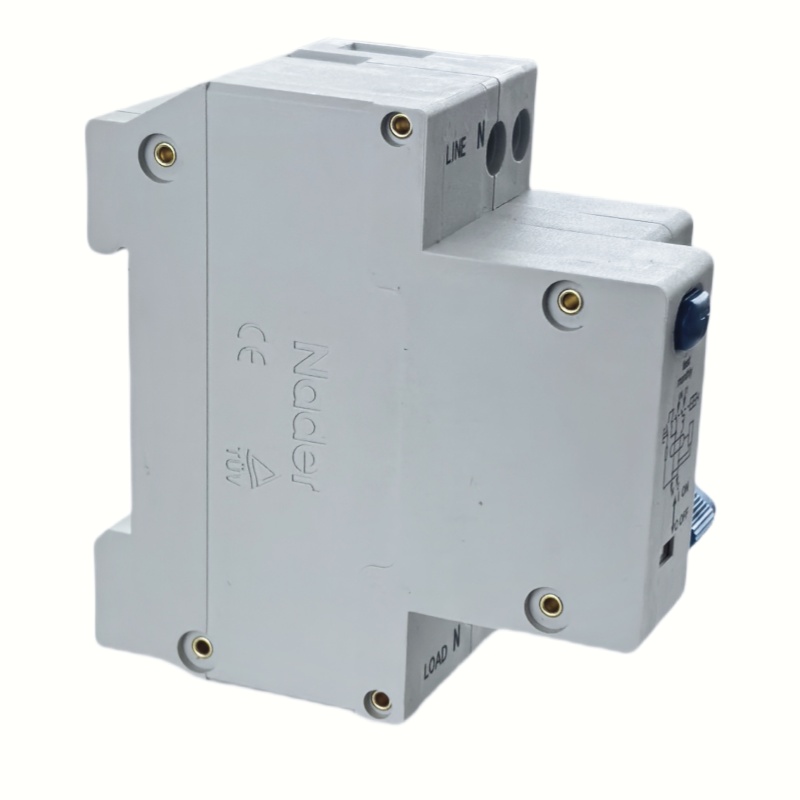

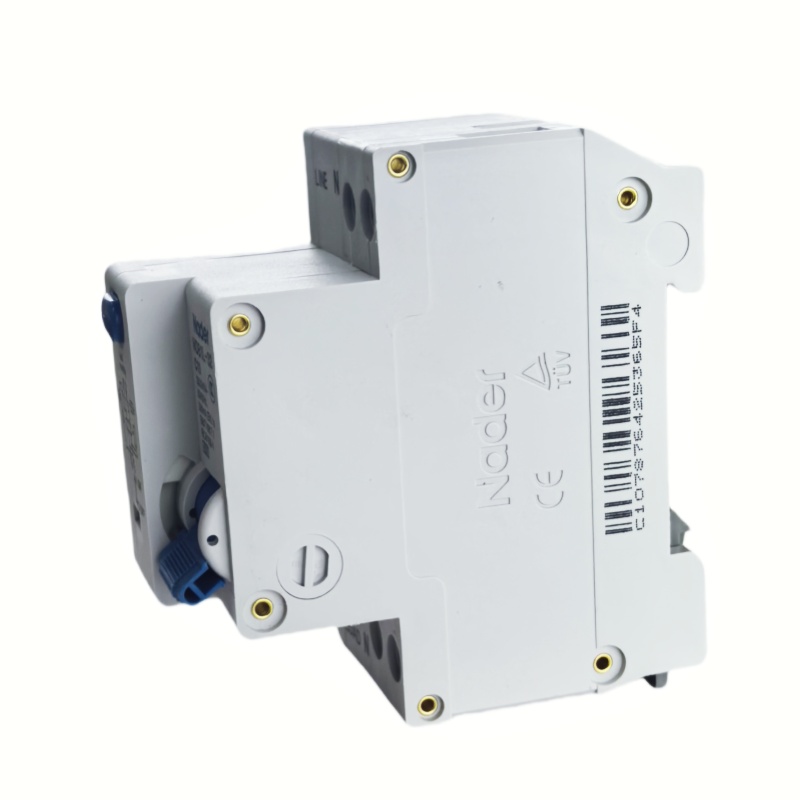

NADER LAZZEN NDB1-125 C32 Miniature Circuit Breaker MCB AC230V 50A 63A 80A for Solar Industrial Commercial Use1

3 week ago

2 0

Beian New Energy Co., Ltd.

 4 year year

Product details

Specification

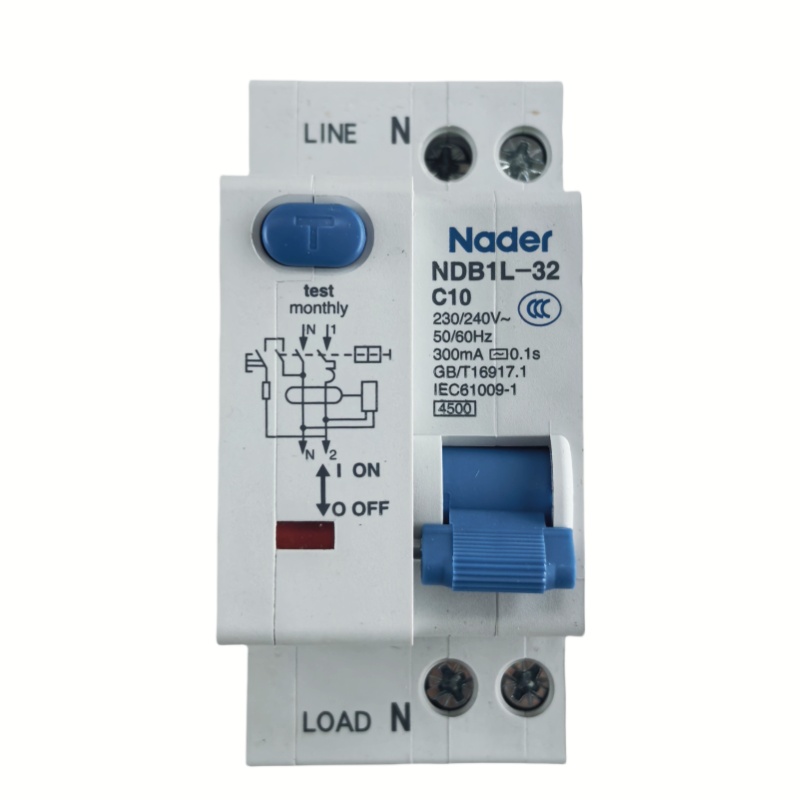

Model	NDB1L-32
Rated voltage (V)	AC230/240V
Rated current (A)	6,10,16,20,25,32
Type of residual current release	AC type, electronic type
Rated residual operating current Ain (mA)	1P 2P 3P 4P
Rated insulation voltage Ui (V)	AC440
Rated impulse withstand voltage Uimp (kV)	4
Rated short - circuit breaking capacity (GB/T16917.1) lcn (kA)	4.5/6
Rated ultimate short -circuit breaking capacity (GB/T14048.2) lcu (kA)	4.5/6
Rated residual making and breaking capacity Δlm (A)	500
Rated operating frequency (Hz)	50/60
Mechanical and electrical life (times)	Mechanical life 10000times/ Electrical life6000times
Wiring method	Tunnel - type
Wiring capacity (mm)	1-10
Terminal screw / torque N·m	1.2

Product Features

Scope of Application and Purpose

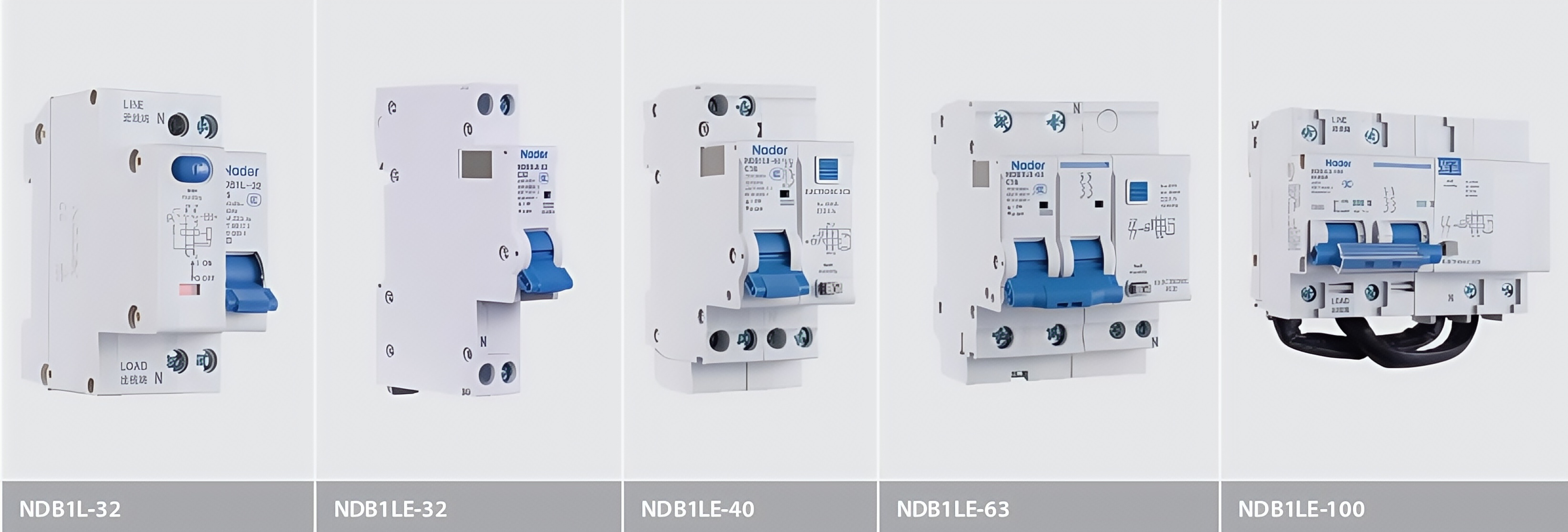

The NDB1L(E) series residual current operated circuit breakers are applicable to low - voltage terminal power distribution systems
in industries, civil buildings, energy, telecommunications, and infrastructure construction. They feature short - circuit,
overload, leakage protection, and isolation functions. They provide personal protection against indirect contact, supplementary
personal protection against direct contact, and protection against insulation faults of electrical equipment.

Design Features
* Visible Window Design: Makes the open - close status of the product clearly visible.

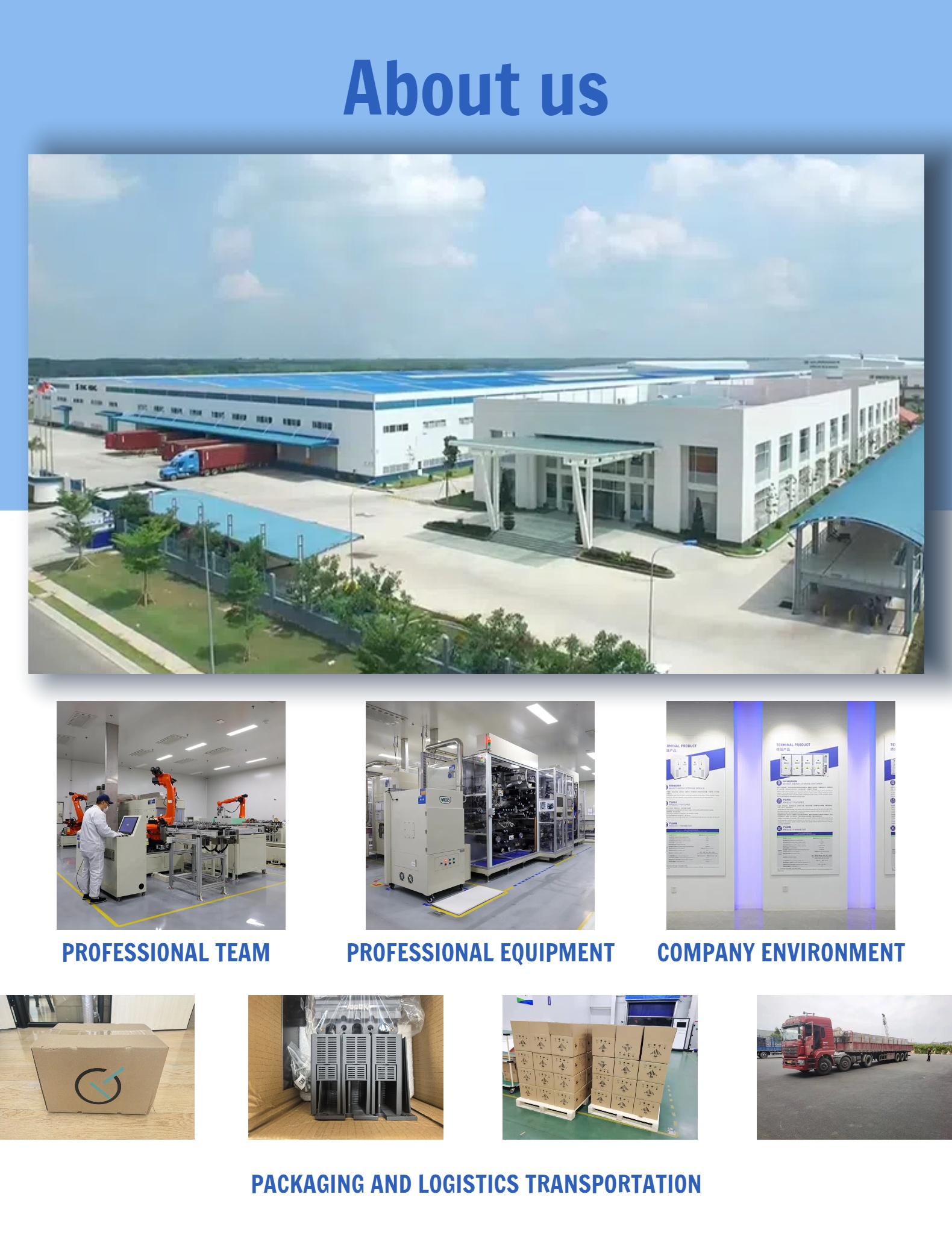

About Us

Q1. Can we put di fferent lithium battery pack in parallel or series by ourselves?
> Yes. The battery can be put in parallel or series by customers. But there are few tips we need to pay attention:
1> Make sure the voltage of each battery are same before put in parallel. If they are not same, charge them to the same rate.
2> Don't not put discharged battery and undischarged battery in parallel. This may reduce the capacity of the whole battery pack.
3> Advise us the target capacity of the whole pack if you would like to put them in series. We will choose the suitable BMS for each battery.
4> If you are not professional in parallel and series batteries, please don't handle the battery by yourself, It may damage the battery or reduce the cycle life of battery.

Q2. Can we put different LiFePO4 battery pack in series by ourselves?
> You can buy big voltage packs directly from us.We don’t suggest to connect them in series by yourself, this may damage the battery or reduce the cycle life of the pack.

Q3. Is BMS included in the battery pack?
> Yes, our battery pack includes BMS.

Q4. What is your warranty?
> We offer 1~5 years warranty depend on different products.

Q5:What is your terms of payment?
> T/T recommended, Paypal and Western Union acceptable.
1> Sample order: Full payment made when PI received.
2> Mass production order:30% down payment when PI received, 70% before shipment.

Q6. How do you ship the lithium battery packs?
> For sample order or small battery packs, we can ship by express through Fedex, UPS, TNT etc. If whole parcel over 100KG, can be shipped by air or by sea, by sea is cheaper.
