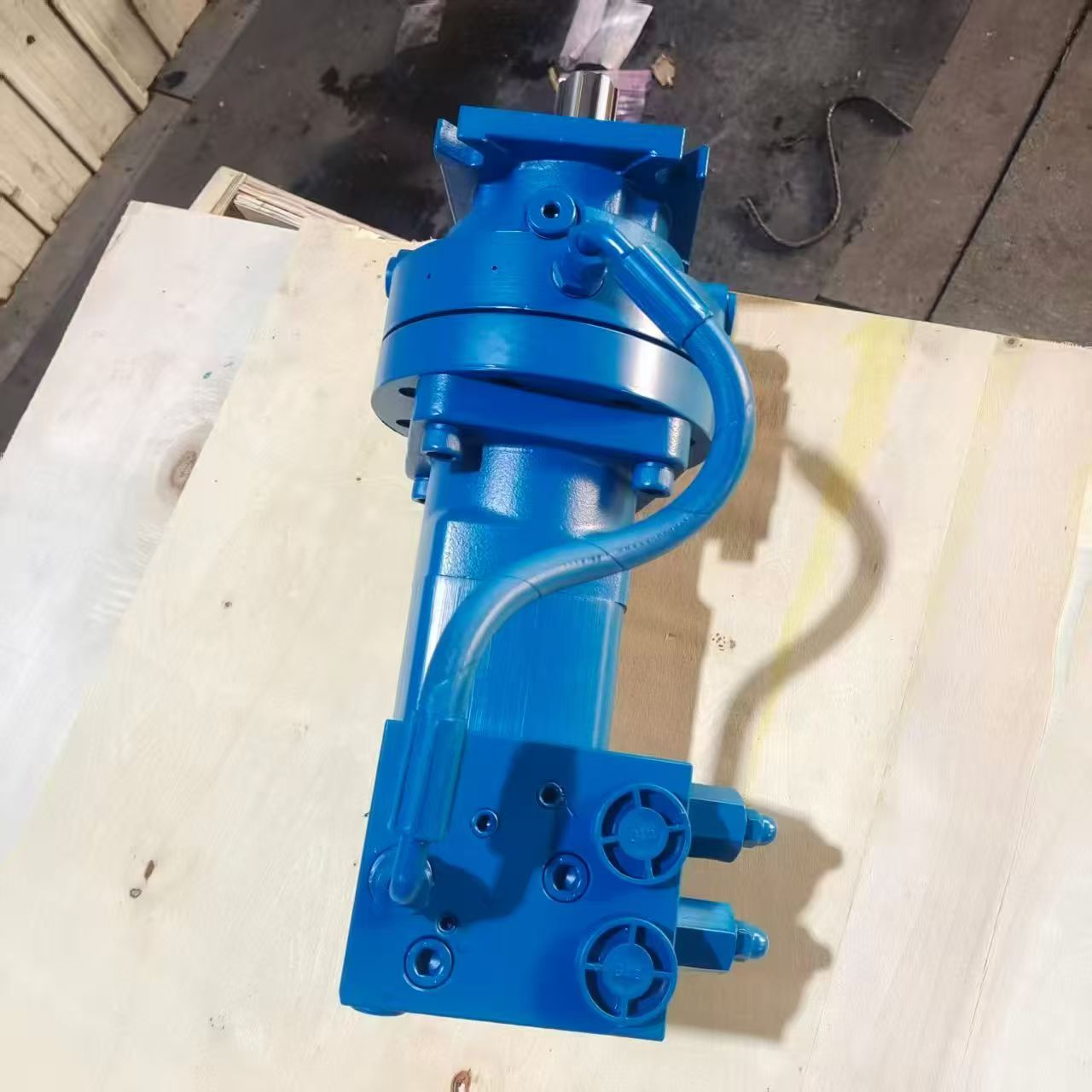

M5 hydraulic oribit motor with brakes

M5 hydraulic oribit motor with brakes

2 month ago

0 0

Ningbo Hengnuo Hydraulic Drive Co.,Ltd

 4 year year

Product details

I. Product Features

1. Efficient Orbit Motor Design

• Utilizes an orbital hydraulic motor structure withhigh torque and low-speedcharacteristics, suitable for applications requiring stable power output.

• Smooth gear meshing ensures low noise and vibration, extending equipment service life.

2. Integrated Brake Function

• Equipped with a built-in mechanical or hydraulic brake system that automatically locks when the motor stops, preventing load slippage and enhancing safety.

• Fast brake response and high braking torque, ideal for precise positioning or emergency stops.

3. Compact Structure with High Power Density

• Small size and lightweight yet delivers high power output, saving installation space and facilitating integration into compact equipment.

• Supports multiple mounting options (e.g., flange-mounted, shaft-mounted) to accommodate different mechanical structures.

4. Durability and Reliability

• Key components (e.g., bearings, seals) are made of high-wear-resistant materials, suitable for high-load, high-frequency operations.

• Sealed design prevents hydraulic fluid leakage and protects internal components from contamination.

5. Compatibility

• Compatible with various hydraulic fluids, including mineral oils and synthetic oils, for diverse working environments.

• Works seamlessly with proportional valves, servo valves, and other control elements for precise speed and torque adjustment.

------

II. Application Scenarios

1. Construction Machinery

• Used in slewing mechanisms or travel drives of excavators, cranes, and concrete pump trucks, where braking ensures operational safety.

• Powers drill heads or pile drivers, leveraging high torque for improved efficiency.

2. Industrial Automation

• Drives conveyor belts, rotary tables, and lifting platforms in automated production lines, requiring precise braking and positioning.

• Actuates robot joints, providing stable power and emergency stop functionality.

3. Agricultural Machinery

• Powers walking or working components of combine harvesters and seeders, adapting to harsh field conditions.

4. Marine and Offshore Engineering

• Used in ship steering gears, anchor winches, and capstans, requiring corrosion resistance and high reliability.

5. Special Vehicles

• Supports support or slewing mechanisms in fire trucks and aerial work platforms, ensuring operational stability.

------

III. Technical Specifications (Example)

Below are typical parameters for anM5 hydraulic orbit motor, which may vary by manufacturer:

【表格】

Parameter Value

Displacement 5 cm³/rev (customizable)

Rated Pressure 210 bar (max. 250 bar)

Peak Torque 120 N·m (adjustable based on displacement and pressure)

Speed Range 0–500 rpm (adjustable based on displacement and flow rate)

Brake Type Mechanical spring brake / Hydraulic release

Braking Torque ≥150% of rated torque

Weight Approx. 8–12 kg (model-dependent)

Mounting Style Flange-mounted / Shaft-mounted

Applicable Fluid Mineral oils, synthetic oils (viscosity range: 10–400 cSt)

------

IV. Selection Guidelines

1. Load Matching

• Choose motor displacement based on required torque and speed to ensure sufficient power output.

• Verify that braking torque exceeds inertial torque of the load to prevent brake failure.

2. Environmental Adaptability

• For high-temperature, humid, or corrosive environments, select models with superior sealing and corrosion-resistant materials.

3. Control Method

• For precise speed or position control, pair with proportional valves or servo systems and opt for motors supporting closed-loop control.

4. Maintenance and Cost

• Prioritize modular designs for easy disassembly and reduced maintenance costs.
