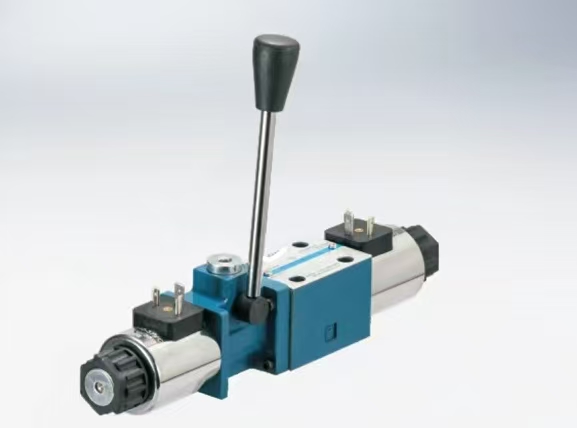

FWS-Type Solenoid-Operated Manual Directional Control Valve
A composite directional control valve integrating electromagnetic and manual operation modes, designed to enhance flexibility and reliability in hydraulic systems through dual control functionality. Below is an analysis of its technical features, applications, and selection guidelines:
------
I. Technical Features
1. Dual Control Modes
• Electromagnetic Actuation: Enables automatic valve core switching via solenoid energization/de-energization, suitable for highly automated systems (e.g., CNC machines, automated production lines).
• Manual Operation: Equipped with a mechanical lever or handle for direct valve core switching during power failures or emergencies, ensuring system safety and controllability.
• Composite Functionality: Some models support interlocking or coordinated operation between electromagnetic and manual modes (e.g., manual override priority to prevent malfunctions due to electromagnetic interference).
2. Structural Optimization
• Modular Design: Stackable structure integrates the valve body, solenoid, and manual mechanism, reducing installation space and facilitating system integration.
• High Sealing Performance: Hard or soft sealing (e.g., rubber O-rings) between the valve core and body minimizes leakage, suitable for high-pressure applications (e.g., up to 31.5 MPa in hydraulic systems).
• Wear-Resistant Materials: Key components (e.g., valve core, sleeve) use high-strength alloy steel or surface hardening treatments to extend service life.
3. Performance Parameters
• Flow Range: Supports flow rates from a few L/min to hundreds of L/min, accommodating hydraulic systems of varying scales.
• Response Time: Solenoid-driven valve core switching typically takes <100 ms, meeting high-speed dynamic response requirements.
• Protection Rating: Solenoid components achieve IP65 or higher for dust and water resistance, adapting to harsh industrial environments.
------
II. Applications
1. Industrial Automation Equipment
• In CNC machines, controls spindle start/stop, direction reversal, and coolant flow. Manual mode simplifies equipment debugging and maintenance.
• In automated assembly lines, enables rapid workpiece positioning via electromagnetic actuation and emergency stops via manual operation.
2. Construction Machinery and Vehicles
• In excavators and cranes, regulates hydraulic motor rotation direction. Manual mode provides emergency operation during power loss or solenoid failure.
• In railway maintenance vehicles, stackable design saves space while supporting multi-functional demands (e.g., track inspection, platform lifting).
3. Energy and Environmental Protection
• In wind turbine hydraulic systems, controls pitch mechanism adjustments. Manual mode facilitates offline maintenance.
• In wastewater treatment equipment, regulates sludge pump flow via electromagnetic actuation and enables cleaning/inspection via manual mode.
------
III. Selection Guidelines
1. Control Mode Selection
• For systems requiring high-frequency automatic switching (e.g., dozens of cycles per minute), prioritize solenoid-dominated models for speed and durability.
• For equipment needing frequent manual intervention (e.g., debugging, maintenance), select models with optimized manual mechanisms (e.g., locking handles).
2. Parameter Matching
• Pressure and Flow: Choose valve port sizes (e.g., NG16, NG25) based on system maximum pressure (e.g., 31.5 MPa) and flow rate (e.g., 100 L/min).
• Mounting Style: Stackable designs suit space-constrained applications; plate-mounted types offer easier maintenance.
• Electrical Interface: Verify solenoid voltage (e.g., AC110V, DC24V) compatibility with control systems and select protection ratings (e.g., IP67) matching environmental conditions.
