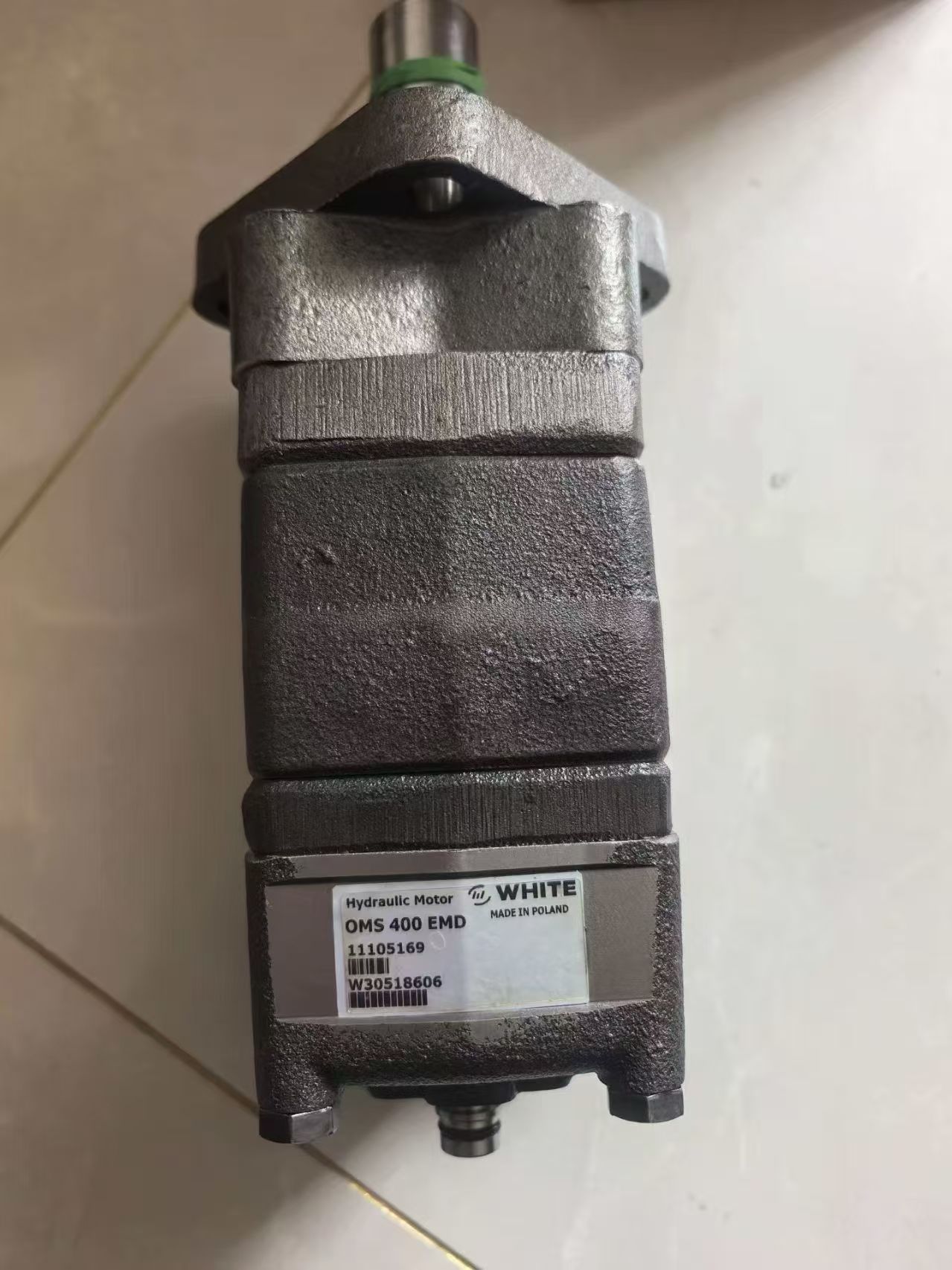

WHITE Hydraulic Motor OMS 400 EMD

TheWHITE Hydraulic Motor OMS 400 EMDis a gerotor (orbital) hydraulic motor manufactured byWHITE Hydraulics, featuring high torque output, high-pressure capability, and a compact design. It is widely used in construction machinery, agricultural equipment, and industrial applications.

------

Key Features

1. High Torque Output

• Delivers stable high torque under rated pressure, suitable for heavy-duty applications.

• Gerotor gear design ensures low starting pressure and smooth operation at low speeds with high torque.

2. High-Pressure Capability

• Rated pressure:21 MPa (3,045 PSI); peak pressure: even higher, compatible with high-pressure hydraulic systems.

• Standard high-pressure shaft seals prevent leaks and extend service life.

3. Compact Design

• Small size and lightweight for easy integration in space-constrained systems.

• Multiple mounting options (e.g., flange mount, shaft mount) available for different equipment requirements.

4. Durability & Reliability

• Advanced design and manufacturing ensure long-term stable operation with minimal maintenance.

• Strong axial and radial load-bearing capacity for high side-load applications.

5. Optional Speed Sensor (EMD)

• TheEMD speed sensorprovides real-time monitoring of motor speed and direction, with pulse, quadrature, or CAN bus signal output.

• Facilitates system integration and fault diagnosis, enhancing automation.

------

Technical Specifications

【表格】

Parameter Value

Model OMS 400 EMD

Displacement 410.9 cm³/rev (~25.07 in³/rev)

Rated Pressure 21 MPa (3,045 PSI)

Peak Pressure 25 MPa (3,625 PSI)

Rated Torque 1,080 N·m (796.6 lb·ft)

Peak Torque 1,450.3 N·m (1,069.8 lb·ft)

Max Speed Continuous: 305 rpm; Intermittent: 365 rpm; Peak: 420 rpm

Max Flow Rate 125 L/min (33.0 gal/min)

Weight ~22 kg (48.5 lb)

Mounting Flange mount (4-φ14 holes, φ160 outer diameter)

Output Shaft Short shaft (16-dp12/24)

Ports G3/4, G1/4

------

Applications

1. Construction Machinery

• Drive systems for excavators, loaders, cranes (travel or slewing).

2. Agricultural Equipment

• Hydraulic transmissions in combine harvesters, seeders, etc.

3. Industrial Machinery

• Low-speed, high-torque applications in injection molding machines, die-casting machines, and machine tools.

4. Harsh Environments

• Mining, metallurgy, marine, and other demanding fields requiring robust performance.
