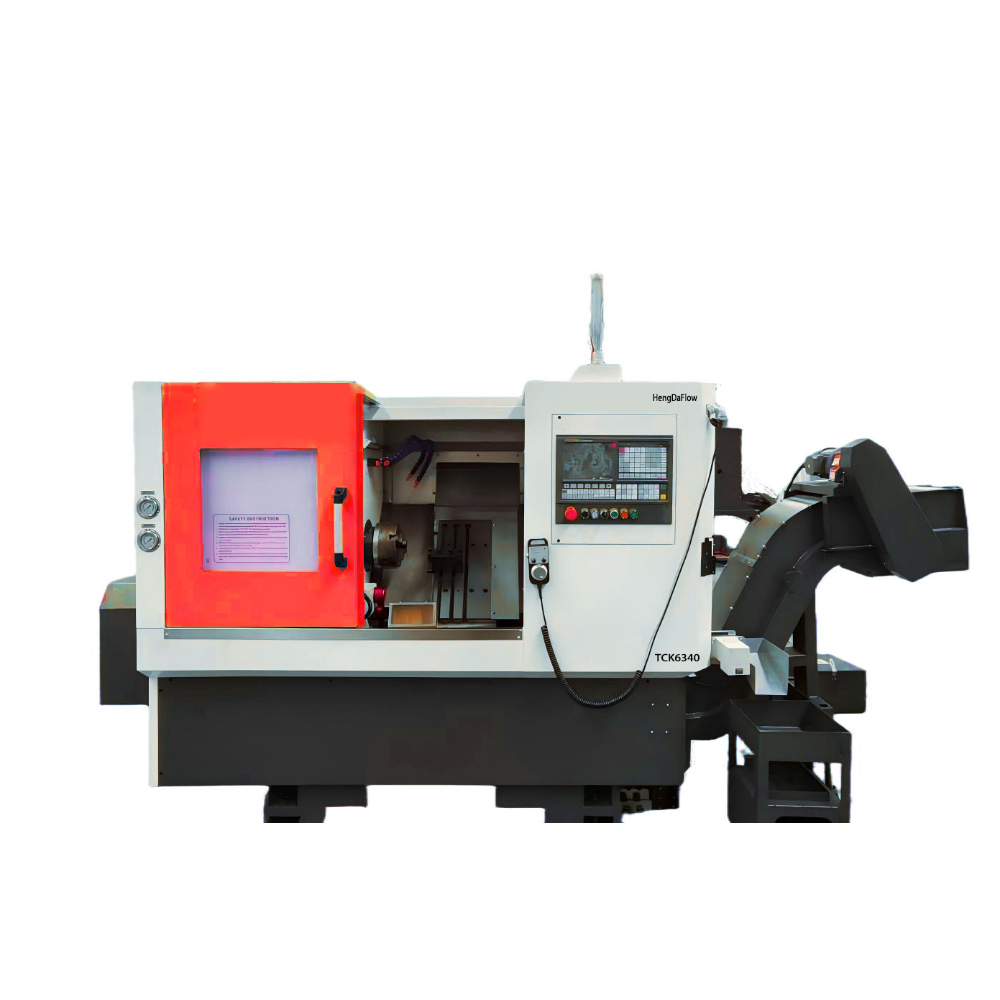

TCK6340 High - Speed CNC Slant - bed Lathe

2 month ago

1 0

HengDaFlow Industrial Machinery (Jiangsu) Co., Ltd.

 2 year year

Product details

Precision Manufacturing: Efficiency Transformation - CNC Inclined Bed Lathe Redefines Processing Paradigm

When the processing of precision parts encounters limitations from traditional techniques, the cumbersome process of multi-device collaboration often leaves enterprises in a predicament - they need to rely on radial drilling machines for multi-directional drilling, tap machines for thread processing, and even call upon saw machines to handle special cuts. The redundancy of equipment makes it difficult to balance efficiency and cost. The CNC inclined bed lathe with an integrated solution has ended the scattered processing mode, enabling complex workpiece processing to move towards efficient and intensive methods.

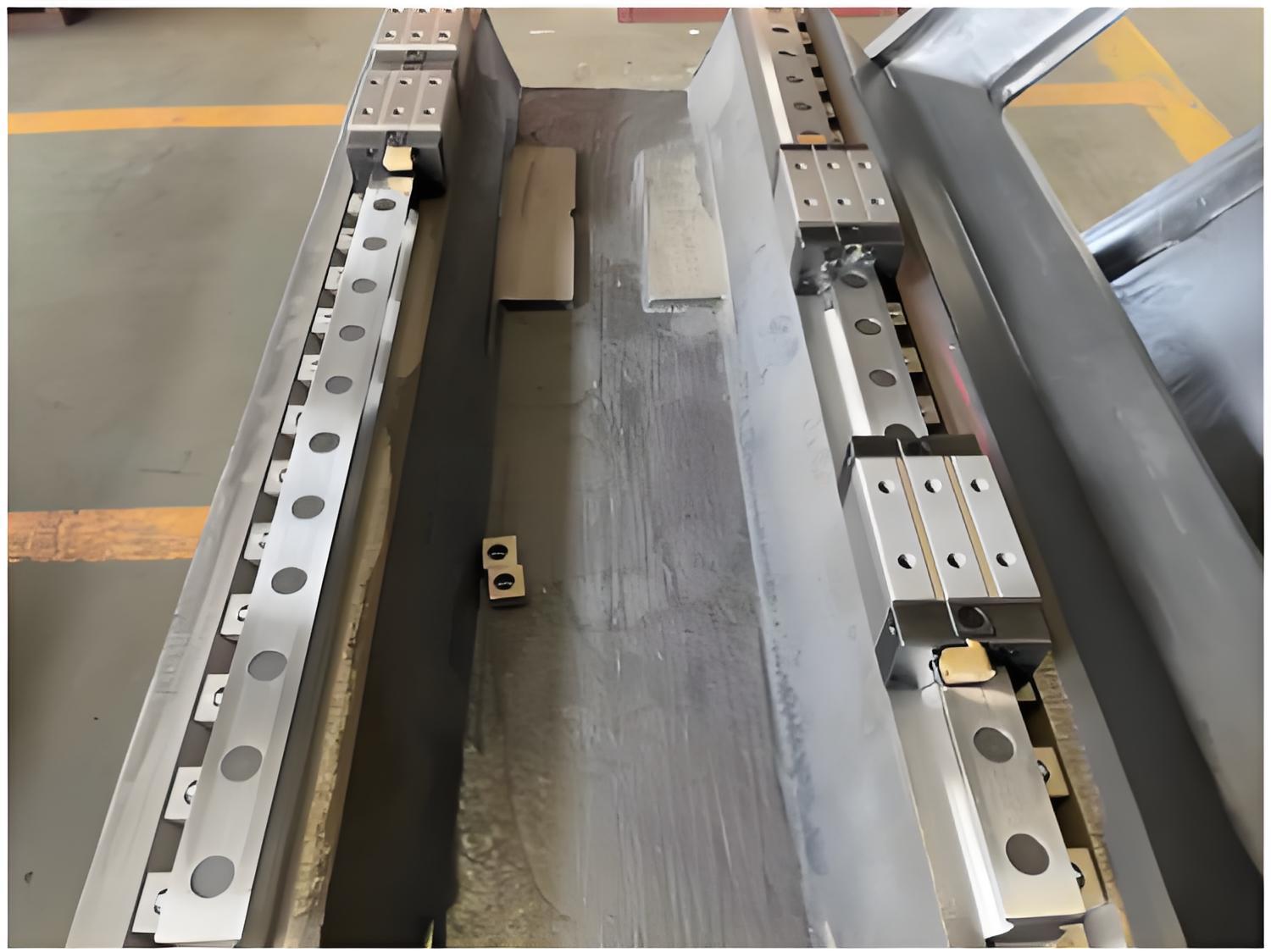

As a high-precision automated equipment, its core breakthrough lies in the integration of the 30° inclined bed design and the three-axis linkage numerical control system . The workpiece is fixed at the optimal mechanical angle, and in combination with the rapid tool changing function of the twelve-position power tool turret， it can achieve one-time processing of cylindrical， inclined surfaces and complex curved surfaces. Whether it is the deep hole drilling accuracy that replaces the radial drilling machine， or the precise thread processing that replicates the tapping machine， or even the shallow groove cutting characteristics integrated from the saw machine， all these processes can be completed by a single machine. The high-stiffness cast iron bed and the dynamic compensation module ensure processing stability， and the arc interpolation function further significantly improves the quality of batch production of irregular parts such as turbine blades.

Core Value

Composite Processing: Combined with inclined clamping and multi-axis control, it breaks through the technological boundaries of traditional lathes and tapping machines.

Precise Intelligence: The three-axis linkage system is equipped with dynamic compensation, and the surface accuracy reaches the micron standard.

Flexible Expansion: The modular tool tower design can accommodate saw machine tools, expanding the processing dimensions.

Operation Guide

Before batch processing, using the simulation function to verify the tool path trajectory can optimize the debugging time by 30%.

Regularly clean the positioning reference surface of the tool tower to ensure the accuracy of multiple process switching.

The CNC inclined bed lathe achieves performance iteration through an innovative architecture, injecting new impetus into precision manufacturing in fields such as automobiles and aerospace.
