I. Core Functions

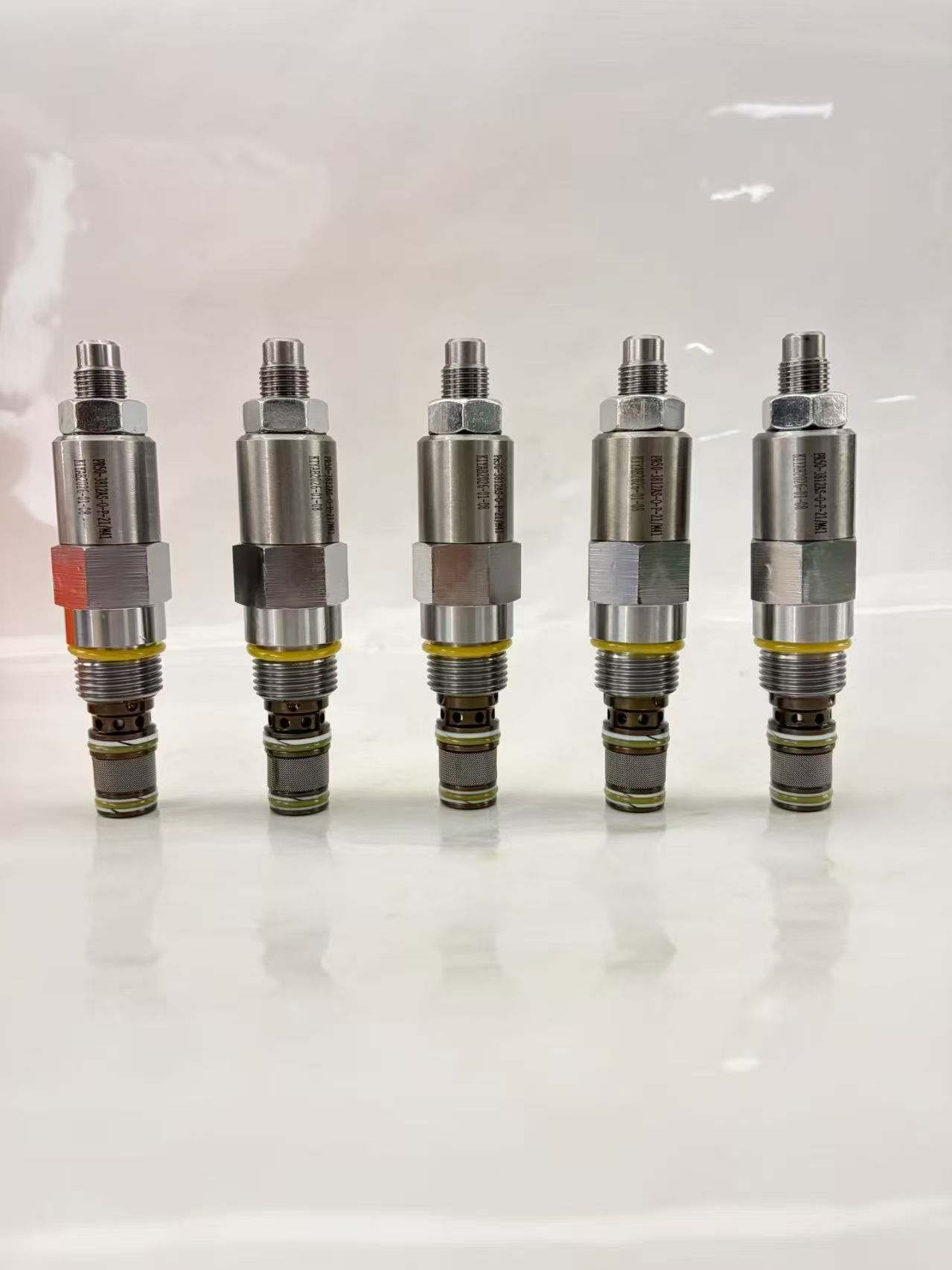

The P850-3812AS-P-21 hydraulic cartridge valve belongs to thepressure control valvecategory and is primarily used in hydraulic systems tolimit or regulate circuit pressure, preventing system overload. Its core functions include:
1. Pressure Protection: When system pressure exceeds the set value, the valve opens to divert excess oil back to the tank, protecting components such as pumps and motors from high-pressure damage.
2. Pressure Stabilization: By precisely controlling the relief pressure, it maintains system pressure within the set range, ensuring smooth operation of actuators (e.g., hydraulic cylinders).
3. Safety Redundancy: Serves as the final safety barrier in hydraulic systems, preventing equipment damage or accidents caused by sudden pressure changes.
II. Technical Characteristics
1. Cartridge-Style Design:
• Features athreaded-in installationthat directly inserts into hydraulic manifolds or valve bodies, reducing piping connections and minimizing leakage risks.
• Compact size, suitable for space-constrained hydraulic systems (e.g., construction machinery, industrial equipment).
2. Pressure Adjustment Range:
• Specific pressure settings should be referenced from the product manual, but typically coverslow to medium-high pressure(e.g., 10–350 bar), meeting diverse operational requirements.
• Enables stepless pressure adjustment via spring preload adjustment or external control signals (e.g., solenoid valves).
3. Sealing and Materials:
• Critical sealing areas usehigh-pressure, wear-resistant materials(e.g., PTFE, nitrile rubber) to ensure long-term sealing reliability.
• Valve bodies are typically made ofhigh-strength cast iron or stainless steel, suitable for harsh operating conditions (e.g., high temperatures, corrosive media).
4. Response Speed:
• Short dynamic response time, enabling rapid opening/closing to adapt to pressure surge scenarios (e.g., hydraulic shock).
III. Typical Application Scenarios
1. Construction Machinery:
• Used in hydraulic systems of excavators, loaders, etc., to protect main pumps and actuators (e.g., boom cylinders, bucket cylinders) from high-pressure impacts.
• Example: In an excavator’s swing system, this valve prevents pipeline rupture caused by excessive pressure during braking.
2. Industrial Equipment:
• Serves as a safety valve in hydraulic circuits of injection molding machines, die-casting machines, etc., ensuring safe execution of mold opening/closing and ejection actions.
• Example: In an injection molding machine’s clamping system, this valve limits clamping force to prevent mold damage.
3. Agricultural Machinery:
• Protects hydraulic motors and gear pumps in hydraulic systems of tractors, combine harvesters, etc., extending equipment lifespan.
IV. Selection and Installation Guidelines
1. Selection Criteria:
• System Pressure: Choose a valve with a rated pressure slightly higher than the system’s maximum operating pressure (with a safety margin).
• Flow Requirements: Ensure the valve’s flow capacity (L/min) meets system demands to avoid excessive pressure drops.
• Media Compatibility: Select valves made of corrosion-resistant materials based on the hydraulic fluid type (e.g., mineral oil, water-based fluids).
2. Installation Precautions:
• Cleanliness: Thoroughly clean the hydraulic manifold and valve before installation to prevent contamination-induced jamming or leakage.
• Orientation: Ensure the valve is installed in the correct direction relative to oil flow (usually indicated by an arrow on the valve body).
• Preload Force: Tighten the threads according to the product manual to avoid leaks from loose connections or valve body damage from over-tightening.
V. Maintenance and Troubleshooting
1. Regular Inspections:
• Check for leaks, corrosion, or physical damage on the valve body.
• Monitor system pressure to confirm the valve opens at the set pressure.
2. Common Faults and Solutions:
• Leakage: Replace seals or check for loose threaded connections.
• Unstable Pressure: Clean the valve interior and inspect for spring fatigue or jamming.
• Failure to Open: Verify control oil passage patency or check for valve blockage by contaminants.
