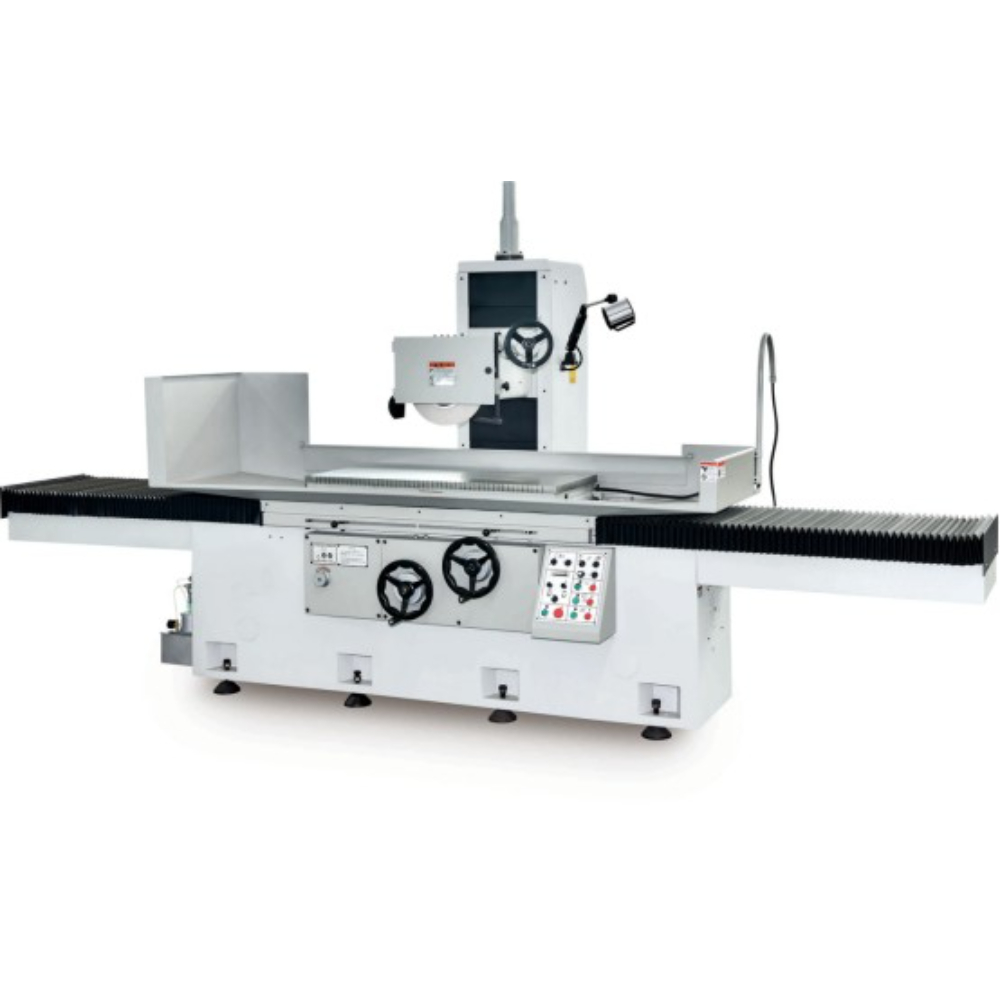

50100AHR AHD High precision flat grinding machine

2 month ago

1 0

HengDaFlow Industrial Machinery (Jiangsu) Co., Ltd.

 2 year year

Product details

Precision Planar Grinding Machine 50100AHR/AHD: High-efficiency Processing Solution

In the field of mechanical manufacturing, processing equipment often faces issues such as insufficient precision stability and poor adaptability to multiple materials. To meet the industry's demand for high-precision planar processing, the precision planar grinding machine 50100AHR/AHD, through modular design and innovative processes, provides an efficient solution for metal material grinding. This equipment is specifically developed for the mechanical processing and mold industries and can be compatible with steel, cast iron, and non-ferrous metal processing. It can be combined with saw machines for material pre-treatment and also work with tapping machines to complete subsequent processes, achieving full-process precision control.

Core functions and value highlights
Multifunctional compatibility design: Supports electromagnetic discs or mechanical fixtures for multiple modes of clamping, meeting the requirements for fixing complex workpieces.
Precise structural process: Utilizes H-shaped reinforced columns and dual V-slide design, combined with wear-resistant resin slides, effectively reducing processing vibrations and ensuring ±0.002mm level of precision stability.
Intelligent lubrication system: Equipped with an electromagnetic pump for automatic oil circulation, compared to traditional grinding machines, it reduces the frequency of manual maintenance by 80%.

Frequently Asked Questions (FAQ)
Q: Can this machine be used in conjunction with the existing saw machine in the production line?
A: The worktable design of this machine is compatible with standardized fixtures, and it can receive the semi-finished products cut by the saw machine for direct processing, without the need for secondary positioning.

Q: Does the main shaft need to have the lubricant replaced frequently?
A: With the sealed grease lubrication system, a single injection of grease can support continuous operation for 800 hours, significantly reducing the cost of downtime and maintenance.

Q: Will there be any interference when running simultaneously with the tapping machine?
A: The entire machine is equipped with an independent voltage stabilizing module, which has excellent anti-electromagnetic interference performance. This ensures the stability when working in coordination with equipment such as the tapping machine.

Q: How to ensure the accuracy in processing special-shaped workpieces?
A: It is recommended to use a combination of magnetic suction cups and mechanical fixtures, and activate the spindle temperature protection function to prevent material thermal deformation.

Operation Optimization Suggestions
Material Pre-treatment: When using a saw machine for material processing, it is recommended to leave a 0.05-0.1mm grinding space.
Tool Coordination: Before using a tapping machine for tapping, it is advisable to first perform fine grinding on the reference surface with this machine to improve the verticality of the thread processing.
This machine deeply combines international standard design with local improvements and is suitable for scenarios such as mold repair and precision component manufacturing, providing stable and reliable planar grinding solutions for metal processing enterprises.

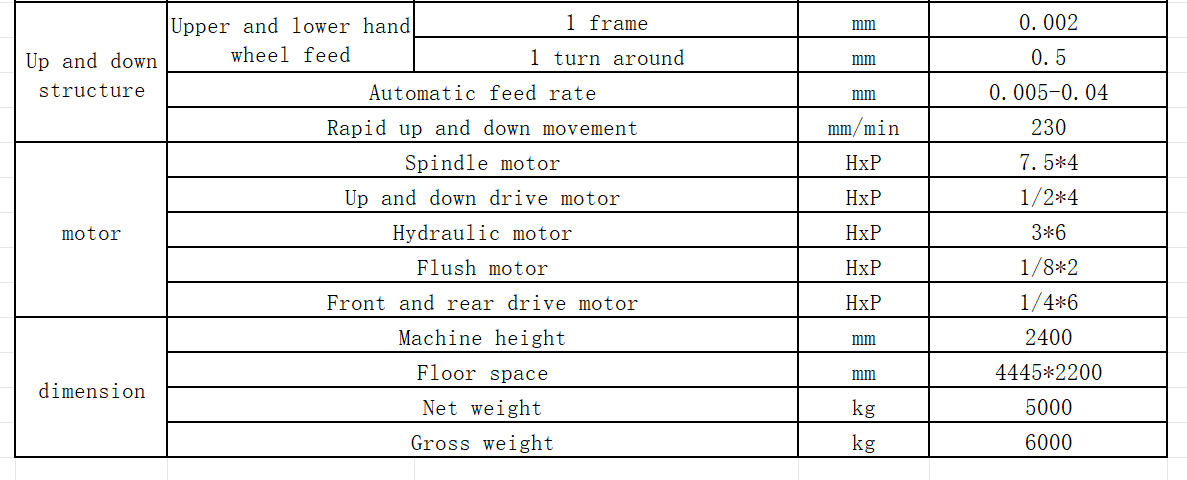

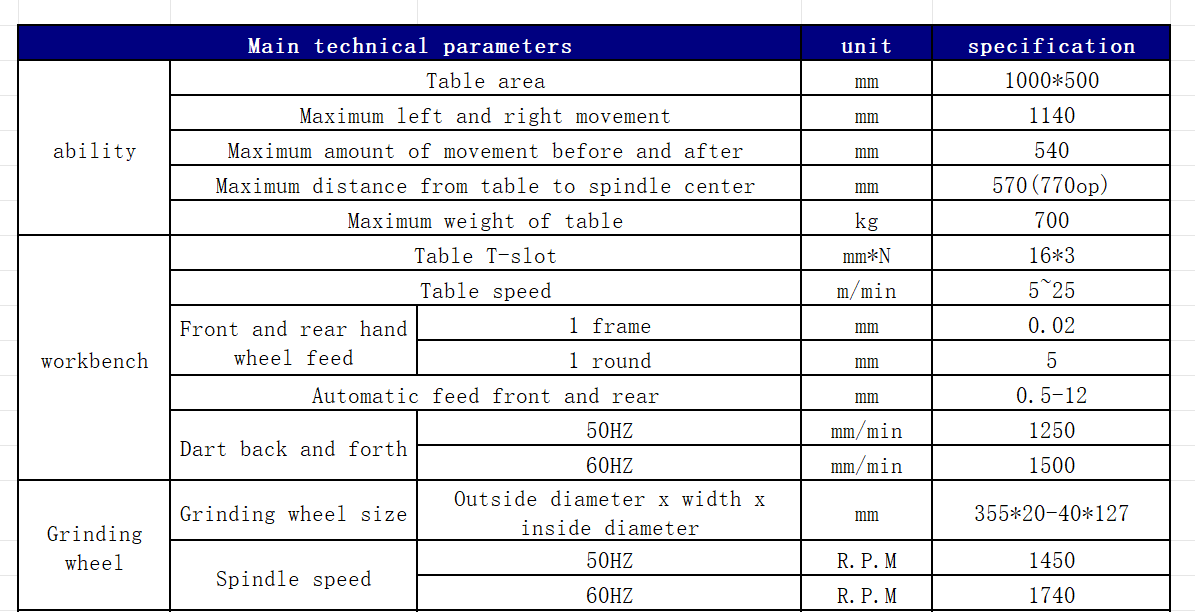

Precision surface grinding machine 50100AHR/AHD main technical parameters
