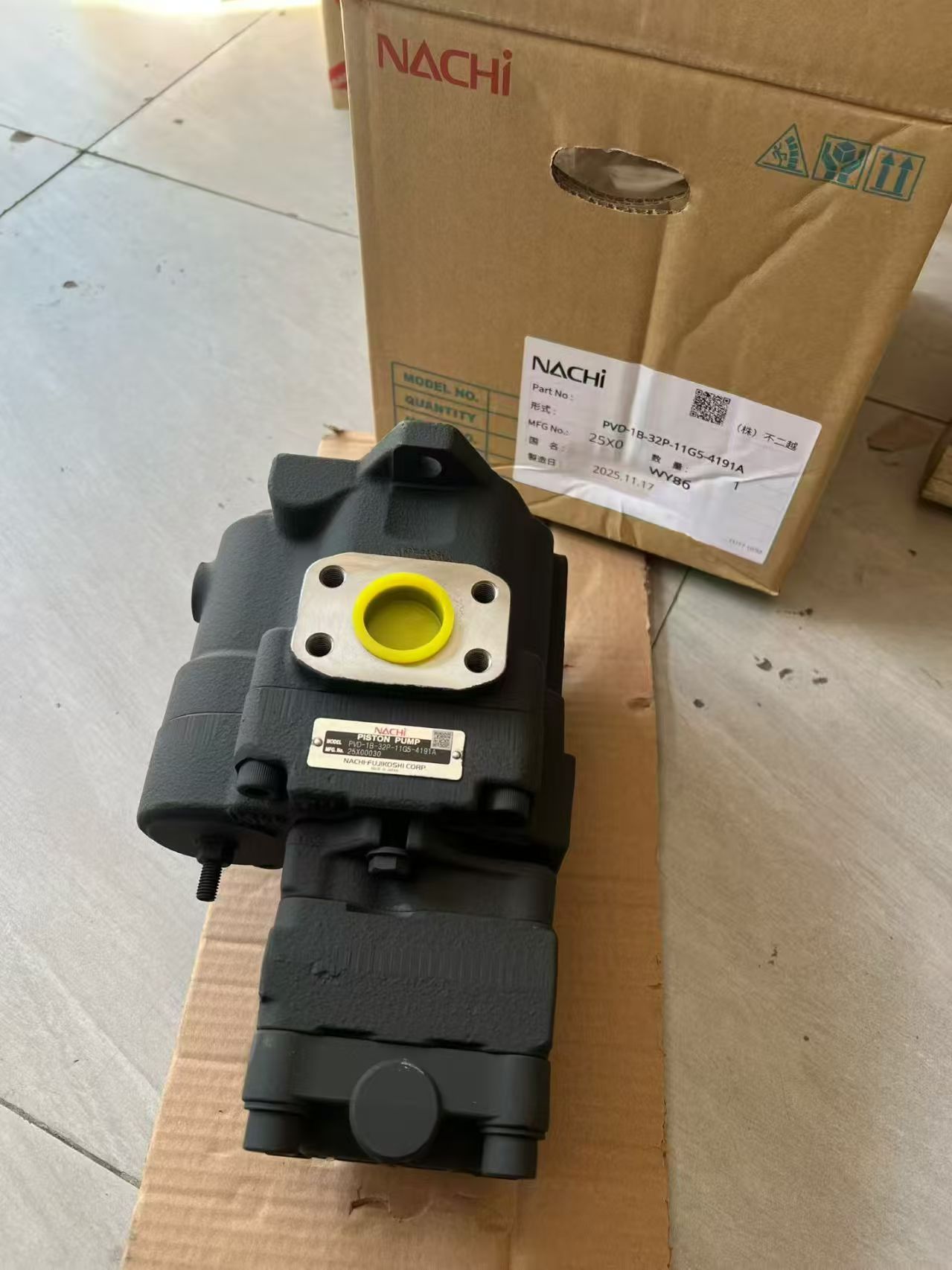

NACHI PISTON PUMP PVD-1B-32P-11G5-4191A

4 week ago

0 0

Ningbo Hengnuo Hydraulic Drive Co.,Ltd

 4 year year

Product details

I. Product Overview

• Type: Axial-piston variable-displacement pump, which adjusts the pump's displacement by changing the angle of the swashplate, enabling stepless flow regulation.

• Features: Boasts high power density, high efficiency, long service life, and low noise. Its unique semi-cylindrical swashplate design maintains stable oil output, reduces flow losses, and effectively utilizes power according to load cycles.

------

II. Technical Specifications

• Brand: NACHI

• Model: PVD-1B-32P-11G5-4191A

• Structure: Piston pump

• Material: Cast iron

• Application Scope: Construction machinery

• Applicable Medium: Hydraulic oil

• Applicable Temperature: 30-90℃

• Nominal Pressure: 32 MPa

• Mounting Type: Flange

------

III. Application Areas

• Construction Machinery: Such as excavators and loaders, which require high-pressure and large-flow hydraulic systems.

• Industrial Equipment: Such as injection molding machines and die-casting machines, which require precise control over the flow direction and rate of hydraulic oil.

------

IV. Product Advantages

• High Efficiency: The unique axial-piston design ensures high efficiency during operation, minimizing energy losses.

• Long Service Life: Constructed with high-quality materials and precision machining processes, ensuring longevity even in harsh working environments.

• Low Noise: Incorporates noise-reducing structures at the slipper, swashplate, and port plate, achieving low-noise operation.

• Energy-Saving and Environmentally Friendly: Reduces unnecessary energy consumption by precisely controlling the flow and pressure of hydraulic oil, promoting energy efficiency and environmental protection.
