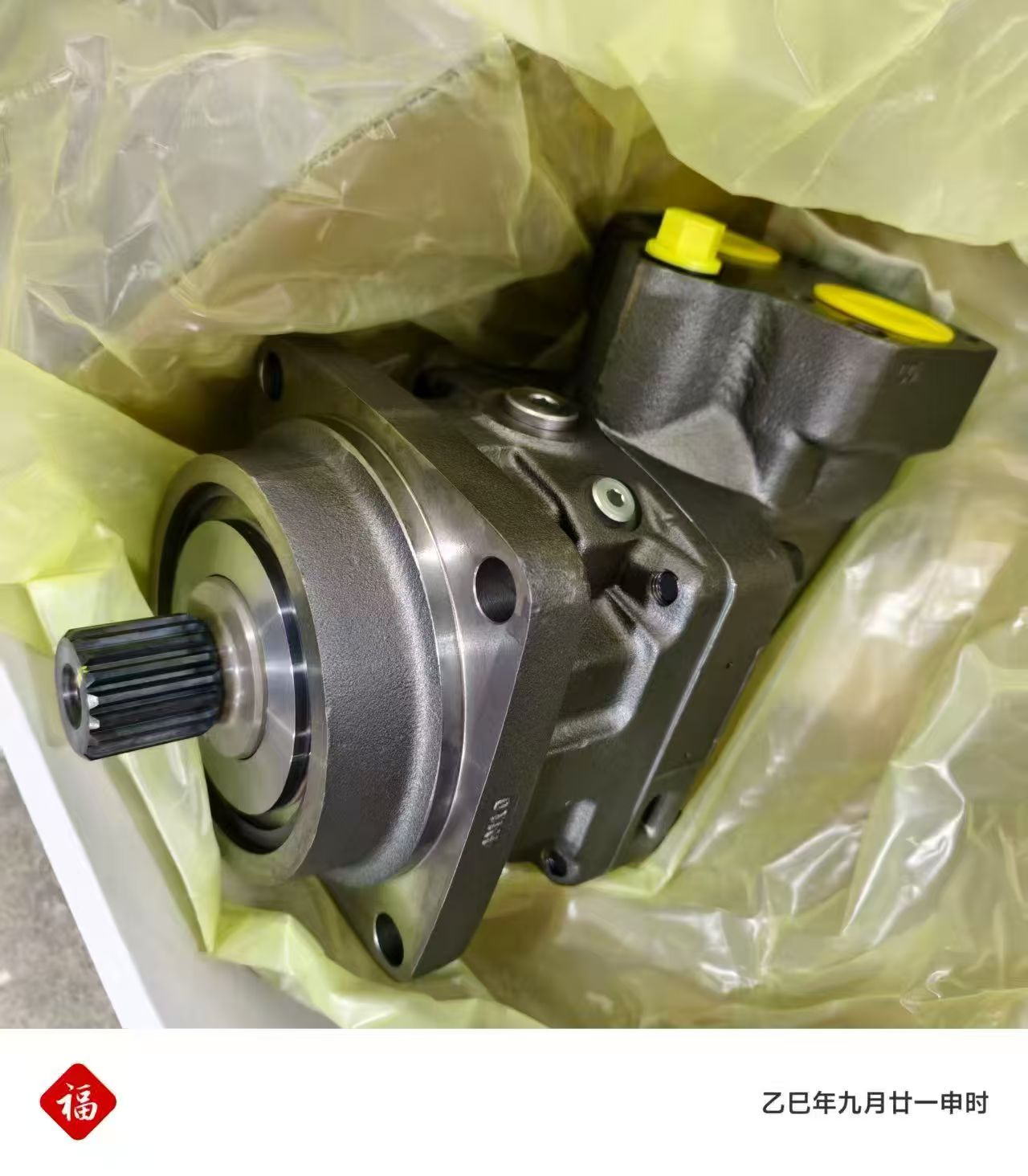

F12-090-MF-IV-D-000-0000-P0 Hydraulic Piston Pump (Parker Hydraulic Motor) Detailed Introduction
I. Product Overview
The F12-090-MF-IV-D-000-0000-P0 is a high-performance hydraulic transmission component developed and manufactured by Parker Hannifin Corporation in the United States. It belongs to the F12 series of hydraulic motors/pumps and features an advanced piston-type structure. This product offers high torque, high speed, high efficiency, and low noise, making it widely applicable in fields such as construction machinery, agricultural machinery, marine vessels, and oil machinery.
II. Product Features
1. High Power Density:
• Enables higher power output within a smaller space, meeting the needs of compact equipment.
2. High Efficiency:
• Utilizes advanced hydraulic technology and design to complete tasks in a shorter time, enhancing production efficiency.
3. Low Noise:
• Unique port plate design and laminated piston rings effectively reduce noise levels, improving the working environment.
4. High Reliability:
• Advanced design and manufacturing techniques ensure stable and efficient operation under various harsh working conditions.
• Heavy-duty roller bearings can withstand significant external axial and radial loads, extending service life.
5. Compact Structure:
• The 40° angle between the shaft and cylinder block results in a compact and lightweight design, facilitating easy installation and maintenance.
6. Multiple Control Methods:
• Supports on/off control, proportional control, electronic control, and other control methods, allowing selection of the most suitable control method based on application requirements.
7. High Temperature and Pressure Resistance:
• Operates at pressures up to 480 bar (some sources mention 40 MPa or 150 MPa; refer to the actual product for specifics), providing high output power capabilities.
• Suitable for a wide temperature range, functioning normally in environments from 30°C to 90°C.
III. Technical Specifications
• Model: F12-090-MF-IV-D-000-0000-P0
• Displacement: 785cc (some sources mention 90cc or other specifications; refer to the actual product for specifics)
• Torque: 135Nm (specific torque may vary based on product specifications and operating conditions)
• Power: 1500W (specific power may vary based on product specifications and operating conditions)
• Rated Speed: Up to 7300 RPM (some sources mention 600-3000 RPM; refer to the actual product for specifics)
• Weight: Approximately 50kg (specific weight may vary based on product configuration and materials)
• Applicable Medium: Hydraulic oil
• Mounting Forms: CETOP, ISO, SAE, and SAW mounting forms are available
IV. Application Areas
The F12-090-MF-IV-D-000-0000-P0 hydraulic piston pump is widely used in the following fields:
1. Construction Machinery: Such as excavators, loaders, and road rollers.
2. Agricultural Machinery: Such as tractors and harvesters.
3. Marine Machinery: Such as ship propulsion systems and steering gear.
4. Oil Machinery: Such as drilling platforms and oil pumps.
5. Other Fields: Such as metallurgical machinery, mining machinery, and port machinery.
V. Maintenance and Upkeep
1. Regular Inspection:
• Regularly check the oil level, oil temperature, oil pressure, and vibration parameters of the hydraulic motor to ensure normal operation.
2. Keep Clean:
• Maintain the cleanliness of the hydraulic system to prevent damage to hydraulic components from impurities and particles.
3. Filter Maintenance:
• Regularly clean or replace the oil filters to prevent oil blockage.
4. Professional Repair:
• If any faults or abnormalities are detected in the hydraulic motor, promptly contact professional repair personnel for inspection and maintenance.
