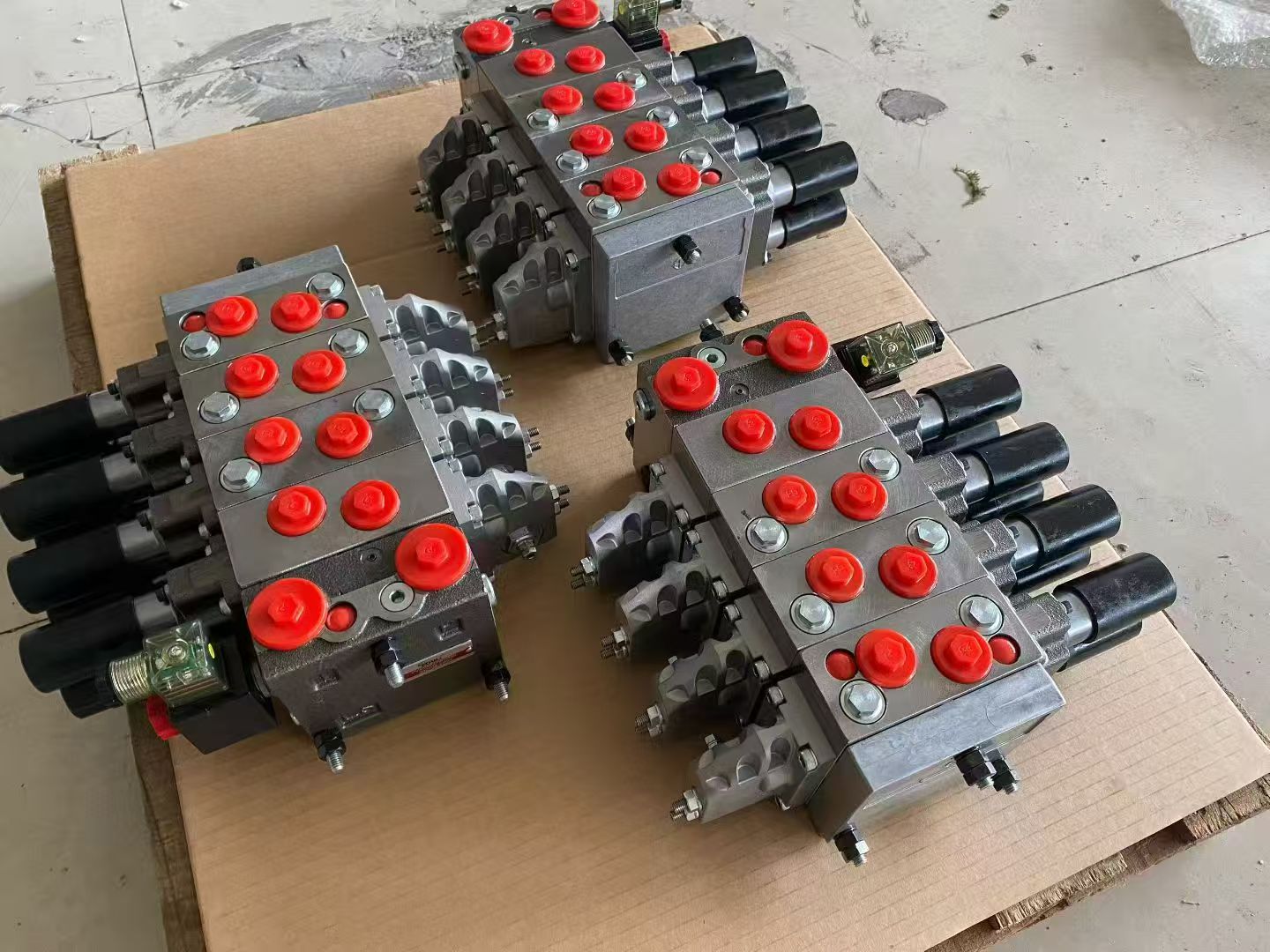

PVG32 Hydraulic Multi-Way Valve

The PVG32 Hydraulic Multi-Way Valve, manufactured by Danfoss, is a high-performance hydraulic valve widely used in municipal vehicles, construction machinery, self-propelled agricultural vehicles, farming implements, drilling rigs, workover rigs, cranes, and construction equipment. Below is a detailed introduction to its features, applications, and technical specifications:

------

I. Technical Features

1. Modular Design

• The PVG32 adopts a modular design concept, allowing flexible combination into valve groups with different functions based on user requirements.

• Compact dimensions and lightweight construction facilitate easy installation and maintenance.

2. Load-Sensing and Flow Control

• The PVG32 is a load-sensitive hydraulic valve with load-independent flow control capabilities.

• Flow to each working module remains independent of load pressure, ensuring consistent actuator speeds under varying loads.

• Utilizespre-valve pressure compensationfor flow control, enabling seamless integration with fixed-displacement pumps to form a valve-controlled load-sensing hydraulic circuit. This improves flow control during valve spool movement.

• When paired with variable-displacement pumps, it forms apump-controlled load-sensing hydraulic circuit, matching pump output (pressure and flow) precisely to load demands, reducing energy waste.

3. Multiple Control Methods

• Supports various control modes, including manual, hydraulic, high-precisionPVE (Proportional Valve Electro-Hydraulic Control Module), and CAN bus control.

• The PVE control module offers advanced electronic control functions, enabling rapid response, high safety levels, and effective fault monitoring.

4. Energy Efficiency and High Performance

• Designed to minimize heat generation, enhancing operational efficiency and power density.

• Excellent speed regulation characteristics help reduce energy consumption, meeting challenges posed by new diesel engine emission regulations.

5. Diverse Functional Modules

• Integrates multiple functional modules, such ascushion valves, make-up valves, and secondary pressure-limiting valves, to meet diverse hydraulic system requirements.

------

II. Applications

1. Municipal Vehicles

• Used in refuse trucks, street sweepers, and other vehicles requiring simultaneous operation of multiple actuators with independent speed control.

2. Construction Machinery

• Ideal for excavators, loaders, and other equipment demanding precise control over actuator movement and speed.

3. Agricultural Vehicles

• Suitable for combine harvesters, tractors, and other farming implements needing adaptation to varying operating conditions and load changes.

4. Other Fields

• Applied in drilling rigs, workover rigs, cranes, and other equipment requiring high-performance hydraulic multi-way valves for stable operation.

------

III. Technical Specifications

1. Nominal Pressure

• Rated operating pressure:350 bar(maximum400 bar).

2. Operating Flow

• With pressure compensators: Maximum flow rate of130 L/min.

3. Valve Group Configuration

• Each valve group can accommodate up to10 PVB32 working modulesand can be combined with other PVG series valves (e.g., PVG16, PVG100).

4. Connection Options

• Provides various port thread types and connector forms for compatibility with different hydraulic systems.
