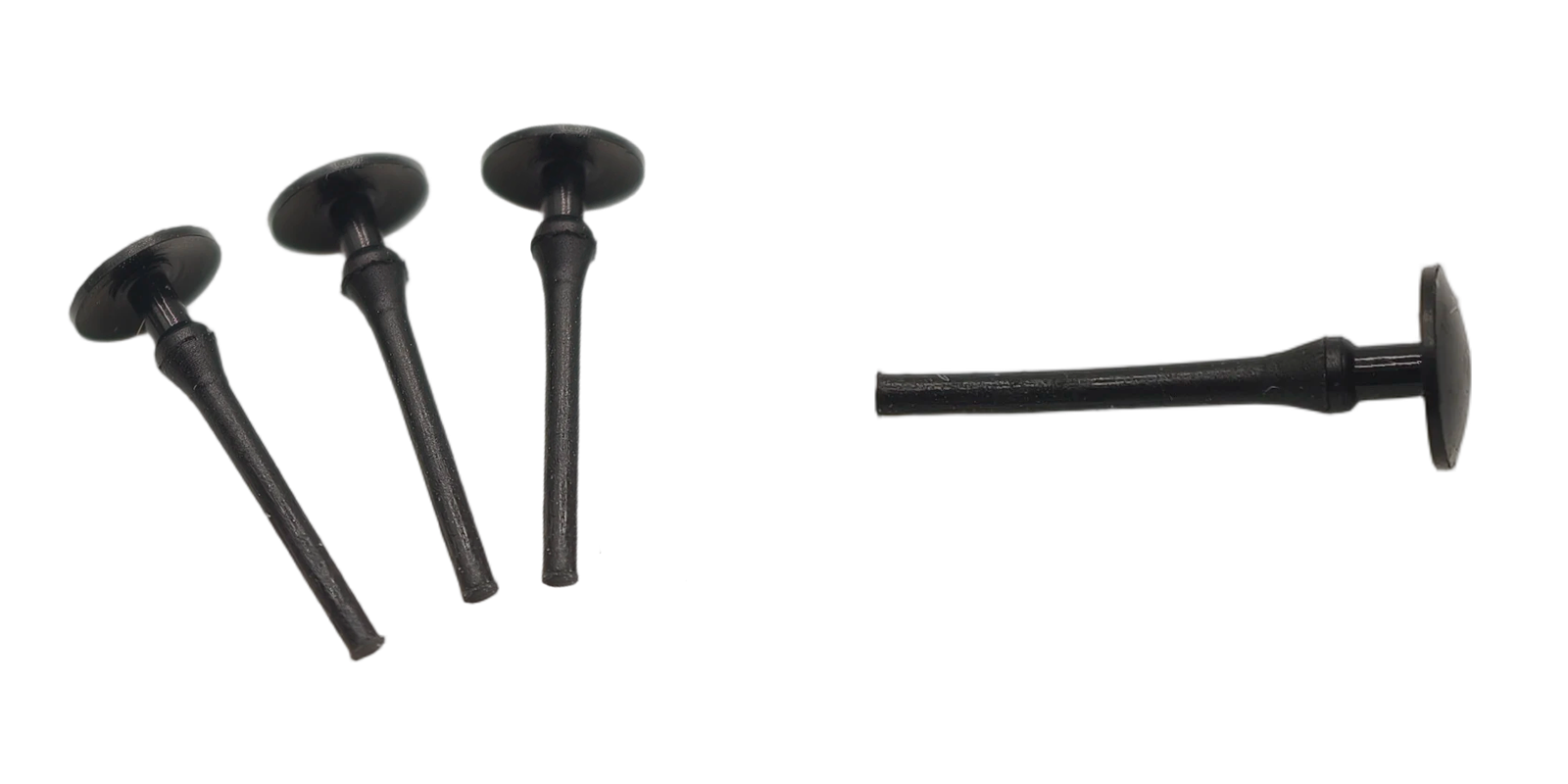

This is an EPDM rubber one-way umbrella valve engineered for pneumatic diaphragm pumps. It is fabricated from EPDM material. It features an integrated "umbrella cap + rod" structure. Its overall configuration consists of a top umbrella-shaped sealing cap, a middle transition section, and a bottom slender rod. The edge of the umbrella-shaped cap is smooth and flat. The rod surface is sleek with subtle textures. Its hardness rating is 45–50°. The umbrella valve is soft yet highly elastic. It perfectly fits into the flow channel mounting position of pneumatic diaphragm pumps.As a core flow control component for fluid transfer systems, it complies with the performance standards of Sealed Diaphragm Pump and Sealed Fluid Transfer Pump. It is fully compatible with the application requirements of Check and Non-Return Valves and One-Way Flow Valves.
Product Features
1.Functions
1)Unidirectional Fluid Control for Pneumatic Diaphragm PumpsIt serves as a one-way cutoff component in the pump’s flow channel. It only allows fluid to pass in a single direction (e.g., the pump’s suction/discharge direction). It prevents medium backflow during pump operation. This unidirectional control meets the functional demands of Reverse Prevention Valves in fluid transfer systems.
2)Flow Channel Sealing & Leak PreventionThe umbrella-shaped sealing cap fits tightly against the inner wall of the pump’s flow channel. It fills gaps in the flow path to block medium leakage in non-transfer directions. It prevents external impurities from entering the flow channel and causing clogging. This sealing performance aligns with the requirements of Fluid Check Mechanisms for leak-free operation.
3)Adaptation to High-Frequency Pump OperationsIt leverages the elasticity of low-hardness EPDM. It adapts to the high-frequency reciprocating transfer motions of pneumatic diaphragm pumps. It opens and closes rapidly in response to fluid pressure changes. It ensures continuous, stable pump operation.
2.Performance Characteristics
1)EPDM Material + 45–50° Low Hardness Balances Elasticity and Sealing ForceEPDM boasts excellent water resistance, temperature resistance (suitable for pneumatic diaphragm pump working conditions ranging from -40℃ to 150℃), and anti-aging properties. The 45–50° low-hardness setting endows the umbrella-shaped sealing cap with sufficient soft elasticity. It fits tightly against the inner wall of irregular flow channels. It enables rapid deformation for opening and closing under fluid pressure. It eliminates jamming issues caused by excessively high hardness. This material performance aligns with the technical specifications of Mini Sealed Valve and high-flexibility fluid control components.
2)Umbrella + Rod Structure Enhances One-Way Control ReliabilityThe top umbrella-shaped sealing cap increases the contact area with the flow channel. It delivers stronger sealing adhesion. The bottom rod structure can be precisely embedded into the flow channel mounting groove. It prevents the one-way valve from shifting under fluid impact. It ensures stable one-way cutoff performance. This structural design complies with the matching standards of Directional Control Valves and integrated fluid transfer systems.
3)Resistance to Multi-Medium Corrosion for Complex Transfer ScenariosIt exhibits excellent tolerance to various media such as water, weak acid/alkali solutions, and common industrial solvents. It will not swell or degrade after contact with these media. This allows it to meet the diverse fluid transfer requirements of pneumatic diaphragm pumps. It extends the scope of application.
3.Application Scenarios
1)Flow Channel Control for Pneumatic Diaphragm PumpsIt is suitable for pneumatic diaphragm pumps in the chemical and water treatment industries. It is used for one-way cutoff in the pump’s suction/discharge flow channels. It controls the transfer direction of media such as water, chemical solvents, and sewage. It is a key component for Sealed Fluid Transfer Pump systems in industrial fluid handling.
2)Small-Sized Fluid Transfer EquipmentIt is applicable as a flow channel one-way valve in laboratory small pneumatic pumps and medical fluid transfer pumps. It ensures unidirectional delivery of sample liquids and reagents. It meets the precision requirements of Micro Sealed Hydraulic Pump auxiliary flow control units.
3)Food and Beverage Transfer EquipmentIt can be used in food-grade pneumatic diaphragm pumps (with food-grade EPDM selected). It controls the one-way transfer of media such as beverages and sauces. It avoids cross-contamination. It complies with the safety standards of Sealed Diaphragm Pump components for food contact scenarios.
4. Pain Point Solutions
1)Solving Pump Efficiency Reduction Caused by Fluid BackflowWithout one-way control, ordinary flow channels are prone to medium backflow. It leads to low pump transfer efficiency and increased energy consumption. This one-way valve achieves strict one-way cutoff. It ensures high-efficiency pump operation. It optimizes the performance of Check and Non-Return Valves in fluid systems.
2)Resolving Leakage Issues from Poor Flow Channel SealingRigid seals have poor adhesion to flow channels. They easily cause medium leakage. The umbrella-shaped structure made of low-hardness elastic EPDM can tightly fill flow channel gaps. It completely eliminates leakage risks. It improves the sealing reliability of Directional Control Valves.
3)Addressing Opening/Closing Jamming Under High-Frequency OperationsHigh-hardness one-way valves tend to jam under the high-frequency motions of pumps. They fail to respond promptly to fluid pressure changes. The 45–50° low-hardness feature enables rapid opening and closing. It perfectly adapts to the high-frequency working conditions of pneumatic diaphragm pumps. It avoids jamming problems common in One-Way Flow Valves.
4)Solving Compatibility Problems in Multi-Medium TransferOrdinary rubber one-way valves struggle to withstand complex media. They require frequent replacement. The medium resistance of EPDM allows adaptation to various fluids. It improves equipment versatility and extends maintenance cycles. It enhances the durability of Fluid Check Mechanisms in harsh working environments.
