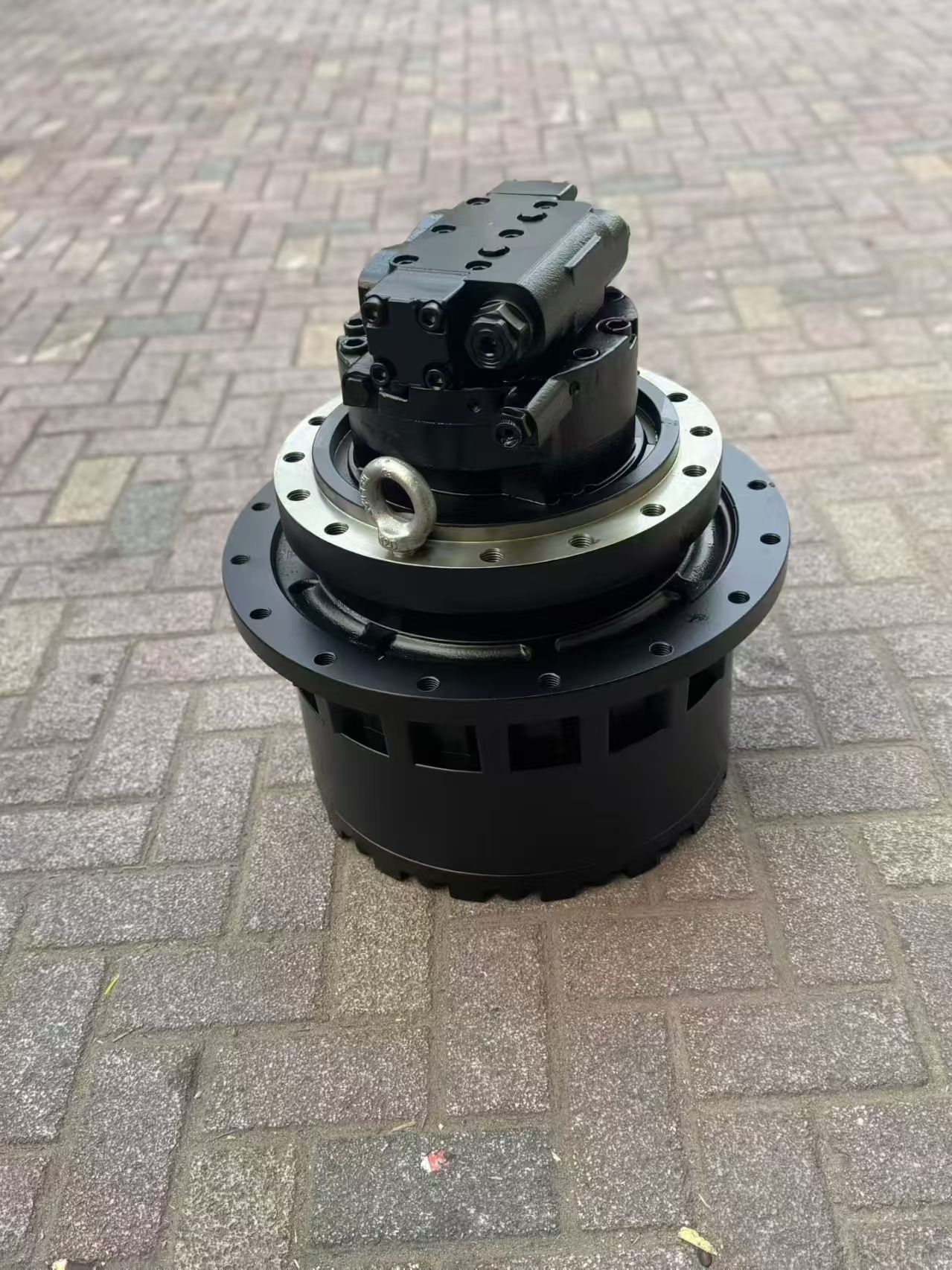

Caterpillar 320C / Caterpillar 320D Travel Motor Assembly
Thetravel motor assemblyis a core component of Caterpillar excavators' hydraulic drive system, converting hydraulic energy into mechanical energy to power the machine's movement. Below is a detailed introduction covering its technical principles, structural components, performance features, maintenance guidelines, and more.
------
I. Technical Principles
The travel motor operates onhydraulic transmission principles, using high-pressure oil from the hydraulic pump to drive the motor's rotation. This rotation is then amplified by a planetary gear reducer to deliver torque to the tracks or wheels, enabling excavator movement. Key functions include:
1. Torque Output: Provides sufficient driving force for diverse terrains (e.g., slopes, muddy ground).
2. Speed Adjustment: Enables stepless speed control via hydraulic oil flow regulation.
3. Direction Control: Switches hydraulic oil flow direction through directional valves for forward, reverse, and steering.
------
II. Structural Components
The Caterpillar 320C/320D travel motor assembly typically consists of:
1. Hydraulic Motor: Aswashplate axial piston motorwith high efficiency and power density.
2. Planetary Gear Reducer: Uses multi-stage planetary gears to convert high-speed rotation into low-speed, high-torque output.
3. Brake: Integrates ahydraulically released, spring-applied parking braketo prevent track slippage during shutdown.
4. Valve Group: Includes makeup valves, relief valves, and balancing valves to protect the system from overload or pressure surges.
5. Housing and Seals: High-strength cast iron housing with heat-resistant, wear-resistant seals to prevent hydraulic oil leakage.
------
III. Performance Features
1. High Reliability:
• Built withwear-resistant materialsand precision machining for long-term stability under heavy loads.
• Fully enclosed brake design prevents sand/mud intrusion, extending service life.
2. Energy Efficiency:
• Volumetric efficiency of the swashplate motor exceeds95%, minimizing energy loss.
• Variable pump-motor systems adjust displacement automatically based on load, reducing fuel consumption.
3. Adaptability:
• Operates in temperatures ranging from-20°C to 50°C, suitable for extreme environments.
• Fluororubber (FKM) seals resist chemical corrosion and work with various hydraulic fluids.
4. Easy Maintenance:
• Modular design allows individual replacement of critical components (e.g., brakes, valves).
• Standard inspection ports simplify routine checks and upkeep.
------
IV. Common Failures & Maintenance
1. Failure Symptoms:
• Weak Travel: Caused by internal motor leakage, incomplete brake release, or reducer wear.
• Abnormal Noise/Vibration: Results from planetary gear wear, bearing damage, or contaminated hydraulic oil.
• Oil Leakage: Stemming from seal aging, housing cracks, or loose connecting bolts.
2. Maintenance Recommendations:
• Replace Hydraulic Oil: Every2,000 hoursor annually, using Caterpillar-specified fluids (e.g., HD46).
• Clean Filters: Inspect/replace suction filters every500 hoursto prevent debris entry.
• Check Brakes: Verify brake clearance every1,000 hoursfor reliable stopping.
• Monitor Pressure: Use pressure gauges to detect system abnormalities and troubleshoot relief valves or pumps promptly.
------
V. Selection & Replacement
1. Model Compatibility:
• Ensure the assembly matches the original machine model (320C/320D) to avoid performance issues.
• Refer to Caterpillar parts manuals (e.g.,SEBU6251) for motor displacement, reduction ratios, and other parameters.
2. Genuine Parts:
• PrioritizeCaterpillar OEM partsor authorized distributors for quality assurance and warranty support.
• Beware of counterfeits, which may fail prematurely due to substandard materials/workmanship.
------
VI. Applications
The Caterpillar 320C/320D travel motor assembly is widely used in:
• Mining: Withstands high-load, continuous operations in harsh environments.
• Construction: Provides stable traction on muddy or soft ground.
• Earthmoving: Efficiently handles excavation, loading, and grading tasks.
• Disaster Relief: Enables rapid response in complex terrains during rescue missions.
