Micro Gear Pump for Coffee Machine

6 month ago

23 0

J-Tron Technologies Zhuhai Co., Ltd

 12 month year

Product details

Product Description

J-Tron recommands you food grade magnetic dive gear pumps for food industry particularly in coffee machine segment. This mini 316L magnetic drive gear pump has high pressure that max reaches 20bar. This easily meet the requirement for coffee machines about 12bar to 15bar pressure to extract. This mini positive displacement pump has 3 kinds of flow rate that you can choose: 1.6L/min, 3.5L/min, and 6L/min for the corresponding pressure: 20bar, 8bar, and 7bar. Food-grade PEEK for gears and stainless steel 316L for pump body. Highly seal performance because of EPDM o-ring and PTFE sealing. The viscosity of this pump is between 0.5cps to 1500cps, so that you can transfer water, alcohol, oil, ink, and other types of fluids. It is brushless motor and 0~5V speed control.

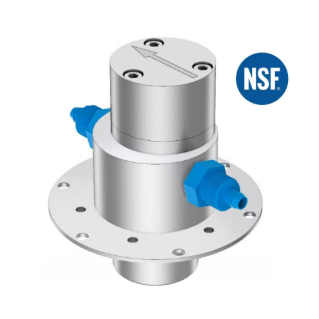

NSF Certified for Magnetic Drive Gear Pump

Advantage

Our stainless steel micro metering gear pump is certified to NSF for food equipment component. Not only use food-grade materials, but also the entire component granted certification to ensure the food safety.

Application

J-Tron food grade magnetic drive gear pump can be applied in lots of segments such as coffee machine, soft ice cream, canning, dispensing, and other applications that need to transfer liquid. You can contact us to get more information and updated specification.
