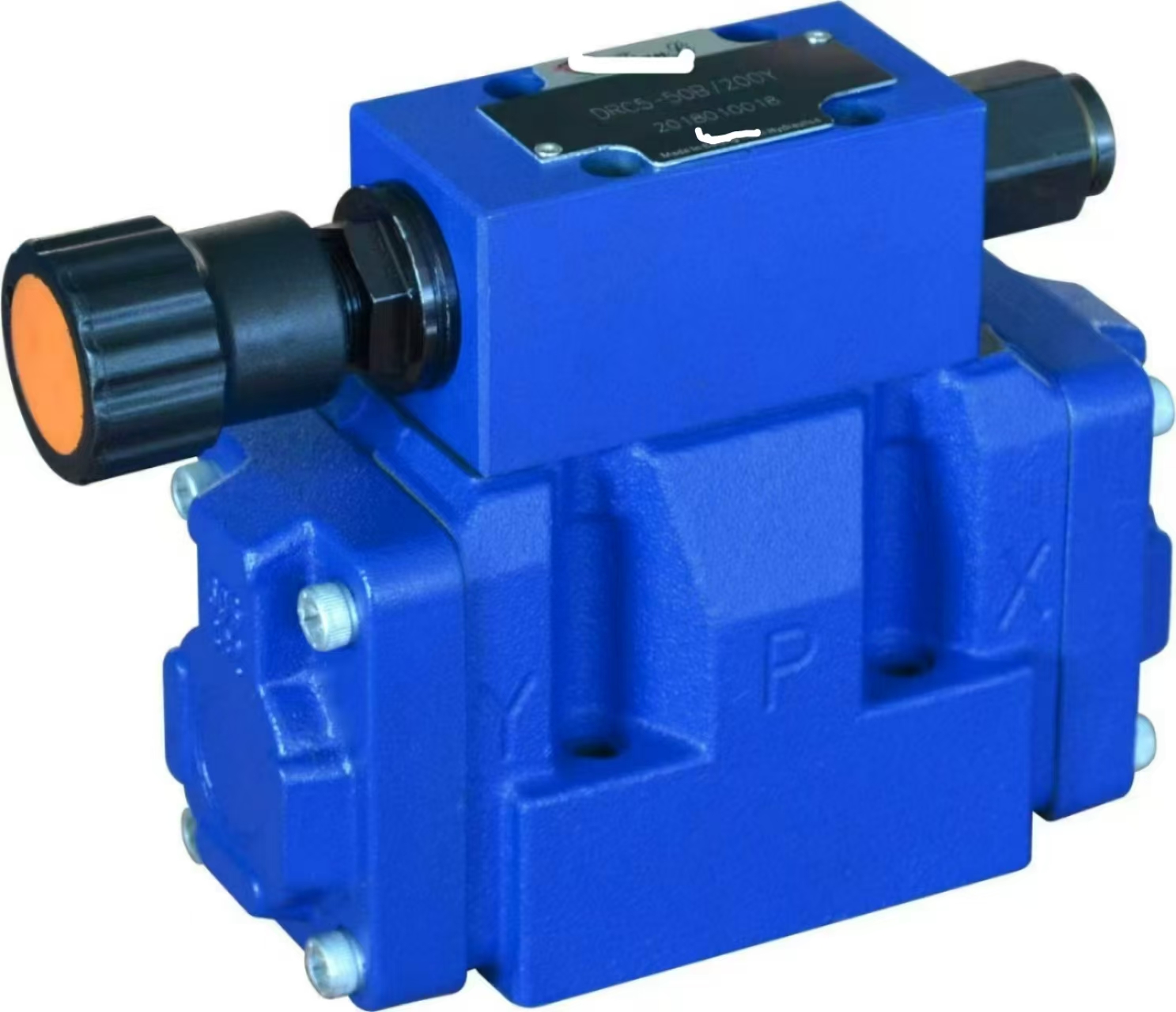

Pilot-operated Solenoid Relief Valve DBW20B

Pilot-operated Solenoid Relief Valve DBW20B

2 week ago

0 0

Ningbo Hengnuo Hydraulic Drive Co.,Ltd

 4 year year

Product details

Product Overview

• Brand & Model: The3DR10Pis a pilot-operated three-way pressure reducing valve fromRexroth (Bosch Rexroth).

• Application Scenarios: Primarily used to reduce system pressure and limit secondary circuit pressure in various industrial hydraulic systems.

------

Product Features

1. Structural Characteristics:

• Composed of a main valve with a control spool and a pilot control valve with pressure adjustment components.

• Features asubplate mountingdesign, with port mounting surfaces conforming toISO 4401-07-07-0-05standards.

2. Functional Characteristics:

• Pressure Regulation: Precisely controls the outlet pressure of the main valve by adjusting the pilot control valve, ensuring stable system pressure reduction.

• Pressure Limiting: Automatically opens when the outlet pressure exceeds the set value, releasing excess pressure back to the tank to protect the system from overpressure damage.

• Three-Way Design: Equipped with three ports (P, A, T) for inlet, outlet, and return, enabling complex hydraulic control functions.

3. Other Features:

• Multiple Pressure Ratings Available: Options include50 bar, 100 bar, 200 bar, 315 bar, etc., based on actual requirements.

• Adjustable Components Options: Offers various adjustment elements such as knobs, hex sockets with protective caps, and scaled lockable knobs for user convenience.

• High-Performance Materials: Manufactured with durable, corrosion-resistant materials and excellent sealing properties for long-term stable operation.

------

Technical Specifications (Example)

• Nominal Size: 10

• Maximum Operating Pressure: Up to315 bar(depending on model and configuration)

• Flow Rate: Varies by model and configuration (e.g., up to120 L/minfor some variants).

• Mounting Type: Subplate mounting

• Electrical Connection: Varies by model (e.g.,3-pin connector (2 + PE)compliant withEN 175301-803).

• Hydraulic Fluid Types:HL, HLP, HLPD, HVLP, HVLPD, HFC, etc.

• Seal Material:NBR (Nitrile Butadiene Rubber)orFKM (Fluorocarbon Rubber), etc.

------

Expanded Application Scenarios

• Industrial Hydraulic Systems: Such as injection molding machines, die-casting machines, and forging presses requiring precise pressure control.

• Construction Machinery: Including excavators and loaders requiring stable working pressure.

• Other Fields: Applicable in hydraulic systems across metallurgy, mining, shipbuilding, and other industries based on specific needs.
