1. Product Overview

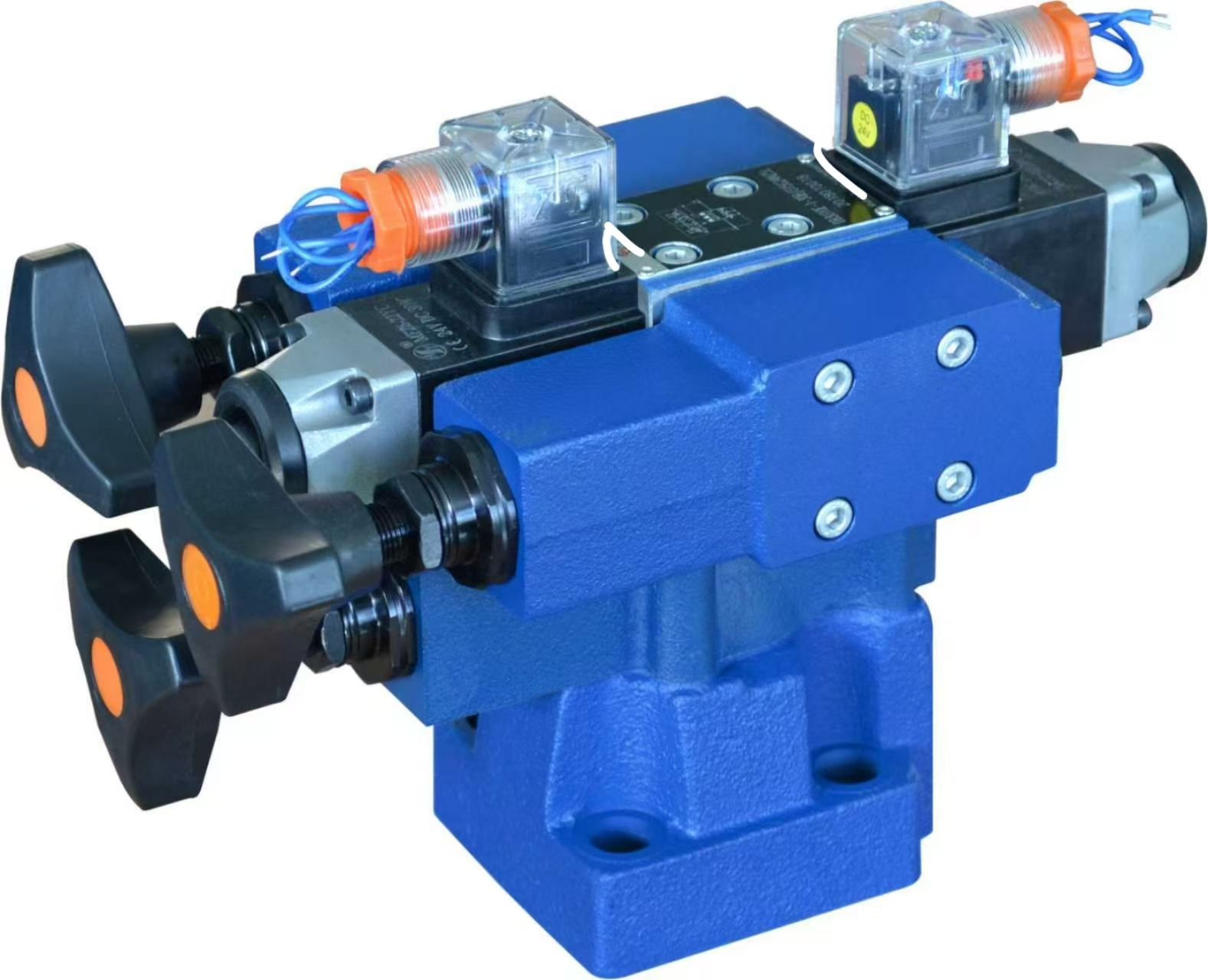

TheDB3U10is a multi-stage pilot-operated solenoid relief valve composed of a pilot valve and a main valve. It utilizes electromagnetic force to control the operation of the pilot valve, which in turn regulates the opening and closing of the main valve, achieving stable system pressure control. This valve is suitable for high-pressure, large-flow hydraulic systems and is widely used in industrial equipment, construction machinery, and other fields.

------

2. Technical Characteristics

1. Multi-Stage Pressure Reduction Design:

The DB3U10 employs a multi-stage pressure reduction design, enabling more precise pressure control, reducing pressure fluctuations, and enhancing system stability and reliability.

2. Solenoid-Operated Control:

By generating electromagnetic force through an energized solenoid coil, the valve controls the operation of the pilot valve, which subsequently regulates the opening and closing of the main valve. This control method offers fast response times and high control accuracy.

3. High Pressure and Large Flow Capacity:

The DB3U10 is designed for high-pressure, large-flow hydraulic systems, with a rated pressure of up to350 barand a wide flow range, meeting the demands of various industrial applications.

4. Modular Design:

The valve features a modular design for easy installation and maintenance. It also offers various adjustment components and electrical connection options to cater to different user requirements.

------

3. Structural Features

1. Pilot Valve and Main Valve:

The DB3U10 consists of a pilot valve and a main valve. The pilot valve controls the opening and closing of the main valve, while the main valve regulates system pressure.

2. Adjustment Components:

The valve provides multiple adjustment components, such as knob-type adjustment handles, screws with internal hexagons and protective caps, and lockable knob-type adjustment handles with scales. These components allow users to precisely adjust the valve's pressure according to actual needs.

3. Electrical Connections:

The DB3U10 offers various electrical connection options, including Z4 plug-in connectors (DIN43650) and Z5 large plug-in connectors. These connections facilitate easy integration with various electrical control systems.

4. Sealing Performance:

High-quality sealing materials are used to ensure reliable sealing under high pressure, preventing leakage.

------

4. Application Scenarios

The DB3U10 multi-stage pilot-operated solenoid relief valve is widely used in hydraulic systems requiring stable pressure control, such as:

1. Industrial Equipment:

Examples include injection molding machines, machine tools, and die-casting machines, which require stable pressure to ensure product quality and production efficiency.

2. Construction Machinery:

Equipment like excavators, loaders, and cranes operate under heavy loads and impacts, necessitating stable pressure for normal operation.

3. Hydraulic Test Benches:

Used for performance testing and experimentation of various hydraulic components and systems, precise pressure control is essential to ensure accurate test results.
