PCM Prepainted Galvanized Steel for Home Appliance

7 month ago

25 0

CHANGZHOU JIAYE NEW MATERIALS CO., LTD.

 13 month year

Product details

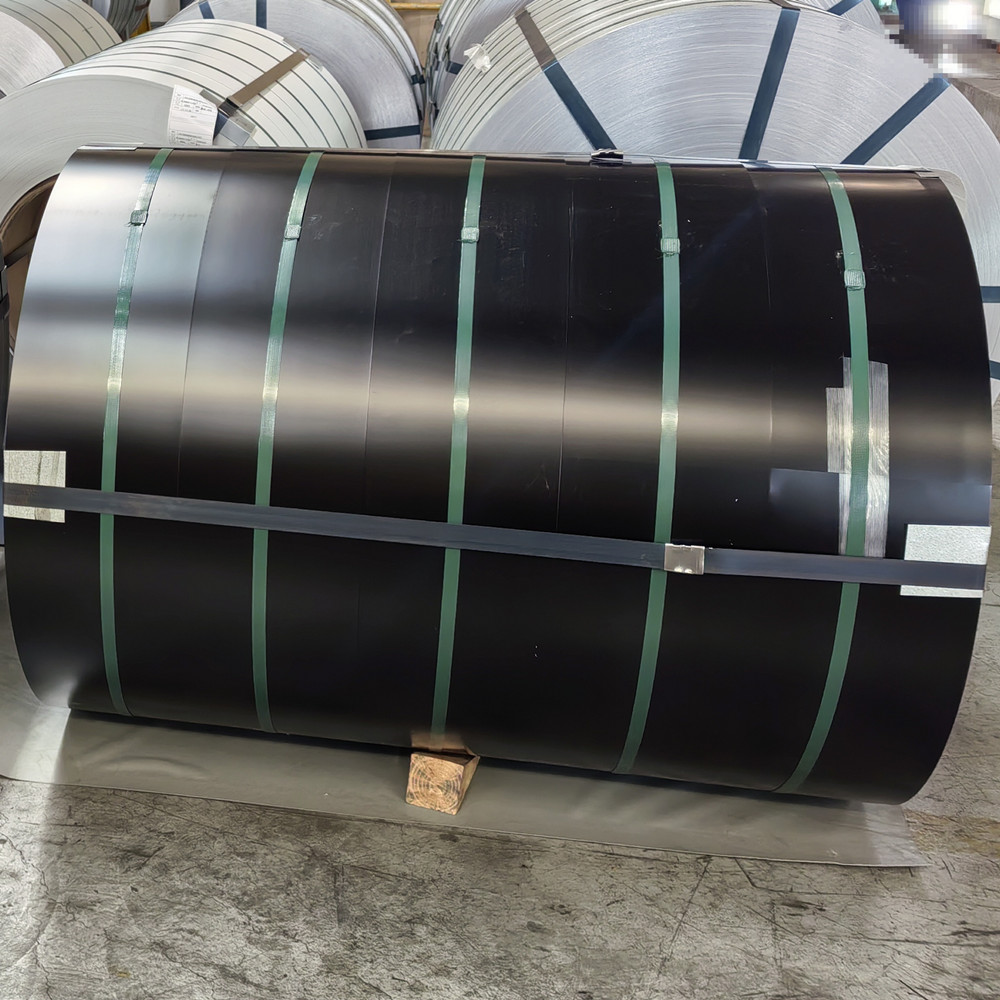

DX54D Ddouble side 9005 galvanized Steel Coil

The designation “DX54D + Z90” refers to a hot-dip galvanized steel substrate according to EN 10346, where “DX54D” specifies the steel grade and “Z90” indicates the zinc coating mass. ‌Steel Grade DX54D‌ is defined as a deep-drawing grade for cold forming. Its mechanical properties typically include a yield strength (Re) of 140–220 MPa, tensile strength (Rm) of 270–350 MPa, and an elongation (A80) of ≥36%. These properties are achieved through a specific chemical composition (low C, Al-killed) and processing (continuous annealing), ensuring excellent formability for complex shapes without cracking. ‌Coating Designation Z90‌ signifies a total zinc coating mass of 90 g/m² per side (minimum average value per EN 10346). This is often expressed commercially as “Z90” or “90/90” (both sides). The coating structure consists of a pure zinc layer (eta phase) and an iron-zinc alloy layer (delta and gamma phases). A Z90 coating provides a baseline corrosion protection, with the time to red rust onset in standard atmospheric environments estimated theoretically based on zinc's sacrificial protection (approx. 1.4 μm/year zinc loss in rural atmosphere). For prepainted applications (PPGI), this substrate undergoes chemical pretreatment (e.g., chromate-free conversion coating) to ensure paint adhesion. The combination of DX54D's formability and Z90's corrosion resistance makes it suitable for applications requiring moderate forming and standard corrosion protection, such as certain appliance panels, indoor structural parts, or components that will receive additional coating (e.g., post-painting). It is less common for severe forming (where DX54D+Z60 might be used) or highly corrosive environments (where higher coating masses like Z180 or aluminum-zinc coated AZ150 are preferred)

Grade	DX51D, DX53D, DX54D, S350GD, G550,Alloy,Stainless,etc
Base Material	30-275g/m²; Aluminum: A1, A3, A5 A6, etc, Stainless: 201, 304, 316, 316L, 430 etc
Thickness & Width	Thickness 0.15-3.0MM Width ≤2500MM
Paint & Film	PE, SMP, HDP, PVDF
Processing Service	Protective Film if need, making pipes, cutting sheets, making corrugated sheets,fence sheets etc.
Color & Grian	RAL Color PPGI/PPGL/PPAL/Stainless, Surface as Matt Anti Scratch etc. Grain as 2d 3D Wooden,Stone, Brick,Brushed, Rusted, Granited ,Camoufalge series etc.
Color & Grian	Laminated PP/PET/PVC Sarin Membrane Film steel & Ahumimum & Stainless，Surface Color and Texture as RAL Color,Wood, Marble,Stone, Brushed, Flower, and other Customized Texture Grain etc.

Our product series includes PPGI/PPGL Steel for durable roofing, Prepainted Aluminum with superior corrosion resistance, Prepainted Stainless for high-hygiene environments, Printed Grain Metal mimicking natural wood aesthetics, Galvanized Steel Parts for structural integrity, Aluminum Parts in lightweight assemblies, Stainless Parts in aggressive conditions, Forming Sheet for complex profiles, Roofs Sheets with weatherproof performance, Fence Sheets offering secure boundaries, Metal Screws engineered for fastening reliability, Standard parts ensuring interchangeability, Non-standard parts tailored to custom designs, Metal Roofs with long-term durability, Curtain wall systems for modern facades, Metal fence for security and style, Prefab House modules for rapid deployment, Water Tank solutions with leak-free integrity, Gutter systems for efficient drainage, and Wall Panel assemblies for seamless cladding.

Exterior Applications

Exterior Applications:
Metal for Roofing Sheet,Photovoltaic Foof panels,Anti-corrosion and heat insulation film steel tiles，Cladding Wall,Aluminum Wall Plate,Curtain Wall, APC Panel, Honeycomb Panel,Currguated Sheet,Metal for Granny Flat, Mobile Homes，Sandwich Panels,Garden Guardrail,Garden Water Tank,Garden Tool Room，Outdoor Tent，aluminum Awning, Metal Kiosk,Modular Hunting Blind;Metal for Aluminum Gutter System, Fence Sheet,Ceiling Sheet；Metal for Garage Doors, Rolling Shutter Door，Flap Door，Swimming Pool side Panels,Stainless Pipe with Surlyn Film Coated, , Billboard, Light Box,Camping Table， and other Architectural Metals.

Interior Applications

Interior Applications:
Metal for Cabinet Doors，Furniture doors， Fire Doors，Interior Doors，Medical Door；Metal for Wall Panel,Metal Railing, Elevator car，Ceiling sheets, Integrated Furniture,Cupboard Panel；Metal for Display Shelves，Aluminum Square Tube，Office Desk & Chair, Curtain Rod, Wrinting board ；Metal for Fridge Panel, Freezer Board，Solar Water Heater，Heater Cover，Industrial air cooler, Air Conditioner Casing，Metal Heating Plate，Cooling fan cover,Lamp cover，and other decoration used.
