Product details

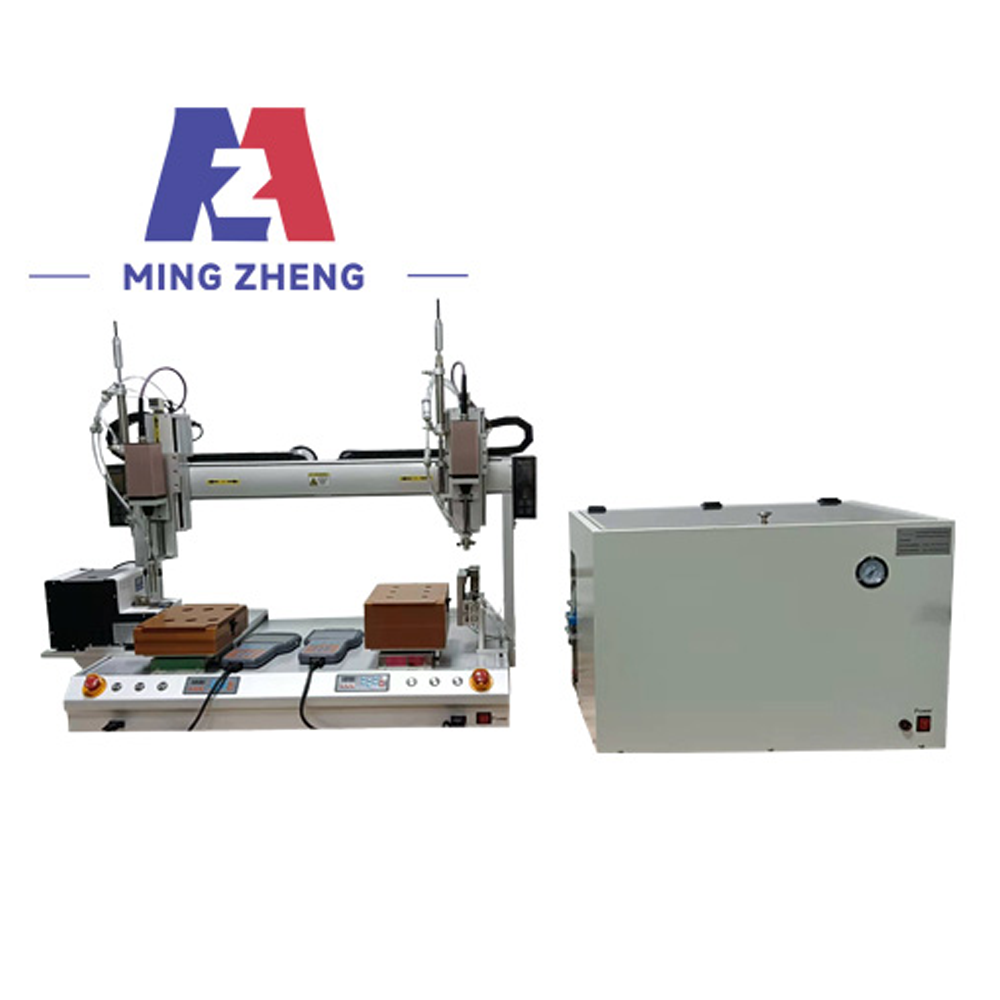

Dual Head Dual Station Automatic Screw Tightening Machine

Dual Station Design for Faster Screw Locking Production

The dual station screw locking robot is designed for manufacturers who need faster and more stable screw fastening in daily production. This desktop automatic system uses two working stations to keep the process running continuously. While one station is tightening screws, the other station can load products or prepare the next operation, reducing waiting time and improving overall production efficiency.

Auto Screw Locking Machine Specifications	CT-481-2XYZ
Model	CT-481-2XYZ
Travel Range X/Y/Z (mm)	400 × 800 × 50
Max. Workpiece Size X/Y (mm)	Left Station: 220×800; Right Station: 220×800
Max. Load Y/Z	8 kg / 4 kg
Moving Speed X&Y/Z (mm/sec)	0.1 ~ 800 / 600
Repeatability	±0.02 mm
Control System	Minjie Automatic Screw Locking Control System
Motor System	Japan Imported Micro-Step Precision Motor
Program Storage / Max. Points per Program	1000 programs / 4000 points
Transmission System	Taiwan Imported Linear Guide + American Gates Timing Belt
Input Power	Full Voltage AC220V 50/60Hz
Applicable Torque Range	0.5~45 kgf·cm
Applicable Screw Size	M1.0-M5.0
Thread Stripping Alarm	Yes
Missing Screw Alarm	Yes
Parts Counting Function	Yes
Torque Not Reached Alarm	Yes
Overall Dimensions (W×D×H, mm)	620 × 1085 × 622

Unlike traditional manual assembly, this machine allows workers to complete loading and unloading while the equipment handles screw tightening automatically. The automatic screw fastening machine can replace repetitive manual work, helping factories reduce labor pressure and keep every locking process consistent. It is widely used for electronic products, small appliances, smart devices, and other precision assembly applications.

Flexible Two-Head Locking for Different Screw Requirements

The machine is equipped with dual screwdrivers that work together through an intelligent control system. When one product requires different screw types, such as different sizes, lengths, or torque requirements, the equipment can complete the whole locking process in one operation without changing fixtures or repeating production steps.

As a professional automatic screw locking machine, it supports customized fixtures according to different products and assembly conditions. The system can also connect with imported screw feeding systems and high-quality electric screwdrivers to ensure smooth screw supply and stable operation. For more complex production needs, it can be expanded with smart control modules and additional devices.

Smart Control Improves Production Management

This equipment provides real-time production monitoring and data management functions, allowing operators to check output, efficiency, and machine status easily. The intelligent system can detect problems such as stripped screws, missing screws, and floating screws, then send alarms to reduce defective products during mass production.

Compared with a standard electric screw driver machine, this dual-station solution provides higher automation and better production flexibility. It can also work together with a screw machine system or other assembly equipment to create a more efficient production line.

Why Choose Mingzheng?

Mingzheng specializes in customized automation solutions for different industries. We provide equipment design, fixture development, production support, and technical service based on customer requirements. Whether you need a desktop screw locking solution or a complete automated assembly upgrade, our engineering team can help you build a reliable and efficient manufacturing process. Contact Mingzheng today to discuss your project needs.
