Product details

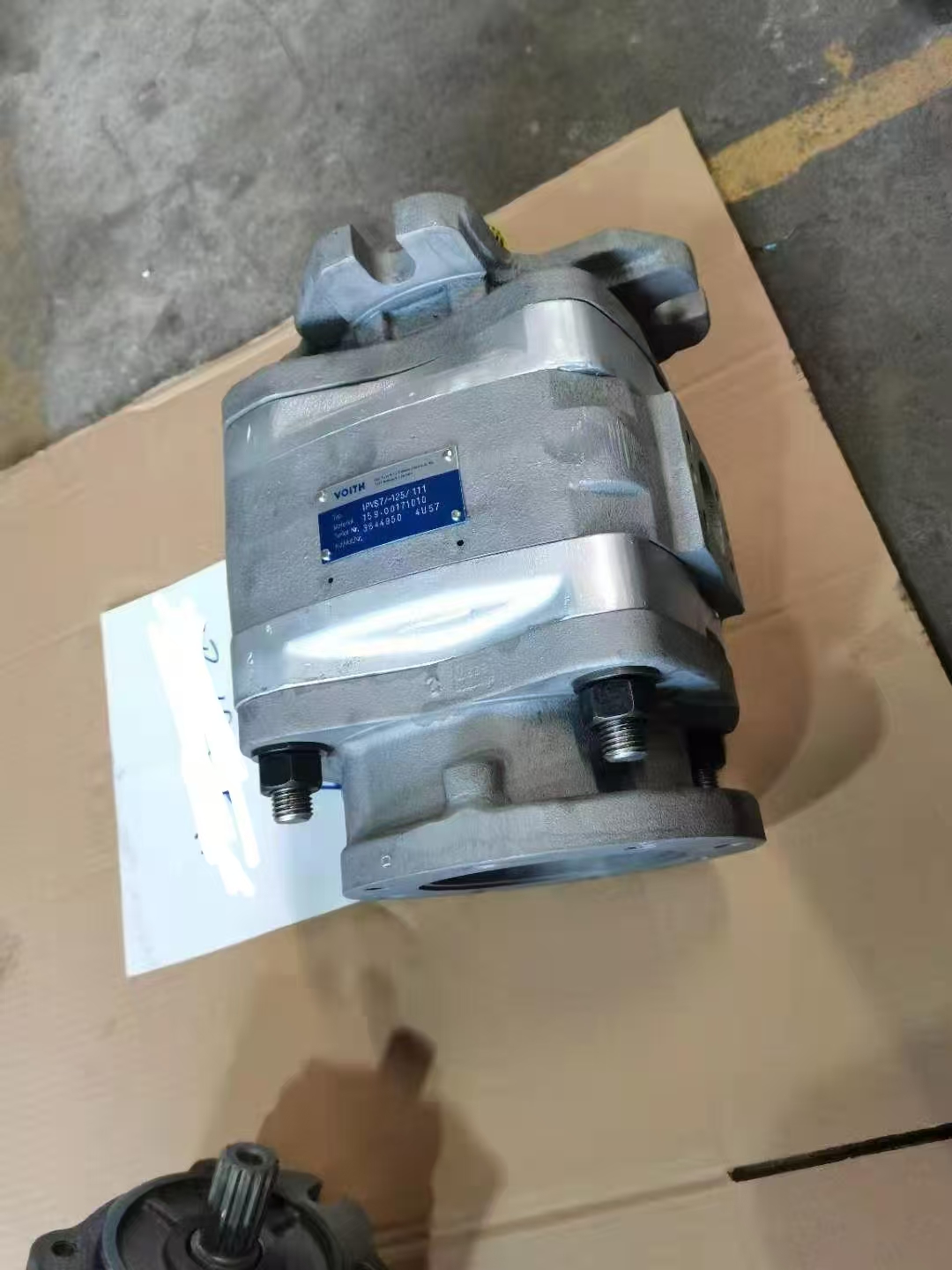

VOITH High-pressure Internal Gear Pump IPVS7-125-111 - Detailed Information

I. Product Features

1. High Efficiency:

• High Volumetric Efficiency: The VOITH IPVS7-125-111 gear pump utilizes advanced clearance compensation devices and optimized involute gear designs, achieving a volumetric efficiency of over 93%.

• High Overall Efficiency: The pump also demonstrates excellent overall efficiency, maintaining stable performance under high pressure.

2. Low Noise and Low Pulsation:

• Low Noise: Noise testing (DIN45635, SHEET26) indicates levels below 66dB, making it ideal for quiet working environments.

• Low Pulsation: Pressure testing (280bar) shows an average pulsation below 2%, ensuring smooth machine operation and extending service life.

3. Compact Structure and Strong Durability:

• Compact Design: The pump features a compact design with a lightweight build, facilitating easy installation and maintenance.

• Strong Durability: The internal two-piece eccentric clearance design enhances radial compensation, allowing the pump to operate stably under high pressure. Additionally, forced lubrication of sliding components minimizes wear, increasing the pump's lifespan.

4. Multi-Pump Combination Applications:

• The VOITH IPVS7-125-111 gear pump can be combined with other series gear pumps to meet the connection requirements of medium- and low-pressure series pumps.

II. Technical Specifications

1. Model: IPVS7-125-111

2. Pressure Rating: High Pressure

3. Displacement: The specific displacement may vary depending on the model and configuration, but it generally falls within the medium displacement range, suitable for various hydraulic systems.

4. Rotational Speed: The rated rotational speed is typically 1500r/min, but it can be adjusted according to actual requirements.

5. Material: The pump body is made of cast iron, offering high strength and excellent shock absorption properties.

III. Application Areas

The VOITH IPVS7-125-111 gear pump is widely used in the following fields:

1. Plastic Machinery: Such as injection molding machines and rubber plate vulcanizing machines.

2. Mining Machinery: Such as brick presses and punching shears.

3. Metallurgical Machinery: Hydraulic systems in various metallurgical equipment.

4. Petrochemical Machinery: Such as die-casting machines.

5. Precision Machine Tools: Machine tool equipment requiring high-precision hydraulic control.

6. Marine Industry: Hydraulic transmission in ship power systems.

7. Other Fields: Such as lifting equipment, environmental protection and energy-saving devices, and other industrial and engineering machinery fields.

Long life

• High volumetric efficiency

• High overall efficiency

• Very low pump flow and pressure pulsation

• Low noise level

• Compact dimensions

• Low weight

• Large speed range

• Very good suction properties

• Wide range of acceptable viscosities

• Simple maintenance

• Multiple pumps and pump combinations are possible

• Suitable for variable-speed drives (variable volume flow!)

• Motor operation possible (energy recovery!)
