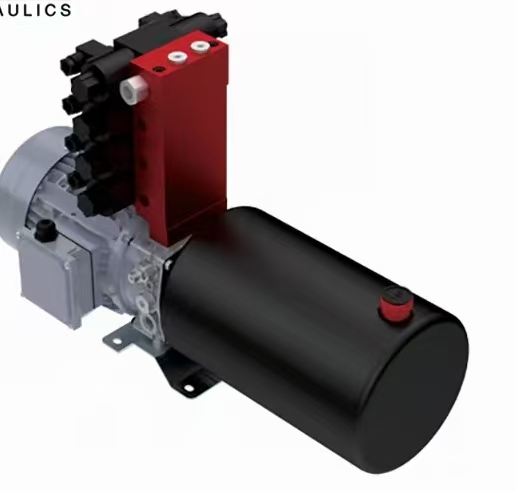

Power Unit TYRE CHANGERis a hydraulic power system specifically designed for tyre changers. Its core function is to provide stable and controllable hydraulic power for various operations of the tyre changer, such as clamping, pressing, and rotating tyres. Below is the detailed content:

I. Core Functions

1. Hydraulic Power Output: The motor drives the hydraulic pump to pressurize the hydraulic oil and deliver it to the actuator (such as hydraulic cylinders or hydraulic motors) of the tyre changer, enabling actions such as clamping, releasing, pressing, and rotating tyres.

2. Pressure and Flow Control: Equipped with pressure regulating valves and flow control valves, it can precisely adjust the pressure and flow rate of the hydraulic system according to the different operational requirements of the tyre changer, ensuring operational stability and safety.

3. Direction Control: The directional control valve switches the flow direction of the hydraulic oil, thereby controlling the forward/reverse rotation or extension/retraction of the actuator in the tyre changer, meeting various operational needs during tyre changing.

II. Technical Parameters

1. Motor Parameters:

• Voltage: Typically 380V (three-phase power), with 220V (single-phase power) also available to accommodate different power supply environments.

• Power: Motor power ranges from 0.75kW to 4.0kW, depending on the specifications and operational requirements of the tyre changer.

• Speed: Generally 1440rpm (for 50Hz power supply) or 1750rpm (for 60Hz power supply), ensuring efficient operation of the hydraulic pump.

2. Hydraulic Pump Parameters:

• Displacement: Ranges from 0.75cc/r to 8cc/r, with the appropriate displacement selected based on the operational requirements of the tyre changer.

• Pressure: The maximum working pressure can reach 20MPa, meeting the high-pressure demands during tyre changing.

3. Tank Parameters:

• Capacity: Ranges from 1.0L to 40L, with the appropriate tank capacity selected based on the frequency of use and the demands of the hydraulic system in the tyre changer.

• Material: Typically made of steel or plastic, ensuring durability and sealing performance of the tank.

4. Installation Methods:

• Horizontal installation, vertical installation, or sideways horizontal installation, to accommodate the spatial layout and installation requirements of different tyre changers.

III. Application Scenarios

1. Automobile Repair Shops: Used for quickly and safely changing tyres of various models, improving repair efficiency.

2. Tyre Sales Stores: Provides tyre installation and removal services for customers, enhancing customer satisfaction.

3. Fleet Maintenance Centers: Used for large-scale tyre changing and maintenance of engineering vehicles and agricultural machinery, reducing labor intensity and improving work efficiency.

4. Industrial Sector: Suitable for tyre changing of large equipment such as construction machinery and agricultural machinery, meeting special operational requirements.

IV. Advantages and Features

1. Efficiency and Energy Conservation: Adopts high-efficiency motors and hydraulic pumps to reduce energy consumption and improve energy utilization.

2. Stability and Reliability: The hydraulic system is carefully designed and debugged to ensure long-term stable operation and reduce failure rates.

3. Easy Operation: Equipped with an intuitive control panel and operation buttons, facilitating quick user familiarization and operation.

4. Convenient Maintenance: The hydraulic system has a simple structure, making it easy to disassemble and repair, reducing maintenance costs.
