Product details

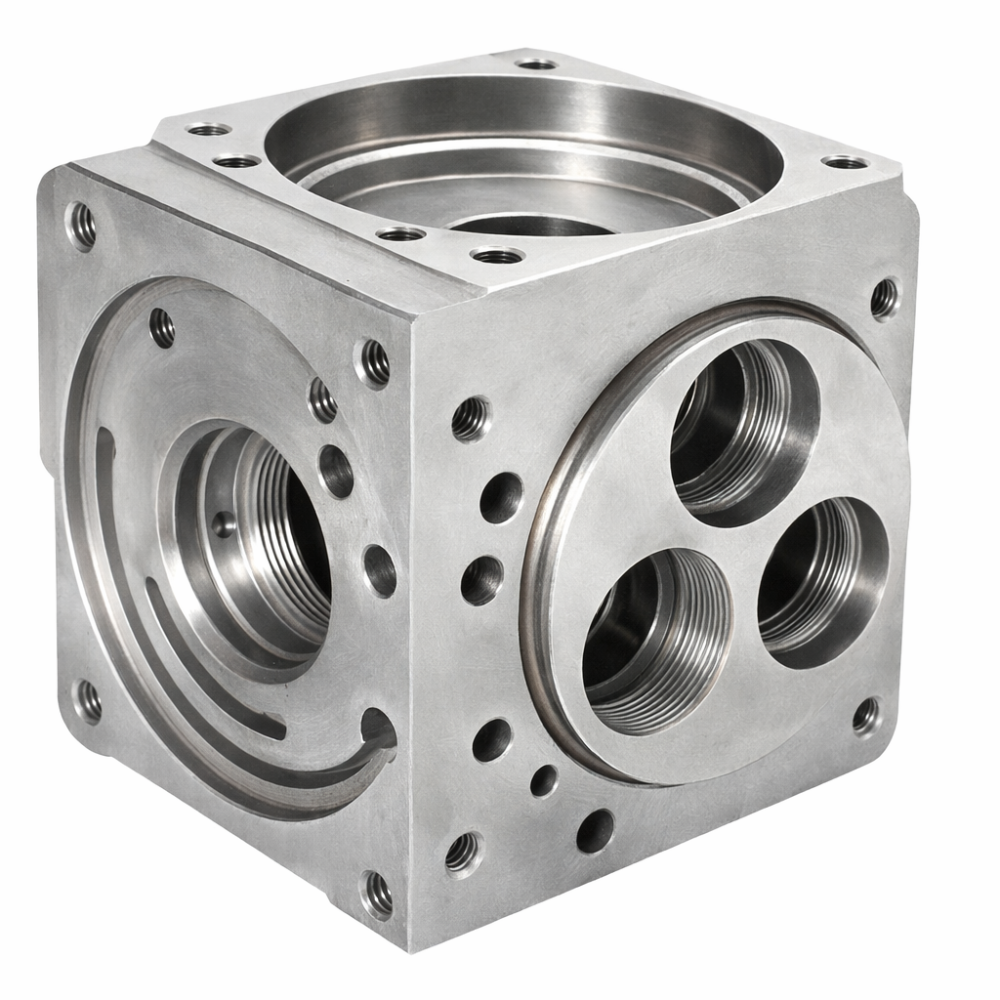

Hydraulic Manifold Block CNC Machining Capability

Hydraulic manifold blocks are the core components of modern fluid power systems. They integrate multiple oil passages, threaded ports, and sealing surfaces into one compact structure to control pressure, direction, and flow distribution.

We specialize in precision CNC machining of aluminum and steel hydraulic manifold blocks, delivering high dimensional accuracy, leak-free performance, and stable quality for industrial, agricultural, and heavy-duty hydraulic applications.

From prototype to mass production, we provide complete one-stop manufacturing solutions.

What Is a Hydraulic Manifold Block?

A hydraulic manifold block (also called valve block or valve housing) is a multi-port control component that connects pumps, valves, actuators, and pipelines into a single integrated module.Instead of using multiple external pipes and fittings, manifold blocks:

Reduce leakage points
Improve system reliability
Save installation space
Increase pressure resistance
Simplify maintenance

They are widely used in compact and high-performance hydraulic systems.

Critical Precision Control

Hydraulic blocks demand extremely high accuracy to prevent leakage and pressure loss.Typical tolerances we achieve:

Position tolerance: ≤ 0.05 mm
Flatness: ≤ 0.02–0.03 mm
Perpendicularity: ≤ 0.03 mm
Coaxiality: ≤ 0.03–0.05 mm
Surface roughness: Ra ≤ 1.6 μm

Precise alignment of intersecting holes is strictly controlled to ensure proper oil flow.

Quality Control & Testing

Every hydraulic manifold block undergoes strict inspection:

Incoming material verification
First article inspection (FAI)
In-process dimensional checks
CMM measurement
Thread gauge inspection
Burr-free internal passage inspection
Air / water leak testing
Final visual and functional checks

Leak testing is available for 100% inspection upon request.

Why Choose Our CNC Machining Service

Extensive experience with hydraulic manifold blocks
Multi-axis CNC machining capability
Strict leak-proof quality control
Cost-effective manufacturing
Engineering support for design optimization
Reliable global export service

We help customers reduce system complexity and improve hydraulic performance.

If you are sourcing hydraulic manifold blocks, valve housings, or fluid control blocks, we provide precision machining, stable quality, and competitive pricing to support your project.
