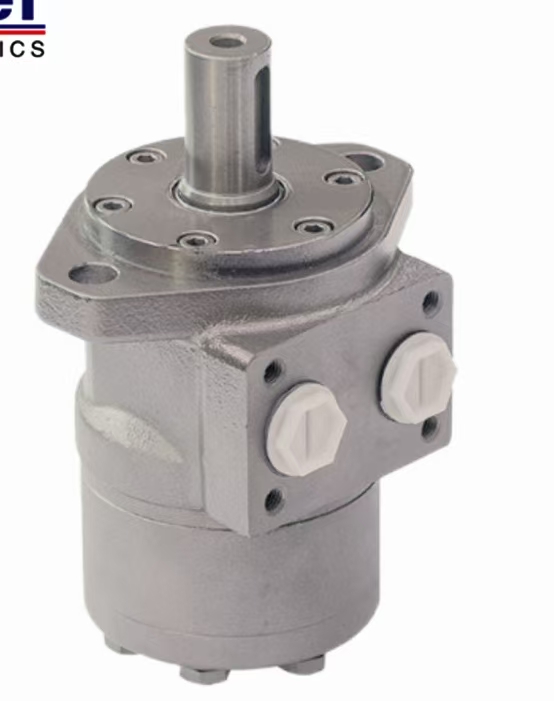

Orbit Hydraulic Motor BH50-400

Orbit Hydraulic Motor BH50-400

3 week ago

2 0

Ningbo Hengnuo Hydraulic Drive Co.,Ltd

 4 year year

Product details

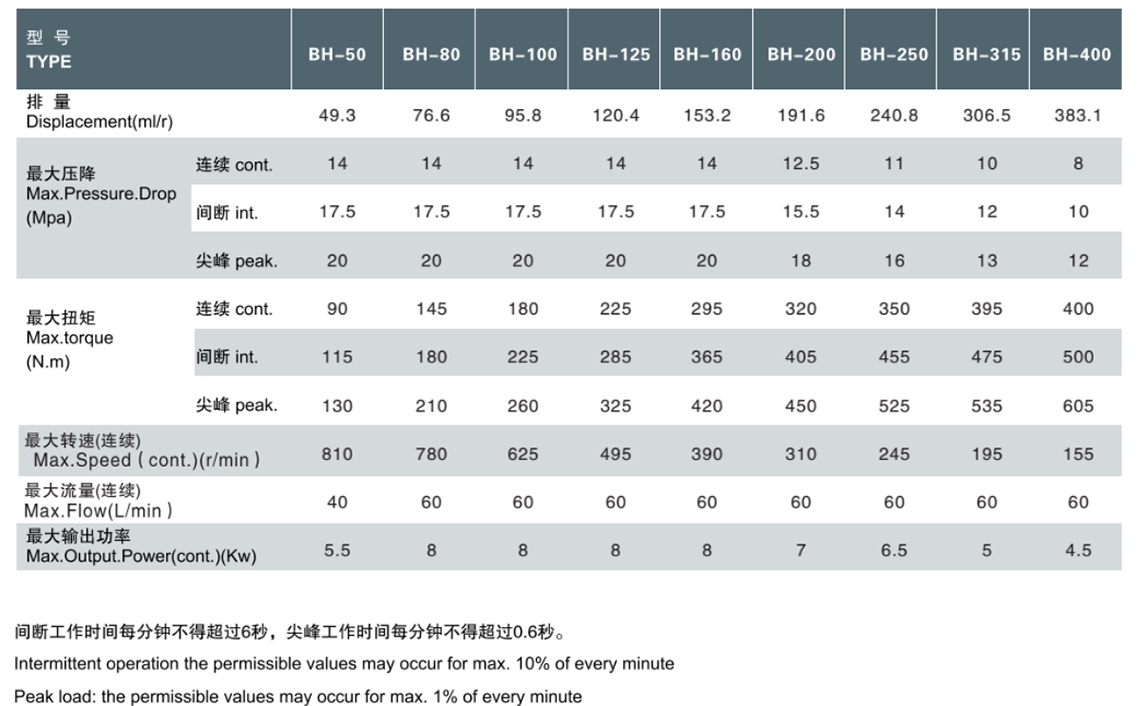

Basic Specifications and Performance Parameters

1. Displacement Range:

The BH50-400 model offers a displacement range from 50 cc/rev to 400 cc/rev, depending on the manufacturer's design. For example, the BMS series orbital hydraulic motors provide displacement options ranging from 80.5 cc/rev to 471.1 cc/rev, while the BMT series includes models with displacements from 161.1 cc/rev to 801.8 cc/rev.

2. Pressure Ratings:

• Continuous Working Pressure: Typically 17.5–20 MPa (some models can reach a peak pressure of 22.5 MPa).

• Peak Pressure: Certain models support short-term peak pressures of up to 28 MPa for high-load applications.

3. Torque Output:

• Continuous Torque: Ranges from 178 N·m (for 50 cc models) to 1,464 N·m (for 400 cc models).

• Peak Torque: Some models can deliver up to 1,665 N·m for short-term high-load demands.

4. Speed Range:

• Continuous Speed: The 50 cc model can reach up to 850 rpm, while the 400 cc model typically operates at 154–196 rpm.

• Intermittent Speed: Some models support intermittent operation at speeds ranging from 780–956 rpm, suitable for variable-load scenarios.

------

Structural and Design Features

1. Valve Distribution System:

Utilizes disc valve or axial distribution designs to ensure precise oil distribution and efficient operation. For instance, the BMS series employs a disc valve structure, while the BMT series adopts axial distribution technology.

2. Bearing Configuration:

Equipped with tapered roller bearings capable of withstanding high radial and axial loads, extending service life.

3. Sealing Technology:

High-pressure shaft seals are designed to withstand high backpressure, preventing oil leakage and ensuring system stability.

4. Installation Flexibility:

Offers various flange and shaft options (e.g., square flanges, cylindrical shafts, splined shafts) for easy adaptation to different equipment.

------

Application Areas

1. Construction Machinery:

Rotary and travel drives for excavators, cranes, concrete pump trucks, and other equipment.

2. Agricultural Machinery:

Hydraulic transmission systems for combine harvesters, tractors, seeders, and other agricultural equipment.

3. Industrial Equipment:

Low-speed, high-torque applications such as conveyors, drilling rigs, winches, and die-casting machines.

4. Marine Equipment:

Hydraulic systems for steering gears, anchor winches, capstans, and other marine applications.

------

Typical Model Examples

1. BMS Series:

• Model: BMS-400

• Displacement: 401.9 cc/rev

• Continuous Pressure: 16 MPa

• Continuous Torque: 636 N·m

• Continuous Speed: 180 rpm

• Weight: 13.1 kg

2. BMT Series:

• Model: BMT-400

• Displacement: 410.9 cc/rev

• Continuous Pressure: 20 MPa

• Continuous Torque: 1,080 N·m

• Continuous Speed: 196 rpm

• Weight: 22 kg

3. OMT Series:

• Model: OMT-400

• Displacement: 410.9 cc/rev

• Continuous Pressure: 20 MPa

• Continuous Torque: 1,080 N·m

• Continuous Speed: 196 rpm

• Weight: 22 kg
