I. Product Overview

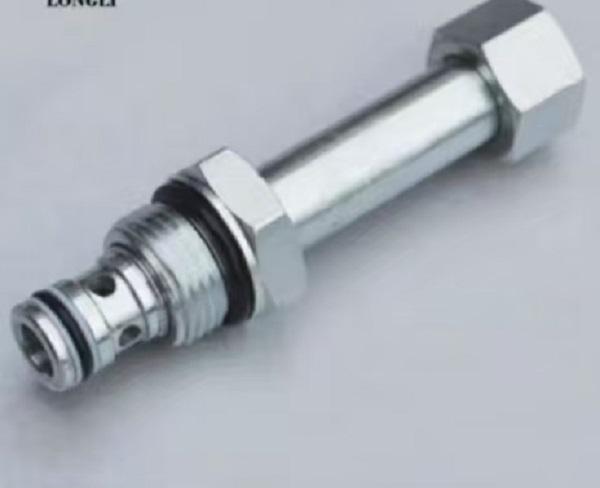

TheDHF08-228 Two-Way Two-Position Directional Spool-Type Thread Cartridge Valveis a critical control component widely used in hydraulic systems. It primarily functions to regulate fluid direction, pressure, and flow. Featuring a threaded cartridge design, it offers compact structure, easy installation, and excellent sealing performance, making it suitable for various hydraulic equipment and construction machinery.

------

II. Key Features

1. Two-Way, Two-Position Design

• The valve has two operating positions (open/closed) and two oil ports, enabling precise on/off control of fluid flow.

2. Directional Spool Structure

• Fluid direction is controlled by sliding the spool, allowing for flexible flow path adjustments.

3. Threaded Cartridge Installation

• Threaded connections facilitate quick assembly and disassembly while saving space.

4. High-Quality Materials

• The valve body is typically made of carbon steel or alloy steel, ensuring excellent pressure resistance and corrosion resistance.

5. Reliable Sealing

• Advanced sealing technology and materials prevent leakage even under high-pressure conditions.

6. Multiple Specifications Available

• Various sizes and models are offered to meet different flow and pressure requirements.

------

III. Applications

The DHF08-228 valve is widely used in:

1. Construction Machinery

• Excavators, loaders, cranes, etc., for controlling hydraulic cylinder movements and directions.

2. Aerial Work Platforms

• For platform lifting and telescoping operations.

3. Agricultural Machinery

• Tractors, harvesters, etc., for managing hydraulic system actions.

4. Industrial Automation Equipment

• Hydraulic presses, injection molding machines, etc., for regulating fluid direction and pressure.

------

IV. Technical Specifications

(Note: Parameters may vary by manufacturer and model.)

• Nominal Port Size: 8 mm (or other sizes)

• Maximum Operating Pressure: 250 bar (or other pressure ratings)

• Maximum Flow Rate: 40 L/min (or other flow values)

• Operating Temperature Range: Typically for ambient conditions (refer to manufacturer’s guidelines)

• Connection Type: Threaded

------

V. Selection & Usage Guidelines

1. Selection Considerations

• Choose the appropriate size and model based on actual system requirements.

• Verify that the valve’s pressure, flow, and temperature ratings align with system demands.

• Opt for reputable brands and manufacturers to ensure quality and after-sales support.

2. Usage Precautions

• Ensure system cleanliness before installation to prevent contamination from entering the valve.

• Follow the manufacturer’s installation instructions for proper setup and commissioning.

• Regularly inspect the valve for sealing integrity and operational status; replace worn seals or components promptly.

• Avoid overloading or exceeding pressure limits during operation to extend service life.
